Output Shaft Seal: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

    Rear Wheel Drive (RWD) vehicles

  2. Remove the rear driveshaft. Refer to: Rear Driveshaft .
  3. Remove the stakes from the output shaft flange retaining nut. Use the General Equipment: Punch
    GFD559580Courtesy of FORD MOTOR COMPANY
  4. Remove and discard the output shaft flange nut.

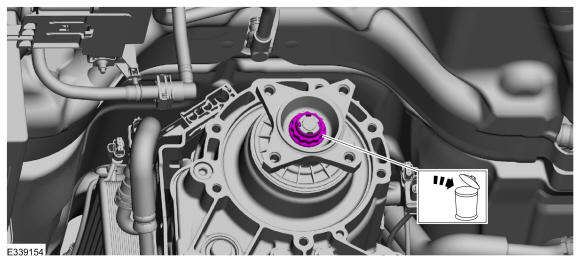

    GFD559581Courtesy of FORD MOTOR COMPANY
    1. Index mark the output shaft to the flange.
    2. Remove the output shaft flange.

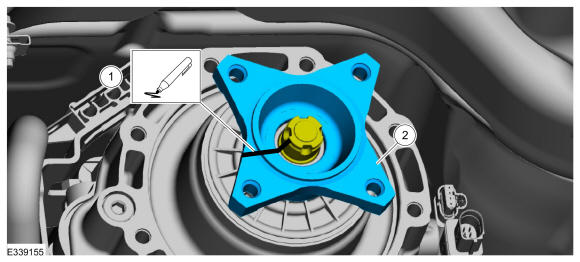

    GFD559582Courtesy of FORD MOTOR COMPANY

    Four-Wheel Drive (4WD) vehicles

  6. Remove the transfer case assembly. Refer to: Transfer Case .

    All vehicles

  7. Using the special tools, remove and discard the output shaft seal (7052). Use Special Service Tool: 100-001 (T50T-100-A) Slide Hammer., 307-309 Remover, Torque Converter Seal.

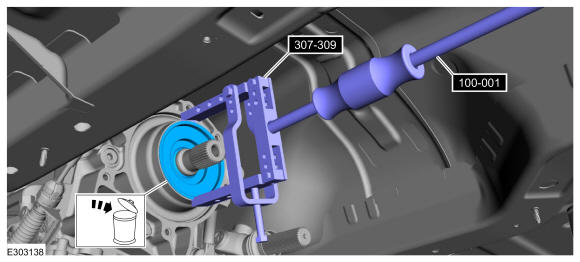

GFD559583Courtesy of FORD MOTOR COMPANY
