Engine Disconnect Clutch Pressure Sensor: Installation
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Lubricate the O-ring seal.
Material
: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

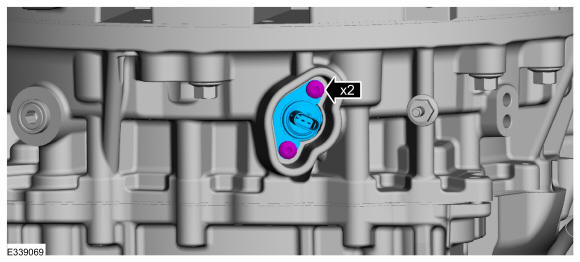

- Install the engine disconnect clutch pressure sensor and the bolts.
Torque: 71 lb.in (8 Nm)

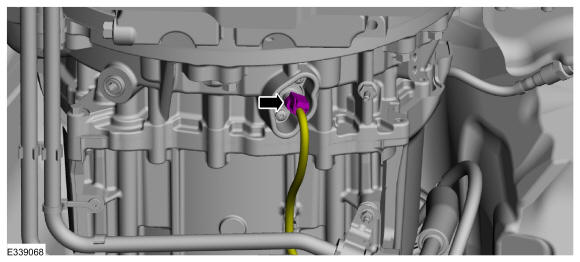

- Connect the engine disconnect clutch pressure sensor electrical connector.

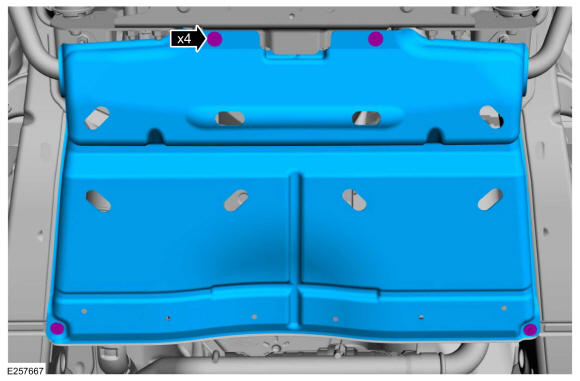

- Install the splash shield and the retainers.
