Transmission Fluid Drain and Refill

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s) / General Equipment

Fluid Suction Gun
Universal Fluid Dispenser

Materials

Name	Specification
Motorcraft® MERCON® ULV Automatic Transmission FluidXT-12-QULV	WSS-M2C949-A, MERCON® ULV

Draining

NOTE: It is not necessary to remove the transmission fluid filter to drain the transmission fluid.

Remove the transmission fluid pan to drain the transmission fluid. Refer to: Transmission Fluid Pan, Gasket and Filter .

Filling

NOTE: This procedure is NOT intended for use with the transmission fluid level check.

NOTE: The vehicle should not be driven if the transmission fluid level is low, internal failure could result.

NOTE: Using any transmission fluid other than what is specified can result in the transmission not operating normally or premature transmission failure.

NOTE: Check the transmission fluid level if the transmission starts to slip, shifts slowly or shows signs of transmission fluid leaking.

Adding 4.8L (5 qt) of transmission fluid is an initial fill enabling the engine to be started.

Filling the transmission to the transmission fluid level indicator area below the crosshatch mark allows the vehicle to be driven.

Drive the vehicle to allow the transmission fluid temperature to reach 96 deg.C - 101 deg.C (206 deg.F - 215 deg.F) in order to purge the air from the transmission fluid cooling system.

Fill the transmission fluid to the fill range on the transmission fluid level indicator at the normal operating temperature 96 deg.C - 101 deg.C (206 deg.F - 215 deg.F).

Remove the transmission fluid fill plug and remove the transmission fluid level indicator from the plug.

Courtesy of FORD MOTOR COMPANY
NOTE: Add 4.8L (5 qt) of transmission fluid to the transmission as an initial fill if:
- a new main control has been installed.
- the transmission fluid pan or transmission fluid filter have been removed.
NOTE: Add 5.7L (6 qt) of transmission fluid to the transmission as an initial fill if the transmission has been overhauled.

NOTE: The use of a pressurized fluid dispenser with 8-12 qt capacity such as the Mityvac MITMV6412, is recommended for this procedure.

Using the fluid dispenser, add the transmission fluid through the transmission fluid fill hole.
- Use the General Equipment: Universal Fluid Dispenser
  Material

  : Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)
Courtesy of FORD MOTOR COMPANY
1. Connect the diagnostic scan tool and monitor the transmission fluid temperature.
2. Start the engine.
3. Place the selector lever in each gear position, holding approximately 5 seconds in each position. Place the selector lever in PARK and allow the engine to idle at 600-750 rpm.
- Check the transmission fluid level using the transmission fluid level indicator.
Courtesy of FORD MOTOR COMPANY
NOTE: The vehicle can be driven when the transmission is cold provided the transmission fluid level is between the first hatch mark and 6 on the transmission fluid level indiator. Failure to add transmission fluid to this level can result in damage to the transmission.

Add transmission fluid until it reaches between the first hatch mark and 6 on the transmission fluid indicator.

Courtesy of FORD MOTOR COMPANY
Install the transmission fluid fill plug.
Torque: 35 lb.ft (47 Nm)

Courtesy of FORD MOTOR COMPANY
Test drive the vehicle. While driving the vehicle, use the scan tool to verify the transmission fluid has reached an operating temperature of 96 deg.C - 101 deg.C (206 deg.F - 215 deg.F). This circulates the transmission fluid through the torque converter and the transmission fluid cooling system, eliminating any trapped air in the transmission fluid cooling system. Place the vehicle in PARK and allow the engine to idle at 600-750 rpm. Verify the transmission fluid temperature is between 96 deg.C - 101 deg.C (206 deg.F - 215 deg.F) and lift the vehicle on a hoist. Refer to: Jacking and Lifting - Overview .
NOTE: The engine must be running continuously while the transmission fluid check is in progress.

Follow the steps below to enter the engine running diagnostic mode:
1. Place the vehicle in PARK.
2. Push the start button to enter the accessory mode.
3. Press the brake pedal and accelerator pedal together for 5 seconds.
4. Steps 5 and 6 should be performed within 15 seconds after completing Step 3.
5. Release both the accelerator and brake pedals.
6. Press the brake pedal and push the start button so that the vehicle is in drivable state.
7. Press the brake pedal and accelerator pedal together for 5 seconds.
8. NOTE: The READY TO DRIVE or DRIVE symbol should be flashing on the instrument cluster at a regular interval when the Engine Running diagnostic mode is active.

  When this sequence is complete, the vehicle enters the diagnostic mode and the engine should remain running continuously.
Remove the transmission fluid fill plug and remove the transmission fluid level indicator from the plug.

Courtesy of FORD MOTOR COMPANY

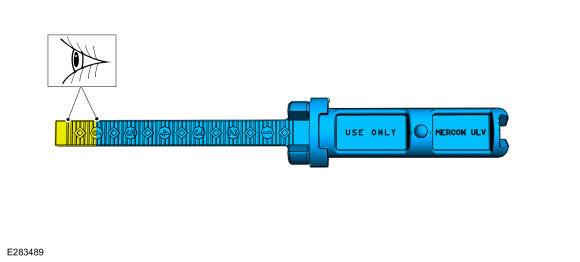

Check the transmission fluid level using the transmission fluid level indicator.

Courtesy of FORD MOTOR COMPANY
NOTE: The transmission fluid level indicator uses 1 through 6 to indicate the fluid level. The different numbers are for different vehicle models. Use the area between 3 and 4 when checking the transmission fluid level. The correct transmission fluid level is between 3 and 4 on the transmission fluid level indicator.

NOTE: Do not overfill the transmission.

Using the scan tool verify the transmission fluid temperature is between 96 deg.C - 101 deg.C (206 deg.F - 215 deg.F). The transmission fluid level must be between 3 and 4 on the transmission fluid level indicator.

Courtesy of FORD MOTOR COMPANY
NOTE: The use of a pressurized fluid dispenser with 8-12 qt capacity such as the Mityvac MITMV6412, is recommended for this procedure.

If the transmission fluid level is low, add transmission fluid using the fluid dispenser.
- Use the General Equipment: Universal Fluid Dispenser
  Material

  : Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)
Courtesy of FORD MOTOR COMPANY

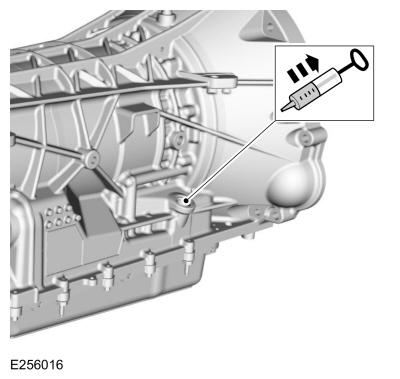

If the transmission fluid is overfilled, remove the transmission fluid with a fluid suction gun. Use the General Equipment: Fluid Suction Gun

Courtesy of FORD MOTOR COMPANY
Install the transmission fluid fill plug.
Torque: 35 lb.ft (47 Nm)

Courtesy of FORD MOTOR COMPANY

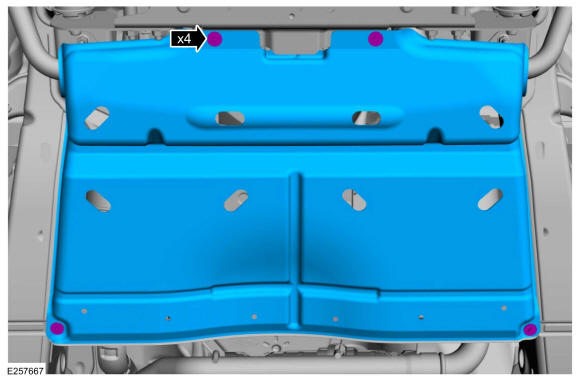

If equipped, install the shield and retainers.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
