Transmission Case

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING INFORMATION

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	204-594Forcing screw
Courtesy of FORD MOTOR COMPANY	307-744Remover, Output Shaft Bearing
Courtesy of FORD MOTOR COMPANY	307-819Receiver Cup

Remove and discard the park pawl actuator rod sleeve roll pin (7G100), move the park pawl out of the park pawl actuator rod sleeve and remove the park pawl actuator rod sleeve.

Courtesy of FORD MOTOR COMPANY
Remove and discard the park pawl actuator rod sleeve seals (2D330).

Courtesy of FORD MOTOR COMPANY
1. Remove the park pawl shaft plug.
2. Remove the rear case plugs.
3. Remove the line pressure port case plug.
Courtesy of FORD MOTOR COMPANY
1. Disconnect the park pawl return spring to remove tension from the park pawl shaft and remove the park pawl shaft.
2. Remove the park pawl.
3. Remove the park pawl return spring.
Courtesy of FORD MOTOR COMPANY

Four-Wheel Drive (4WD) vehicles

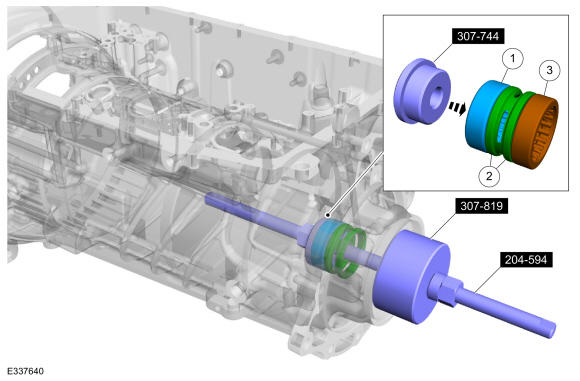

Using the special tools, remove the bearing(s) and the fluid passage sleeve.
1. Output shaft bearing (R2)
2. Fluid passage sleeve
3. Output shaft bearing (R3)
- Use Special Service Tool: 307-744 Remover, Output Shaft Bearing., 307-819 Receiver Cup., 204-594 Forcing screw.

Courtesy of FORD MOTOR COMPANY
