Engine Block Skirt Stiffener

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING INFORMATION

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-1677Locking Tool, Flywheel
Courtesy of FORD MOTOR COMPANY	303-1681Spreader Bar
Floor Crane
Mounting Stand

Materials

Name	Specification
Motorcraft® High Performance Engine RTV SiliconeTA-357	WSE-M4G323-A6
Motorcraft® SAE 5W-30 F-150 Diesel Motor OilXO-5W30-QFA	WSS-M2C214-B1

NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

NOTE: This procedure assumes the engine will be installed using the recommended body off engine installation procedure. If it will be necessary to install the engine using the alternate body on engine installation procedure, some of the components in this procedure should not be installed at this time. Refer to Engine - Body Off in this informaiton.

Install the engine block skirt stiffener alignment dowels.

Courtesy of FORD MOTOR COMPANY
NOTE: The engine block skirt stiffener and the bolts must be installed within 4 minutes of sealant application. Final tightening of the oil pan bolts must be carried out within 60 minutes of sealant application.

Apply a 8.0 mm bead of Motorcraft® High Performance Engine RTV Silicone to the T-joints.

Material

: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY
Install a new engine block stiffener gasket.

Courtesy of FORD MOTOR COMPANY
Install the engine block skirt stiffener and the bolts
Torque: Stage 1: 18 lb.in (2 Nm)

Stage 2: 89 lb.in (10 Nm)

Fig 1: Engine Block Skirt Stiffener Tightening Sequence
Courtesy of FORD MOTOR COMPANY
NOTE: The oil pan and the bolts must be installed within 4 minutes of sealant application. Final tightening of the oil pan bolts must be carried out within 60 minutes of sealant application.

Apply a 8.0 mm bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the oil pan.

Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY

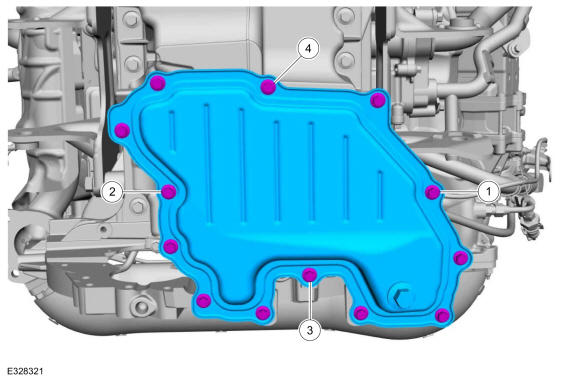

1. Install the oil pan and the 4 bolts. Tighten in the sequence shown.
  Torque: 89 lb.in (10 Nm)
2. Install the remaining bolts.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

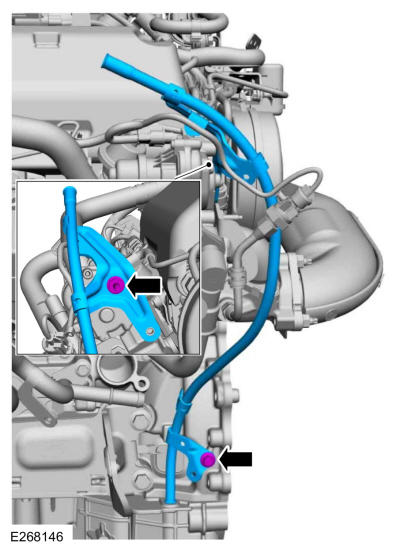

Install the oil level indicator, the stud bolt and the bolt.
Torque: Upper stud bolt : 89 lb.in (10 Nm) Lower bolt : 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the oil level indicator.

Courtesy of FORD MOTOR COMPANY
Connect the wire retainers to the oil level indicator tube.

Courtesy of FORD MOTOR COMPANY
Install the heat shield, the nut and the bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the wire retainers to the oil level indicator.

Courtesy of FORD MOTOR COMPANY

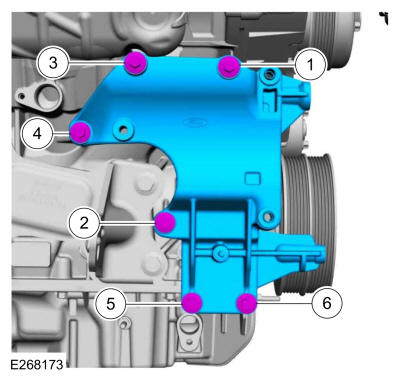

Install the A/C mounting bracket and the bolts.
Torque: Install and tighten bolts 1 and 2 to: : 17 lb.ft (23 Nm) Install and tighten bolts 3 and 4 to: : 17 lb.ft (23 Nm) Install and tighten bolts 5 and 6 to: : 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY

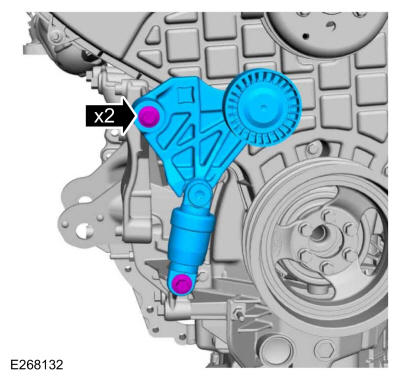

Install the accessory drive belt tensioner and the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

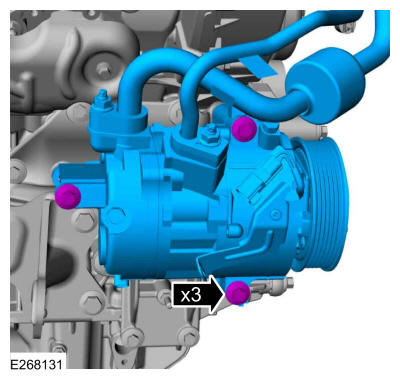

Install the A/C compressor and the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Fully seat the turbocharger oil return tube O-rings into the turbocharger and engine bore holes prior to fastener tightening.

Lubricate the turbocharger oil return tube with clean engine oil. Install the turbocharger oil return tube and the bolts.

Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

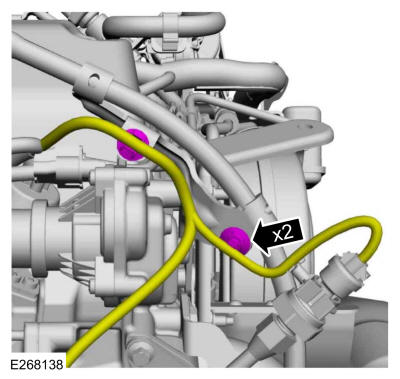

Install the battery cable harness and connect the wire harness retainer. Install the nuts.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

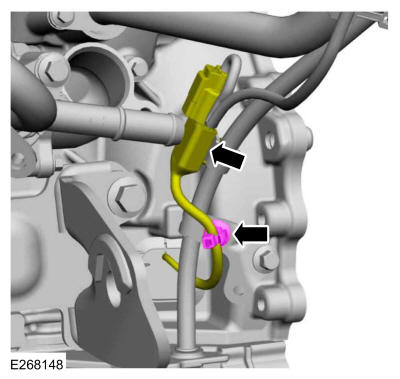

Connect the A/C electrical connectors and the wire retainer.

Courtesy of FORD MOTOR COMPANY
Install the coolant tube and the nut.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Position back and connect the coolant hose. Install the nut for the coolant hose bracket.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Install the bolt for the coolant tube.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
Install the floor crane and special tool. Use Special Service Tool: 303-1681 Spreader Bar. Use the General Equipment: Floor Crane

Courtesy of FORD MOTOR COMPANY
Using a floor crane and the special tool, remove the engine from the mounting stand. Use Special Service Tool: 303-1681 Spreader Bar. Use the General Equipment: Floor Crane Use the General Equipment: Mounting Stand

Courtesy of FORD MOTOR COMPANY
Install the flexplate and the bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: Only rotate the crankshaft clockwise.

Install the special tool and the bolts. Use Special Service Tool: 303-1677 Locking Tool, Flywheel.

Courtesy of FORD MOTOR COMPANY

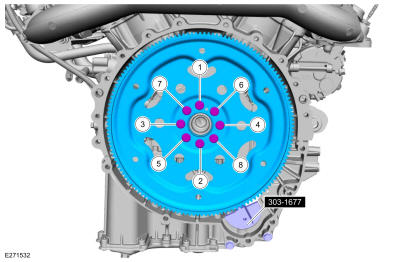

Tighten the flexplate bolts. Tighten in sequence shown. Use Special Service Tool: 303-1677 Locking Tool, Flywheel.
Torque: Stage 1: 37 lb.ft (50 Nm)

Stage 2: 45°

Stage 3: 45°

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the special tool. Use Special Service Tool: 303-1677 Locking Tool, Flywheel.

Courtesy of FORD MOTOR COMPANY
Install the engine into the vehicle. Refer to: Engine - Body On . Refer to: Engine - Body Off .
