Transmission Park Manual Release Cable: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1. Install the cable and connect the gromet.
2. Connect the cable retaining clip push pin behind the panel.
Courtesy of FORD MOTOR COMPANY
1. Install the lever assembly bolts.
  Torque

  : 33 lb.in (3.7 Nm)
2. Install the lever assembly push pins.
Courtesy of FORD MOTOR COMPANY
Install the lower steering column trim panel.

Courtesy of FORD MOTOR COMPANY
Release the clips to open the access panel, remove the bolts and the access panel.
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

Vehicles Without Floor Console
Install the lower instrument panel finish panel and bolt.
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

Vehicles with Floor Console
Install the floor console bolts.
Torque

: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the RH electrical connector.

Courtesy of FORD MOTOR COMPANY
Connect the LH electrical connector.

Courtesy of FORD MOTOR COMPANY
Install the floor console upper LH trim panel.

Courtesy of FORD MOTOR COMPANY
Install the floor console lower LH trim panel and the screw.
Torque

: 40 lb.in (4.5 Nm)

Courtesy of FORD MOTOR COMPANY
Install the floor console upper RH trim panel.

Courtesy of FORD MOTOR COMPANY
Install the floor console lower RH trim panel.

Courtesy of FORD MOTOR COMPANY

All vehicles
Connect the cable to the manual lever and bracket.

Courtesy of FORD MOTOR COMPANY

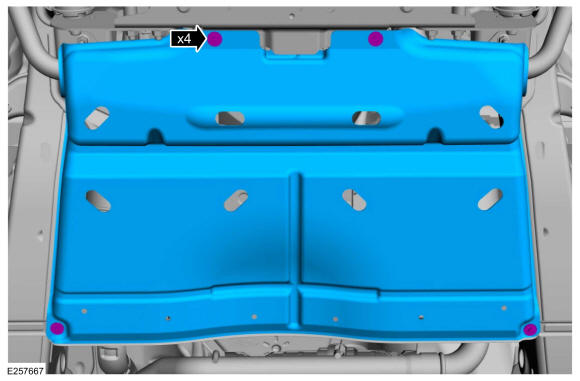

If equipped, install the splash shield and the retainers.
Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
