Gear Shift Module (GSM) - Vehicles With: Column Shift: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the vehicle in stay in neutral mode. Refer to: Stay in Neutral .
  2. Remove the steering column shrouds. Refer to: Steering Column Shrouds .
  3. Disconnect the GSM electrical connector.
    GFD559796Courtesy of FORD MOTOR COMPANY
  4. Remove the upper GSM bolts.
    GFD559797Courtesy of FORD MOTOR COMPANY
  5. Remove the lower GSM bolt.
    GFD559798Courtesy of FORD MOTOR COMPANY

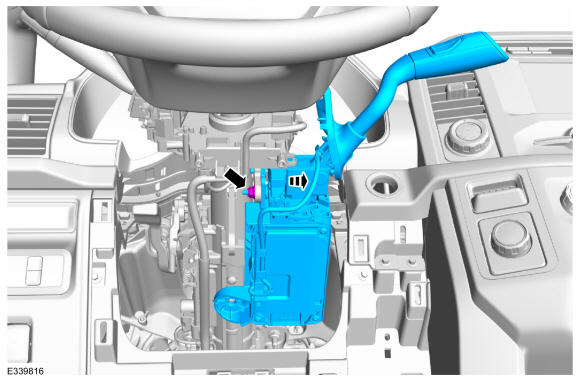

  6. Remove the nut and the GSM.
GFD559799Courtesy of FORD MOTOR COMPANY
