Starter Motor: Removal

WARNING: This page is about a different car, the 2018 Ford F-350 Super Duty and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Always disconnect the battery ground cable at the battery before disconnecting the starter motor battery terminal lead. If a tool is shorted at the starter motor battery terminal, the tool can quickly heat enough to cause a skin burn. Failure to follow this instruction may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Disconnect the battery. Refer to: Battery Disconnect and Connect .
Open the starter motor solenoid battery cable cover.

Courtesy of FORD MOTOR COMPANY

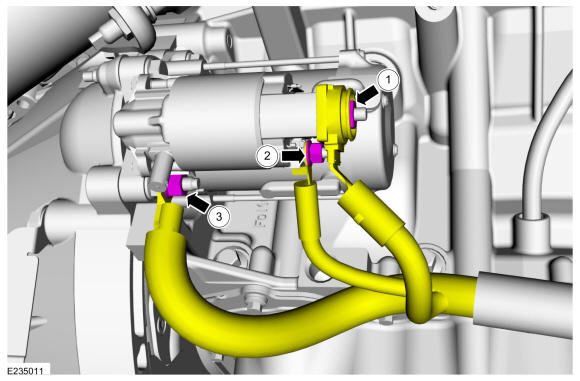

1. Remove the nut and disconnect the starter motor solenoid battery cable.
  Torque: 106 lb.in (12 Nm)
2. Remove the nut and disconnect the starter motor solenoid control wire.
  Torque: 53 lb.in (6 Nm)
3. Remove the nut and disconnect the ground cable.
  Torque: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY

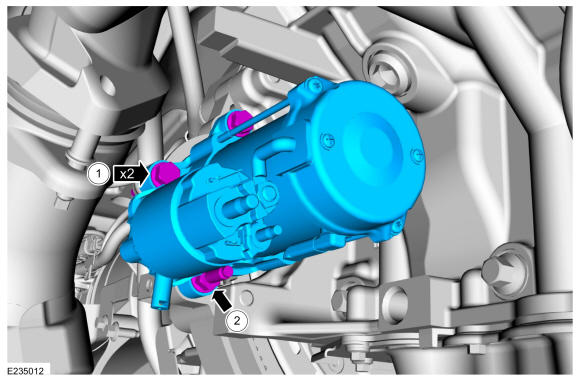

1. Remove the bolts.
  Torque: 18 lb.ft (25 Nm)
2. Remove the studbolt and the starter motor.
  Torque: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY
Inspect the starter motor drive gear and the flywheel/flexplate ring gear. Refer to: Starter Motor Drive Gear and Flywheel Ring Gear Inspection .
