Engine Oil Level Sensor: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Inspect the engine oil level sensor O-ring.

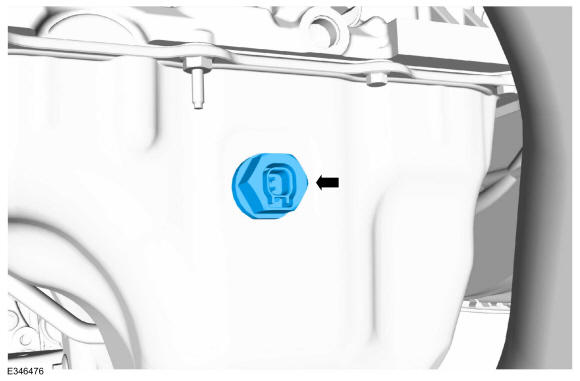

Install the engine oil lever sensor.

Torque

: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY

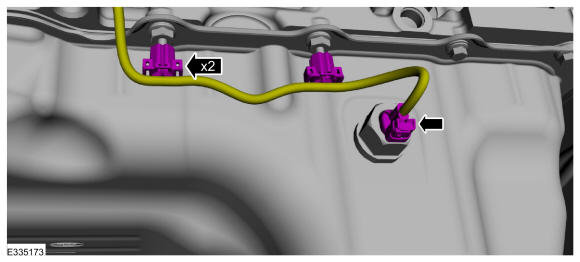

1. Connect the oil level sensor electrical connector.
2. Attach the wiring harness retainers.
Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

Install the skid plate and bolts.

Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped, install the underbody shield and fasteners.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

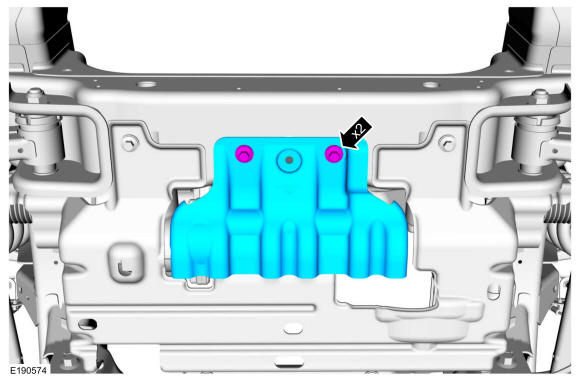

If equipped, install the skid plate and bolts.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
Fill the engine with clean engine oil. Refer to: Engine Oil Draining and Filling .
