Side Curtain Airbag - Crew Cab: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
Refer to: Pyrotechnic Device Health and Safety Precautions .
- Lower the headliner. Refer to: Headliner - Lowering - Crew Cab .
- Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
-

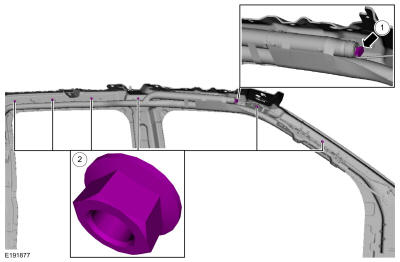

- Disconnect the side curtain airbag electrical connector.
- Remove the side curtain airbag nuts.
Torque: 93 lb.in (10.5 Nm)
-
- Remove the side curtain airbag bolts.
Torque: 93 lb.in (10.5 Nm)
- Separate the front and rear tether clip.

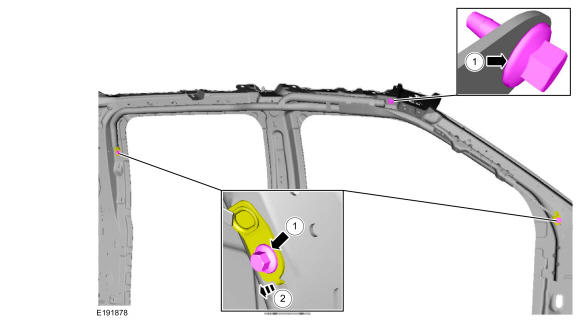

- Remove the side curtain airbag bolts.

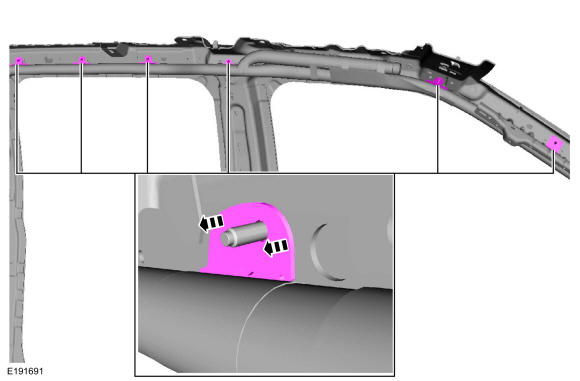

- Detach the side curtain airbag hangers.
-
- Detach the side curtain airbag retainers from the A-pillar bracket.
- Pull the side curtain airbag away from the A-pillar bracket.
- Feed the side curtain airbag hanger out from between the A-pillar and the A-pillar bracket.
-

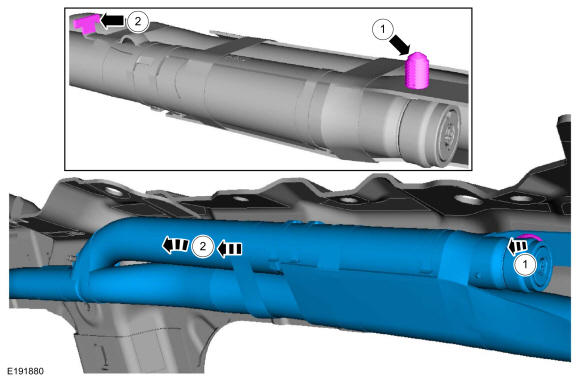

- Detach the pin-type retainer.
- Slide the side curtain airbag rearward and out, disengaging the T-tab from the sheet metal and remove the side curtain airbag.
