Headliner - Lowering - Crew Cab
WARNING: This page is about a different car, the 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For Information On Ford Color Coded Illustrations, Refer to OEM Color Coding .
- Remove The Following Items:
- On Both Sides. Remove The A-Pillar Trim Panels. Refer to: a-Pillar Trim Panel .
- On Both Sides. Remove The B-Pillar Trim Panels. Refer to: b-Pillar Trim Panel - Crew Cab .
- On Both Sides. Remove The C-Pillar Trim Panels. Refer to: c-Pillar Trim Panel .
-
NOTE: LH Side Shown In Illustration, RH Side Similar.
On Both Sides. Remove The Sun Visor.
- Remove The Screw Cover.
- Remove The Screw.
- Remove The Sun Visor.
- If Equipped. Disconnect The Electrical Connector.
-
NOTE: LH Side Shown In Illustration, RH Side Similar.
On Both Sides. Remove The Screws And The Sun Visor Clips.
- If Equipped. Release The Clips And Remove The Rain Sensor Covers.

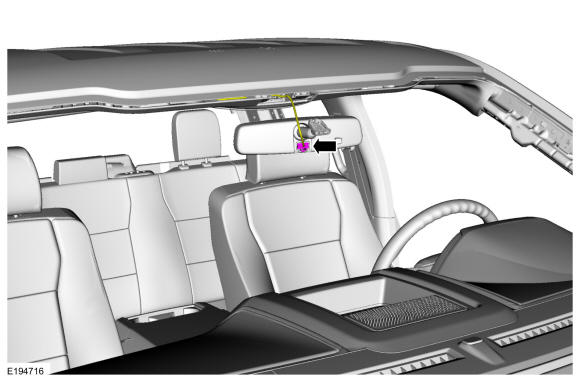

- If Equipped. Disconnect The Rear View Mirror Electrical Connector.
- If Equipped. Disconnect The Rain Sensor Electrical Connector.

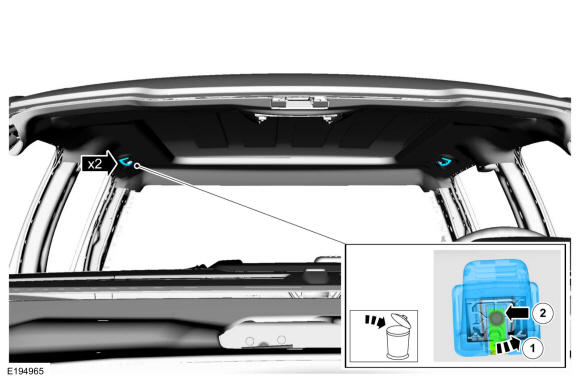

- On Both Sides. Remove And Discard The Garment Hooks.
- Open The Garment Hook Cover.
- Remove The Screw.
- Disconnect The Headliner Wiring Harness Connectors, Release The Wiring Harness Retainer And Position The Wiring Harness Aside.
-
NOTE: The Seat Backrest Latch Is Only Accessible When The Seat Cushion Is Raised.NOTE: During Installation, The Striker Should Be In Its Lowest Position For The Latch To Engage.
Fold The Lh Rear Seat Backrest Down.
- Raise The Seat Cushion.
- Release The Backrest Latch.
- Fold The Backrest Down.
- Pull The Backrest Release Strap And Fold The Rh Rear Seat Backrest Down.
- On Both Sides.Fully Recline The Front Seat Backrest.

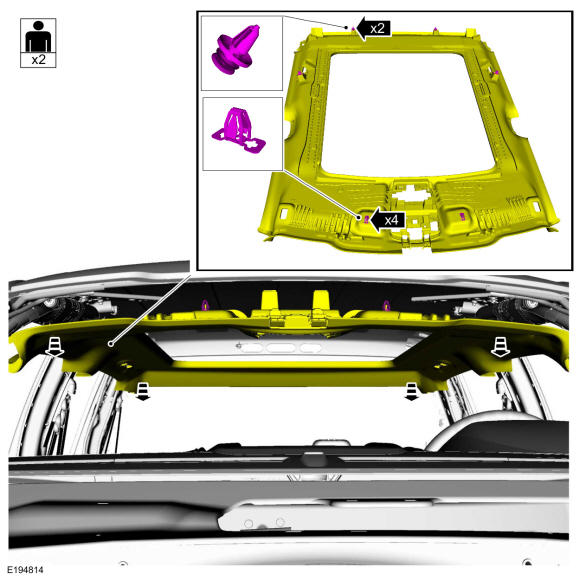

- Release The Clips And Lower The Headliner.
