Axle Shaft: Installation
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: The seal is to be reused unless damaged.
- Lubricate the axle shaft seal lip.
Material
: Motorcraft® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

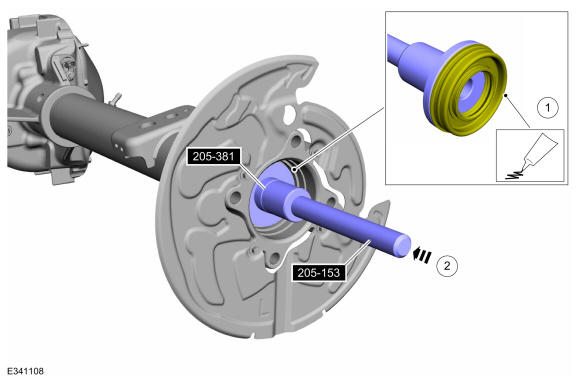

- Using special tools, install the new axle shaft seal if it is damaged.
Use Special Service Tool: 205-381 (T97T-1177-A) Installer, Rear Axle Oil Seal., 205-153 (T80T-4000-W) Handle.
- Lubricate the axle shaft seal lip.

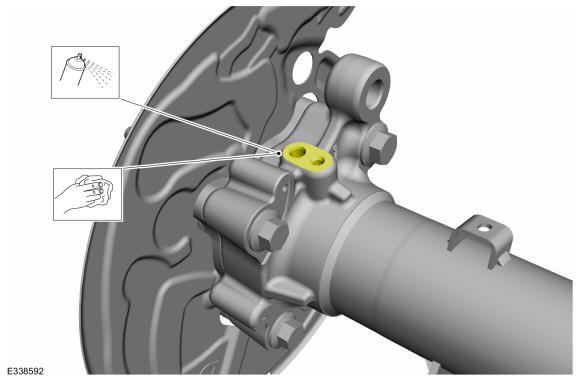

- Before installing a new sensor, inspect the sensor housing to make sure the sensor cavity is clean and free of foreign material.
- To install, reverse the removal procedure.
- Check and top off the differential fluid. Refer to: Differential Fluid Level Check .
