Differential Fluid Level Check

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING INFORMATION

Special Tool(s) / General Equipment

Fluid Suction Gun

Materials

Name	Specification
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear LubricantXY-75W85-QL	WSS-M2C942-A

Check

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the differential fluid fill plug.

Courtesy of FORD MOTOR COMPANY

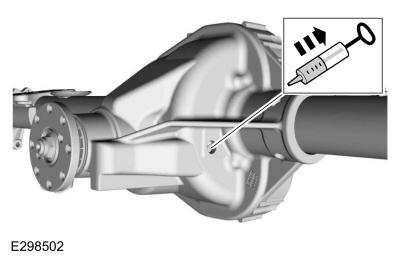

If draining is needed. Using a general equipment, remove as much fluid as possible from the RDU. Use the General Equipment: Fluid Suction Gun

Courtesy of FORD MOTOR COMPANY

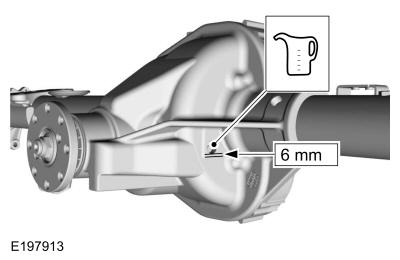

Check and top off the differential with clean differential gear lubricant. The differential gear lubricant level should be within 6mm (1/4 in.) from the fluid level fill plug opening. Refer to: Specifications .
Material

: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)

Courtesy of FORD MOTOR COMPANY

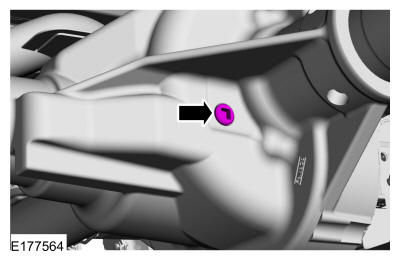

Install the differential fluid fill plug.
Torque: 38 lb.ft (51 Nm)

Courtesy of FORD MOTOR COMPANY
