Steering Gear: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

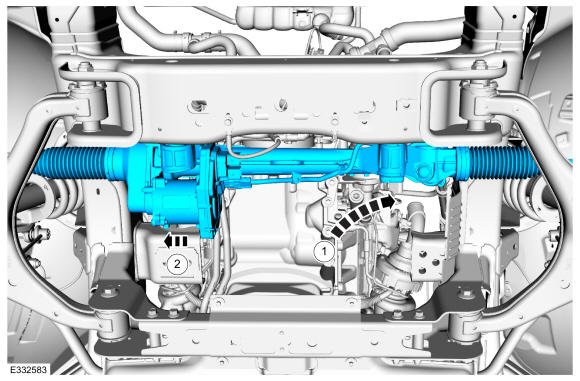

1. Position the steering gear.
2. Shift the steering towards the passenger side of the vehicle.
Courtesy of FORD MOTOR COMPANY
NOTE: Driver side LH steering gear mounting bolt must be torqued first.

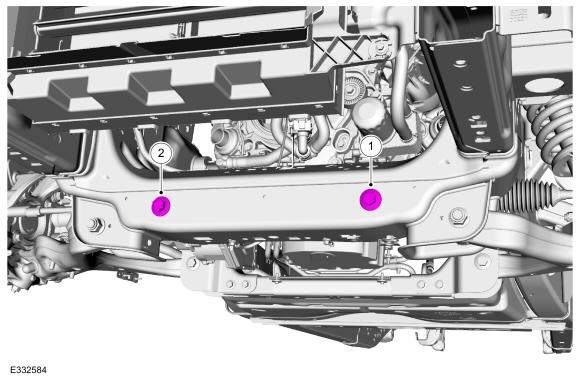

Install the new steering gear mounting bolts.

Torque: LH steering gear mounting bolt: 184 lb.ft (250 Nm) RH steering gear mounting bolt: 184 lb.ft (250 Nm)

Courtesy of FORD MOTOR COMPANY

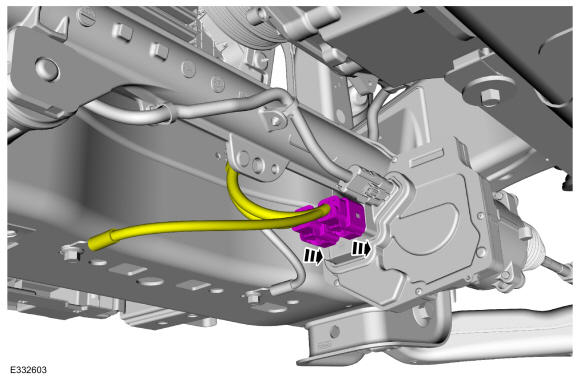

Connect the EPAS gear electrical connectors.

Courtesy of FORD MOTOR COMPANY
1. WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

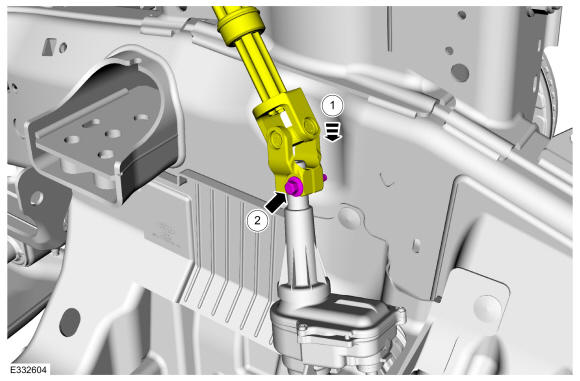

  Connect the steering column shaft U-joint to the steering gear.
2. Install the new steering column shaft bolt.
  Torque: 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY
Install the front engine undershield. Refer to: Engine Front Undershield .

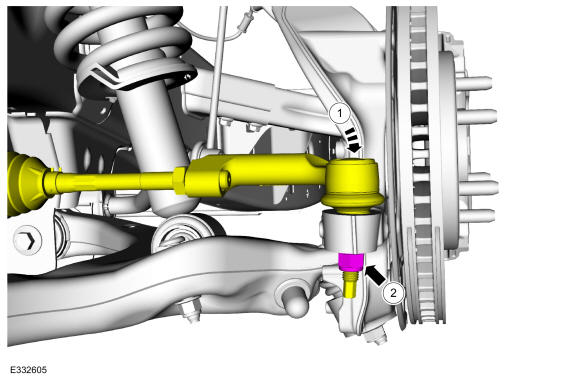

1. Connect the tie rod end to the wheel knuckle.
2. NOTE: Use the hex-holding feature to prevent the stud from turning while installing the nut.

  Install the new tie rod end nut.

  Torque: 66 lb.ft (90 Nm)
Courtesy of FORD MOTOR COMPANY
Install the wheel and tire. Refer to: Wheel and Tire .
Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
When installing a new steering gear, it must be configured. Using a diagnostic scan tool, carry out the PSCM Module Configuration. Refer to: Module Configuration - System Operation and Component Description .
Check and if necessary, adjust front toe. Refer to: Front Toe Adjustment . Refer to: Front Toe Adjustment - Vehicles With: Adaptive Steering .
