Cylinder Head - Body On - LH

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool (s) / General Equipment

Oil Drain Equipment

Materials

Name	Specification
Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil XO-5W30-QFA	WSS-M2C214-B1

NOTE: It is recommended that this component be serviced with the vehicle body removed. If the body was removed, refer to Cylinder Head - Body Off - LH .

NOTE: Make sure that the same gasket thickness is reinstalled.

Install the new cylinder head dowels and the LH cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: Using too much engine oil on the threads of the cylinder head bolts may cause damage to the threads and poor sealing. Using anti-seize compounds, grease or any other lubricants other than engine oil on the cylinder head bolt threads may affect the true torque value of the bolts.

NOTE: Lightly lubricate the new cylinder head bolt threads and flanges with clean engine oil.

Install the LH cylinder head and the new bolts.

Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)

Torque: Stage 1: 177 lb.in (20 Nm) | Stage 2: 30 lb.ft (40 Nm) | Stage 3: 59 lb.ft (80 Nm) | Stage 4: 180°

Fig 1: LH Cylinder Head Tightening Sequence
Courtesy of FORD MOTOR COMPANY
- Install the fuel line assembly and the bolt.
  Torque: 17 lb.ft (23 Nm)
- Connect the fuel line connectors. Refer to: QUICK RELEASE COUPLING
Courtesy of FORD MOTOR COMPANY

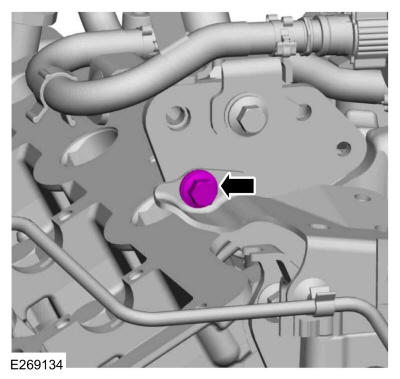

Remove the bolt from the bracket.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the coolant outlet connector gaskets.

Courtesy of FORD MOTOR COMPANY
Install the oil cooler O-ring and lubricate. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
Install the coolant outlet connector and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: The oil filter housing needs a minimum of 1 minute to allow the oil to drain out of the oil filter housing to minimize oil spillage.

Loosen the oil filter cap and let the oil filter housing drain. Remove the oil filter cap.

Courtesy of FORD MOTOR COMPANY
Remove and discard the oil filter cap O-ring seal.

Courtesy of FORD MOTOR COMPANY
Remove and discard the oil filter. Use the General Equipment: Oil Drain Equipment

Courtesy of FORD MOTOR COMPANY
Install a new oil filter.

Courtesy of FORD MOTOR COMPANY
Install a new oil filter cap O-ring seal and lubricate.
Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)

Courtesy of FORD MOTOR COMPANY
Install the oil filter cap.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the oil pan plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Install the exhaust crossover pipe. Refer to: Exhaust Crossover Pipe .
2. Install the LH camshafts. Refer to: Camshaft LH .
Fill the engine with clean engine oil. Refer to: Specifications .
Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)

Courtesy of FORD MOTOR COMPANY
Road test the vehicle.
