Section 421 (Engine - 3.0L Power Stroke Diesel (Removal - Installation)): Assembly: Engine

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool (s) / General Equipment

GFD459920Courtesy of FORD MOTOR COMPANY
 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge
GFD461369Courtesy of FORD MOTOR COMPANY
 303-1670 Pins, Camshaft Locking
GFD461413Courtesy of FORD MOTOR COMPANY
 303-1671 Pin, Locking Crankshaft
GFD461414Courtesy of FORD MOTOR COMPANY
 303-1672 Installer, Crankshaft Seal
GFD461370Courtesy of FORD MOTOR COMPANY
 303-1673 Installer, Camshaft Seal
GFD461371Courtesy of FORD MOTOR COMPANY
 303-1674 Tool, Holding Camshaft Sprocket
GFD461423Courtesy of FORD MOTOR COMPANY
 303-1676 Installer, Crankshaft Position Sensor Ring
GFD461415Courtesy of FORD MOTOR COMPANY

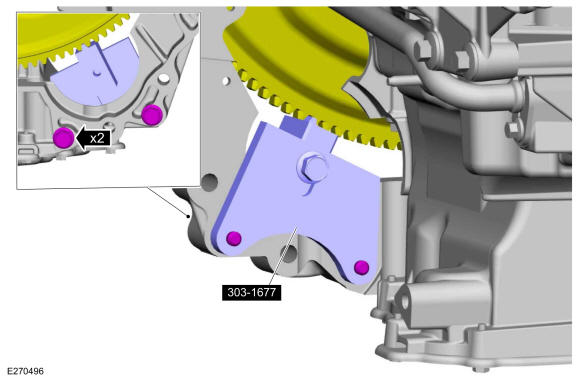

 303-1677 Locking Tool, Flywheel
GFD461608Courtesy of FORD MOTOR COMPANY
 303-1678 Remover, Fuel Pump Pulley Holding Tool
GFD461904Courtesy of FORD MOTOR COMPANY
 303-1679 Timing Tool, Fuel Pump Rear Access
GFD461434Courtesy of FORD MOTOR COMPANY
 303-1681 Spreader Bar
Floor Crane
Mounting Stand
Hose Clamp Remover/Installer
Piston Ring Compressor

Materials

Name Specification
Motorcraft® Thread Sealant with PTFE TA-24-B WSK-M2G350-A2
Motorcraft® High Performance Engine RTV Silicone TA-357 WSE-M4G323-A6
Flange Sealant CU7Z-19B508-A WSS-M2G348-A11
Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil XO-5W30-QFA WSS-M2C214-B1
Motorcraft® Orange Concentrated Antifreeze/Coolant VC-3-B WSS-M97B44-D
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, may cause engine failure.
NOTE: This procedure assumes the engine will be installed using the recommended body off engine installation procedure. If it will be necessary to install the engine using the alternate body on engine installation procedure, some of the components in this procedure should not be installed at this time. Refer to Engine - Body On .
NOTE: Assembly of the engine requires various inspections/measurements of the engine components. These inspections/measurements will aid in determining if the engine components will require replacement. Refer to Engine .
NOTE: Refer to the DESCRIPTION AND OPERATION .

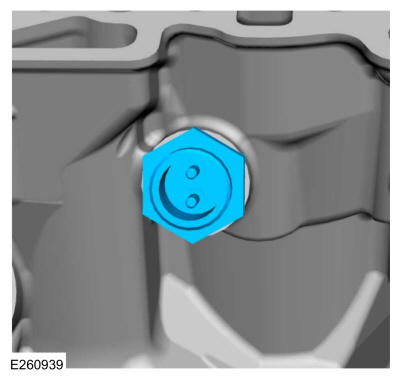

  1. If equipped. Install the block heater.

    Torque: 41 lb.ft (55 Nm)

    GFD461861Courtesy of FORD MOTOR COMPANY
  2. If removed. Install the cylinder block to flywheel housing dowels.

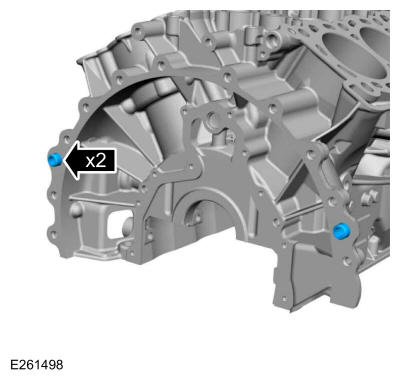

    GFD461905Courtesy of FORD MOTOR COMPANY

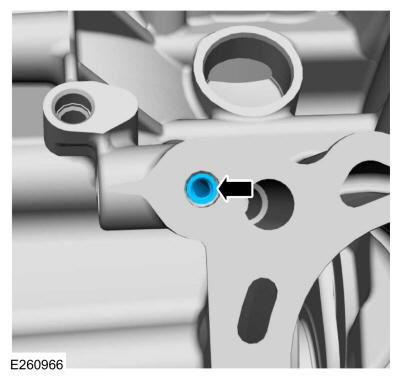

  3. Install the engine oil filter.
    GFD461906Courtesy of FORD MOTOR COMPANY

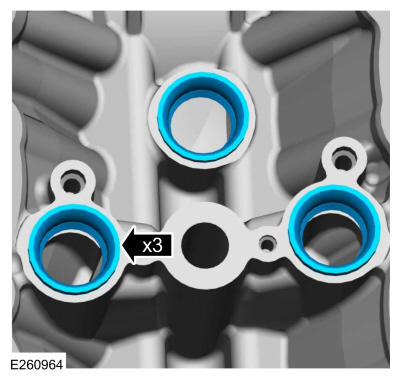

  4. Install the crankcase vent gaskets.
    GFD461907Courtesy of FORD MOTOR COMPANY

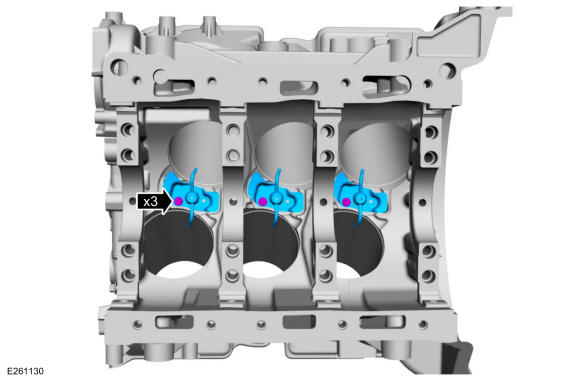

  5. Install the piston cooling jets and bolts.

    Torque: 89 lb.in (10 Nm)

    GFD461857Courtesy of FORD MOTOR COMPANY

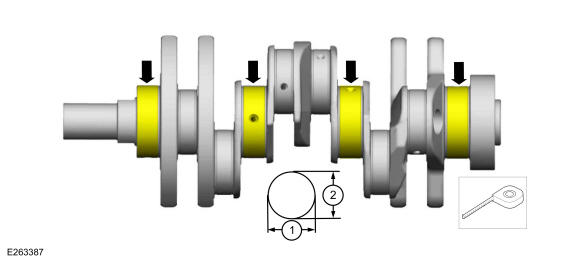

  6. Measure the length or distance in two directions.

    • Record the smallest measurement for each crankshaft main bearing journal.

    GFD461908Courtesy of FORD MOTOR COMPANY

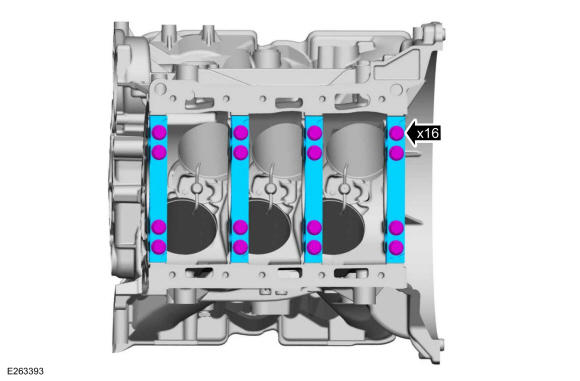

  7. NOTE: Only tighten the bolts finger tight at this stage.

    Install the main bearing caps and the bolts.

    GFD461909Courtesy of FORD MOTOR COMPANY

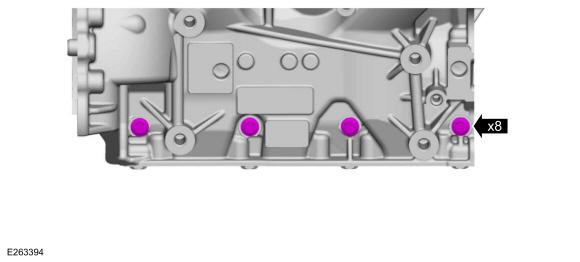

  8. NOTE: Only tighten the bolts finger tight at this stage.
    NOTE: RH side shown, LH side similar.

    Install the main bearing cap side bolts.

    GFD461910Courtesy of FORD MOTOR COMPANY

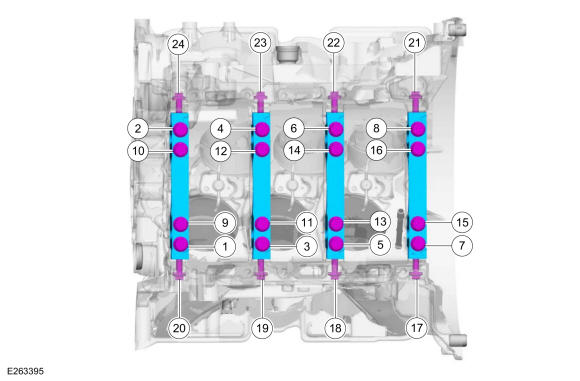

  9. Tighten the main bearing bolts.

    Torque: Stage 1: Tighten bolts 1 thru 16 to : 30 lb.ft (40 Nm) | Stage 2: Tighten bolts 1 thru 16 to : 66 lb.ft (90 Nm) | Stage 3: Tighten bolts 1 thru 16, an additional : 45° | Stage 4: Tighten bolts 1 thru 16, a second time, an additional : 45° | Stage 5: Tighten bolts 17 thru 24 to : 124 lb.in (14 Nm) | Stage 6: Tighten bolts 17 thru 24, an additional : 45°

    GFD461911Courtesy of FORD MOTOR COMPANY

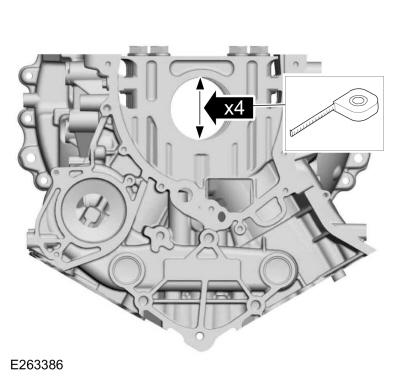

  10. Measure each crankshaft block main bearing bore diameter.
    GFD461912Courtesy of FORD MOTOR COMPANY

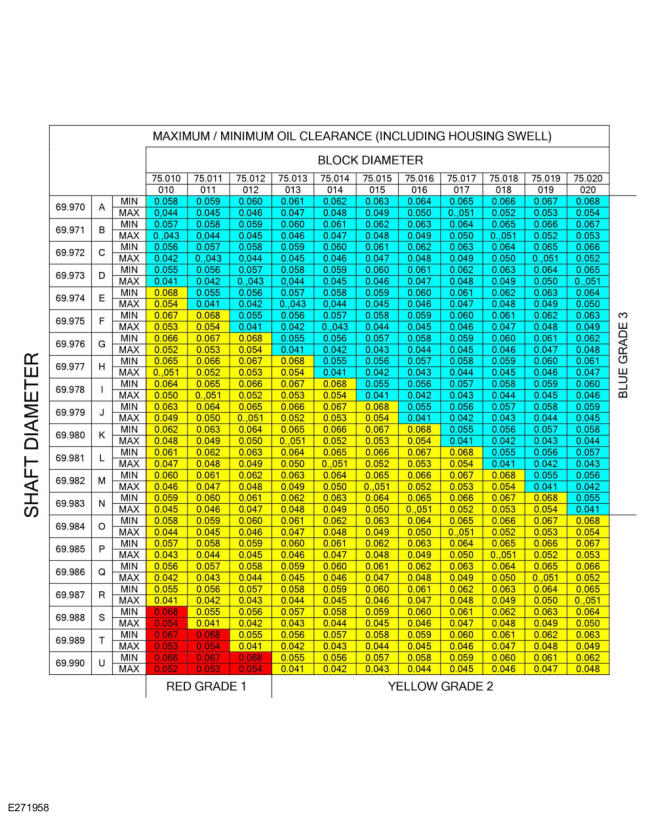

  11. NOTE: This chart is continued in the next step.

    Using the chart, select the crankshaft main bearings.

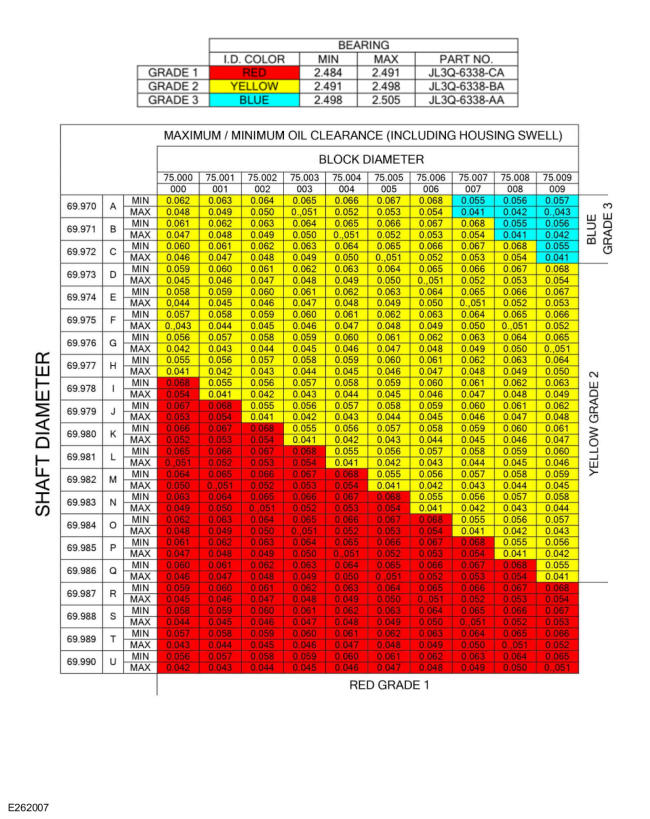

    GFD461913Courtesy of FORD MOTOR COMPANY
    GFD461914Courtesy of FORD MOTOR COMPANY

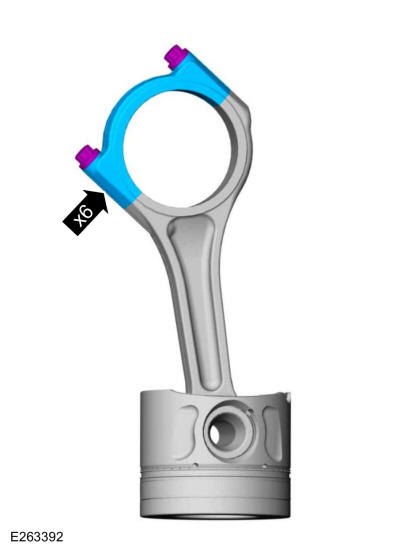

  12. NOTE: The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.

    Using the original connecting rod cap bolts, install the connecting rod caps and bolts.

    Torque: Stage 1: 177 lb.in (20 Nm) | Stage 2: 22 lb.ft (30 Nm) | Stage 3: 90°

    GFD461915Courtesy of FORD MOTOR COMPANY

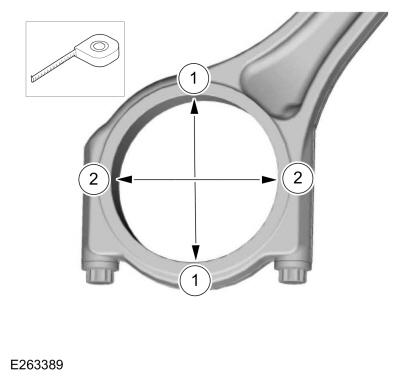

  13. Measure the connecting rod large end bore in 2 directions.
    GFD461916Courtesy of FORD MOTOR COMPANY

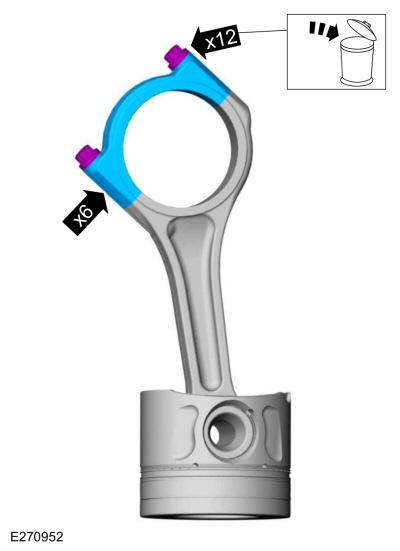

  14. Remove the bolts and the connecting rod caps. Discard the bolts.
    GFD461917Courtesy of FORD MOTOR COMPANY

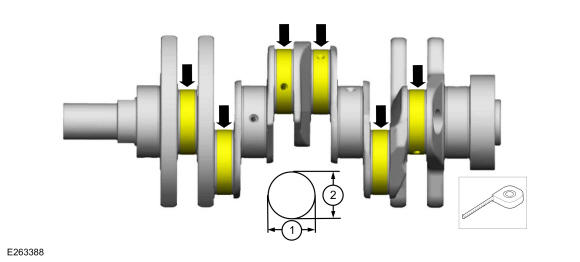

  15. Measure the length or distance in two directions.

    • Record the smallest measurement for each crankshaft main bearing journal.

    GFD461918Courtesy of FORD MOTOR COMPANY
  16. Using the chart, select the correct connecting rod bearings for each crankshaft connecting rod journal.

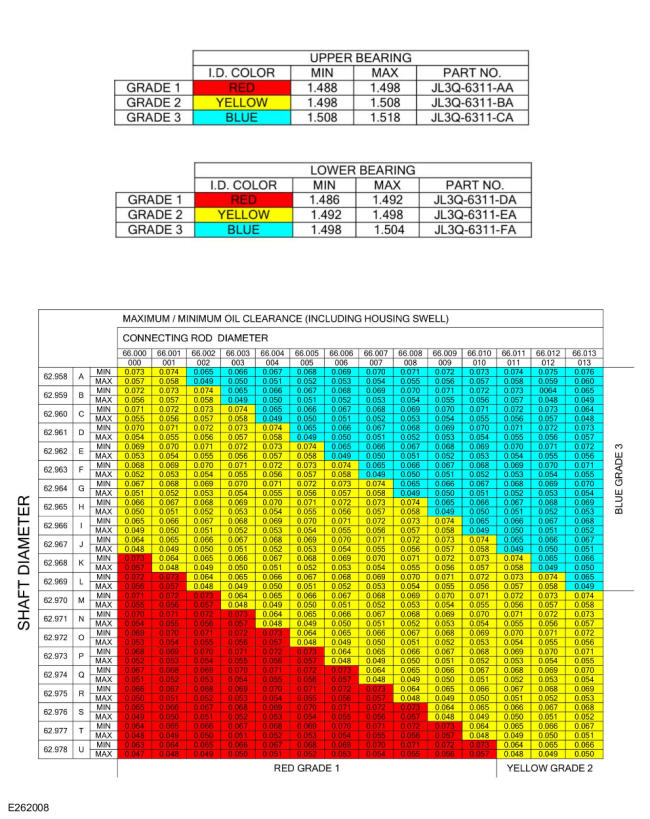

    GFD461919Courtesy of FORD MOTOR COMPANY

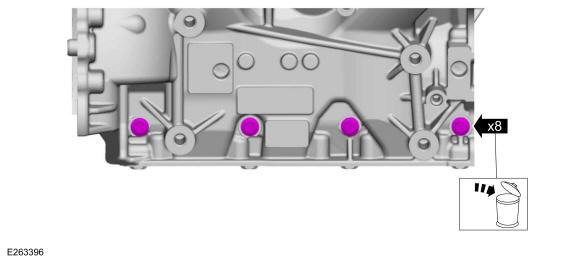

  17. NOTE: RH side shown, LH side similar.

    Remove and discard the main bearing cap side bolts.

    GFD461920Courtesy of FORD MOTOR COMPANY

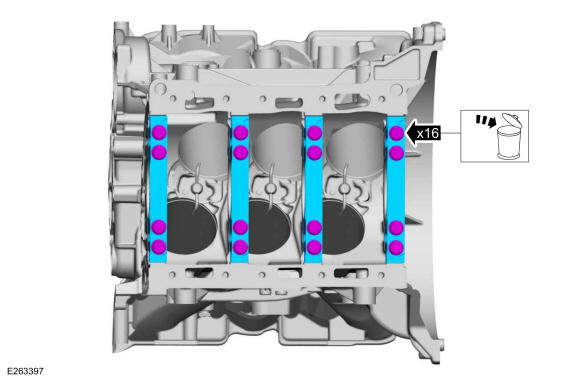

  18. Remove the bolts and the main bearing caps.

    • Discard the bolts.

    GFD461921Courtesy of FORD MOTOR COMPANY
  19. NOTE: Before assembling the cylinder block, all sealing surfaces must be free of chips, dirt, paint and foreign material. Also, make sure the coolant and oil passages are clear.
    NOTE: If reusing the crankshaft main bearings, install them in their original positions and orientation as noted during disassembly.

    Install the upper crankshaft bearings and lubricate.

    Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)

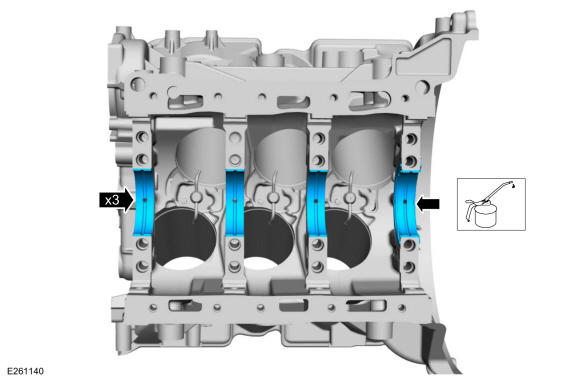

    GFD461922Courtesy of FORD MOTOR COMPANY

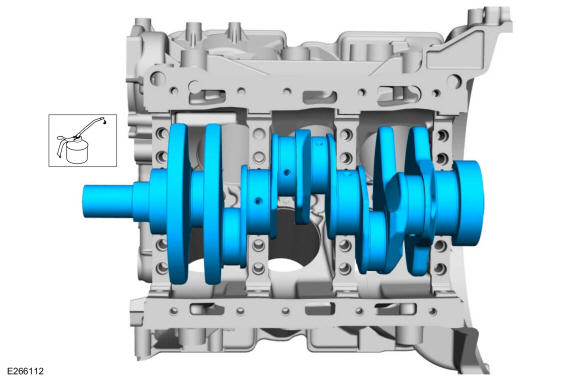

  20. Lubricate with clean engine oil and install the crankshaft.

    Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)

    GFD461923Courtesy of FORD MOTOR COMPANY

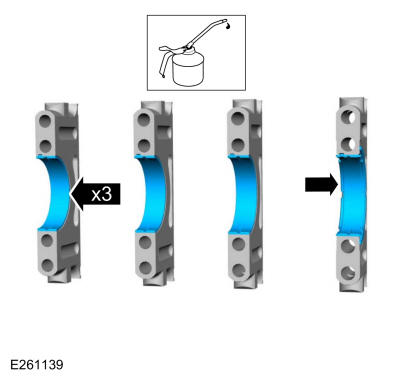

  21. Lubricate the crankshaft lower main bearings with clean engine oil and install them into the main bearing caps. Check seating and squareness of the bearings to make sure of proper seating in caps.

    Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)

    GFD461924Courtesy of FORD MOTOR COMPANY

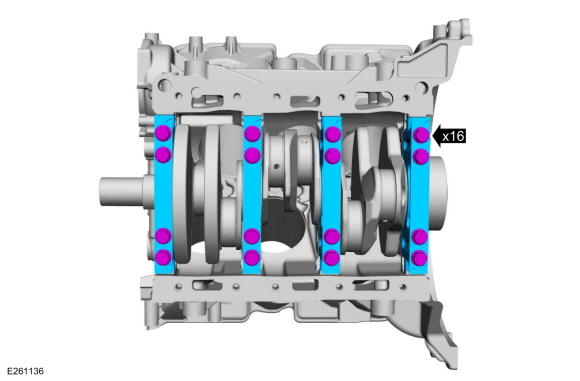

  22. NOTE: Only tighten the bolts finger tight at this stage.

    Install the main bearing caps and the bolts.

    GFD461925Courtesy of FORD MOTOR COMPANY

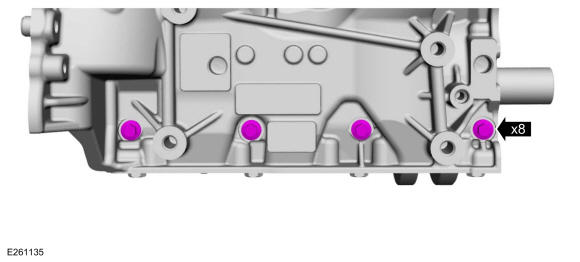

  23. NOTE: Only tighten the bolts finger tight at this stage.
    NOTE: RH side shown, LH side similar.

    Install the main bearing cap side bolts.

    GFD461852Courtesy of FORD MOTOR COMPANY

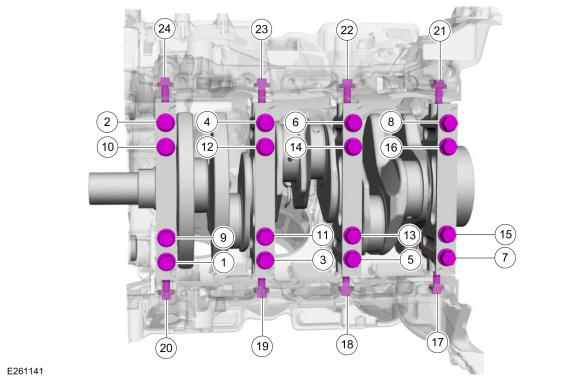

  24. Tighten the main bearing bolts.

    Torque: Stage 1: Tighten bolts 1 thru 6 and 9 thru 14 to : 30 lb.ft (40 Nm) | Stage 2: Tighten bolts 1 thru 6 and 9 thru 14 to : 66 lb.ft (90 Nm) | Stage 3: Tighten bolts 1 thru 6 and 9 thru 14, an additional : 45° | Stage 4: Tighten bolts 1 thru 6 and 9 thru 14, a second time, an additional : 45°

    GFD461926Courtesy of FORD MOTOR COMPANY

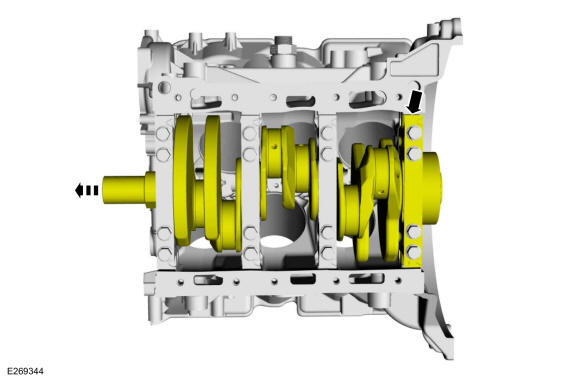

  25. Push the crankshaft forward to the front of the engine to align the thrust bearings to the cylinder block.
    GFD461927Courtesy of FORD MOTOR COMPANY
  26. Tighten the main bearing bolts.

    Torque: Stage 1: Tighten bolts 15 and 16 and 7-8 to : 30 lb.ft (40 Nm) | Stage 2: Tighten bolts 15 and 16 and 7-8 to : 66 lb.ft (90 Nm) | Stage 3: Tighten bolts 15 and 16 and 7-8, an additional : 45° | Stage 4: Tighten bolts 15 and 16 and 7-8, a second time, an additional : 45° | Stage 5: Tighten bolts 17 thru 24 to : 124 lb.in (14 Nm) | Stage 6: Tighten bolts 17 thru 24, an additional : 45°

    Fig 1: Main Bearing Tightening Sequence
    GFD461926Courtesy of FORD MOTOR COMPANY

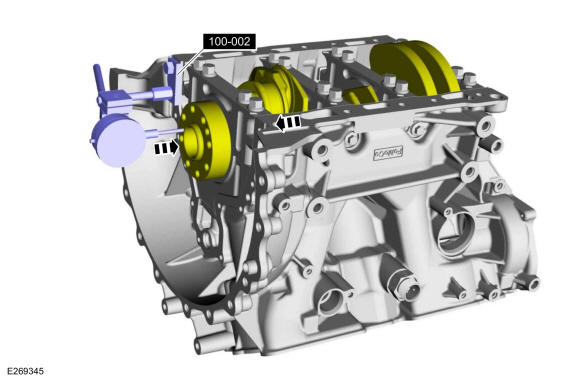

    • Position the crankshaft to the rear of the cylinder block. Use Special Service Tool : 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.

    • Zero the Dial Indicator Gauge.

    • Move the crankshaft to the front of the cylinder block. Measure and record the crankshaft end play. Refer to: Specifications .

    GFD461928Courtesy of FORD MOTOR COMPANY

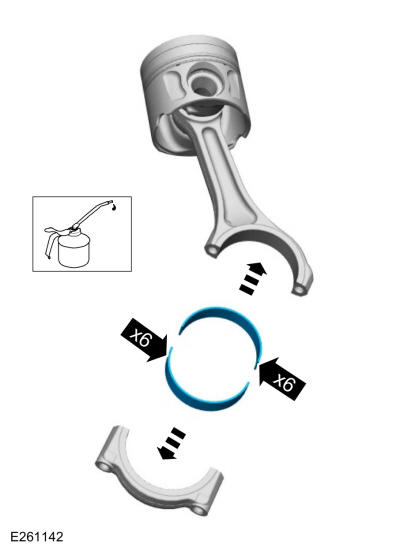

  28. NOTE: If reusing the connecting rod bearings, install them in their original positions and orientation as noted during disassembly.

    Install the connecting rod bearings and lubricate.

    Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)

    GFD461929Courtesy of FORD MOTOR COMPANY
  29. NOTE: The arrow on the top of the piston indicates the front of the engine.

    1. Upper compression ring gap location
    2. Lower compression ring gap location.
    3. Piston oil control ring gap location.
    4. Piston oil control ring gap location.

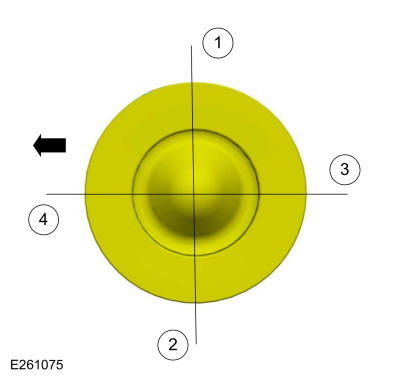

    GFD461903Courtesy of FORD MOTOR COMPANY

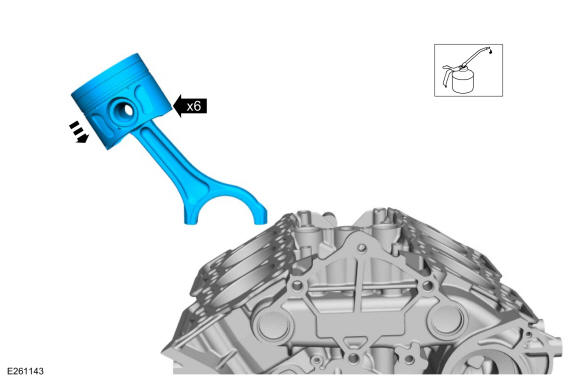

  30. NOTE: Be sure not to scratch the cylinder wall or crankshaft journal with the connecting rod. Be sure not to damage or bend the piston oil cooling jets when seating the connecting rod on the crankshaft journal. Push the piston down until the connecting rod bearing seats on the crankshaft journal.
    NOTE: Lubricate the pistons, piston rings, connecting rod bearings and the entire cylinder bores with clean engine oil.
    NOTE: If the piston and or connecting rod are being installed new, the piston rod orientation marks and the arrow on the top of the dome of the piston should be facing toward the front of the engine block.
    NOTE: If the piston and connecting rod are to be reinstalled, they must be installed in the same orientation as disassembled.

    Using the Piston Ring Compressor, install the piston and connecting rod assemblies. Repeat until all 6 piston assemblies are installed. Use the General Equipment: Piston Ring Compressor

    Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)

    GFD461930Courtesy of FORD MOTOR COMPANY
  31. NOTE: The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.
    NOTE: After installation of each piston, connecting rod, rod cap and bolts, rotate the crankshaft to verify smooth operation.

    Install the connecting rod cap and the new bolts.

    Torque: Stage 1: 177 lb.in (20 Nm) | Stage 2: 22 lb.ft (30 Nm) | Stage 3: 90°

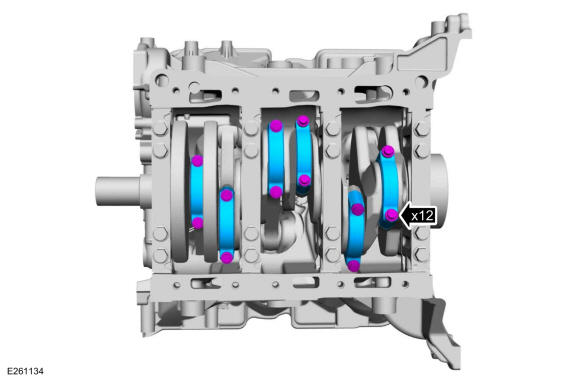

    GFD461849Courtesy of FORD MOTOR COMPANY
  32. NOTE: Only rotate the oil pump in the clockwise direction when viewed from the front. Counter clockwise rotation will cause damage to the oil pump assembly.

    Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.

    Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)

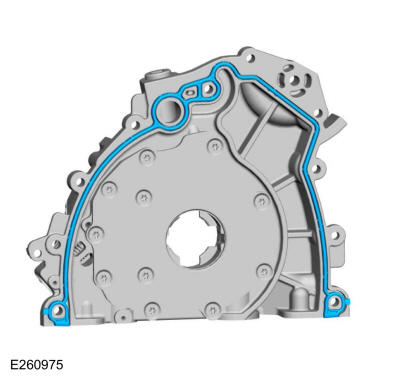

  33. Install a new oil pump gasket.
    GFD461538Courtesy of FORD MOTOR COMPANY

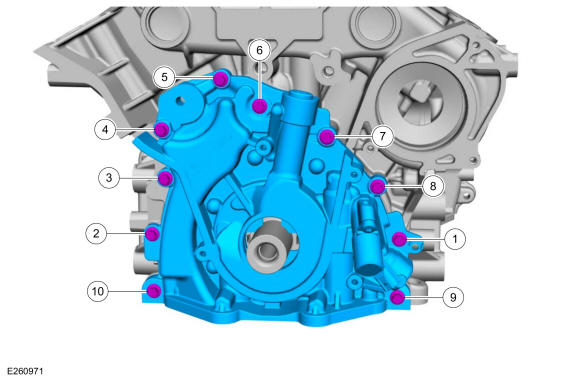

  34. Install the oil pump and the bolts.

    Torque: Torque all bolts to: : 89 lb.in (10 Nm) Tighten bolts 1, 2 and 3 a second time to: : 89 lb.in (10 Nm)

    GFD461931Courtesy of FORD MOTOR COMPANY

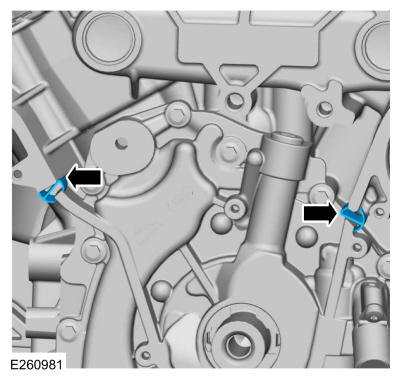

  35. Install the oil pump body-to-cylinder block seals.
    GFD461534Courtesy of FORD MOTOR COMPANY

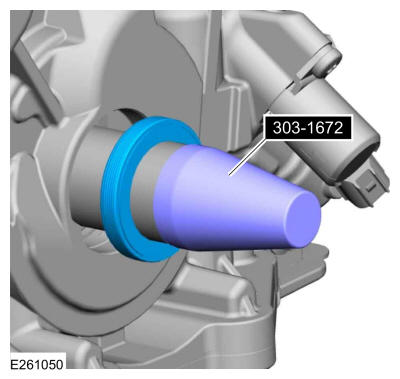

  36. NOTE: Rotate the seal as the seal is being installed on the crankshaft.

    Using the special tool, position the crankshaft front seal on the crankshaft. Use Special Service Tool : 303-1672 Installer, Crankshaft Seal.

    GFD461932Courtesy of FORD MOTOR COMPANY
  37. Using the special tool, install the crankshaft front seal. Use Special Service Tool : 303-1672 Installer, Crankshaft Seal.

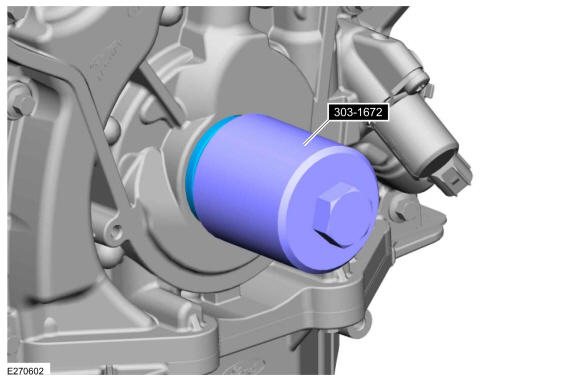

    GFD461933Courtesy of FORD MOTOR COMPANY

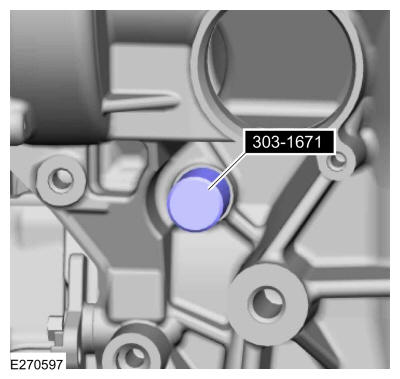

  38. Install special tool.

    • NOTE: Only rotate the crankshaft clockwise.
      NOTE: The Locking Crankshaft Pin must be bottomed out against the cylinder block.

      Rotate the crankshaft clockwise so the crankshaft contacts the locking crankshaft pin. Use Special Service Tool : 303-1671 Pin, Locking Crankshaft.

    GFD461823Courtesy of FORD MOTOR COMPANY

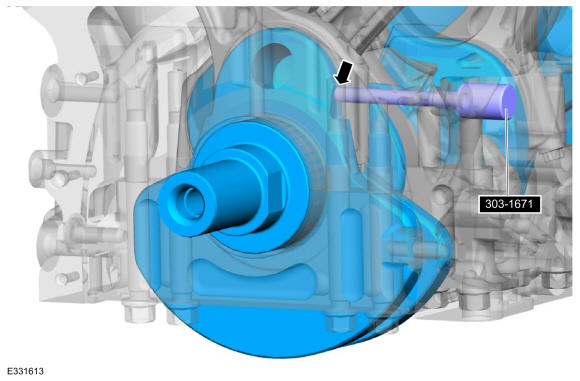

  39. Verify that the crankshaft is correctly located against the locking crankshaft pin.
    GFD461934Courtesy of FORD MOTOR COMPANY

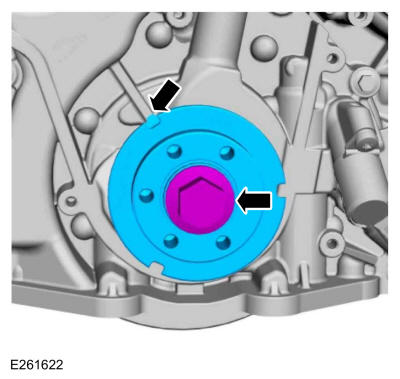

  40. NOTE: Align the crankshaft sprocket tab with the rib of the oil pump.
    NOTE: Final torque will be done after the engine is off the mounting stand.

    Install the crankshaft sprocket and the bolt.

    Torque: 74 lb.ft (100 Nm)

    GFD461935Courtesy of FORD MOTOR COMPANY
  41. Install the crankshaft rear seal retainer and the bolts.

    Torque: 89 lb.in (10 Nm)

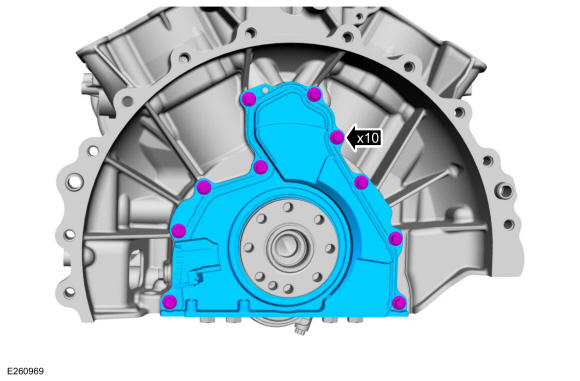

    GFD461936Courtesy of FORD MOTOR COMPANY

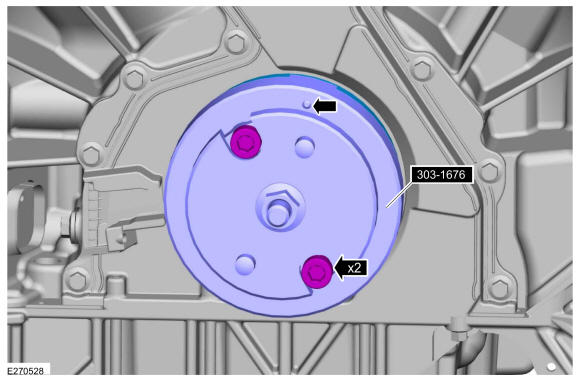

  42. NOTE: Make sure that the locating pin on the special tool is aligned with the crankshaft timing trigger wheel hole.

    Using the special tool, install the crankshaft timing trigger wheel. Use Special Service Tool : 303-1676 Installer, Crankshaft Position Sensor Ring.

    GFD461431Courtesy of FORD MOTOR COMPANY

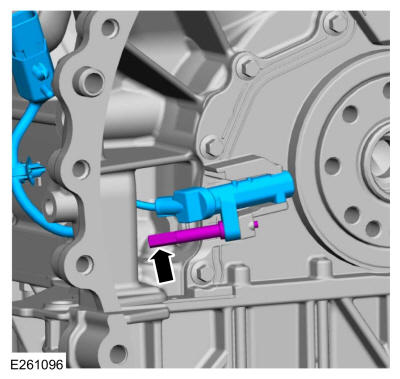

  43. Install the CKP sensor and bolt.

    Torque: 44 lb.in (5 Nm)

    GFD461842Courtesy of FORD MOTOR COMPANY

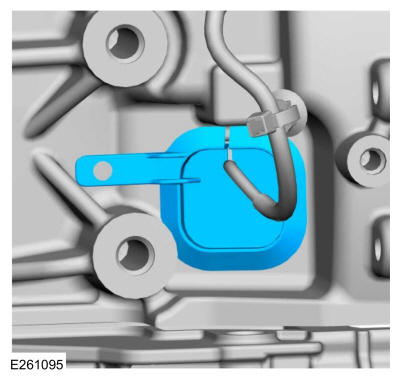

  44. Install the CKP sensor cover.
    GFD461841Courtesy of FORD MOTOR COMPANY

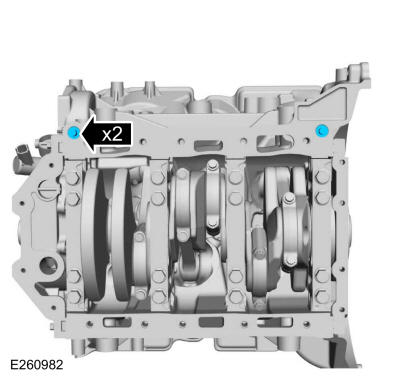

  45. Install the engine block skirt stiffener alignment dowels.
    GFD461740Courtesy of FORD MOTOR COMPANY
  46. NOTE: The engine block skirt stiffener and the bolts must be installed with 4 minutes of sealant application. Final tightening of the engine block skirt stiffener bolts must be carried out within 60 minutes of sealant application.

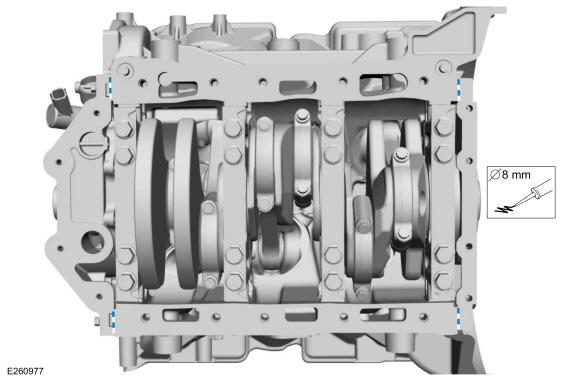

    Apply a 8.0 mm bead of Motorcraft® High Performance Engine RTV Silicone to the engine block T-joints.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD461937Courtesy of FORD MOTOR COMPANY
  47. Install a new engine block skirt stiffener gasket.

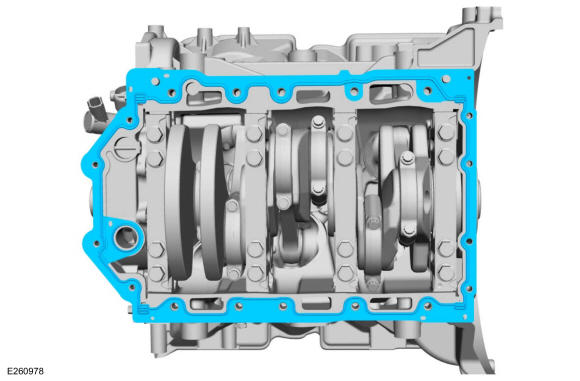

    GFD461938Courtesy of FORD MOTOR COMPANY

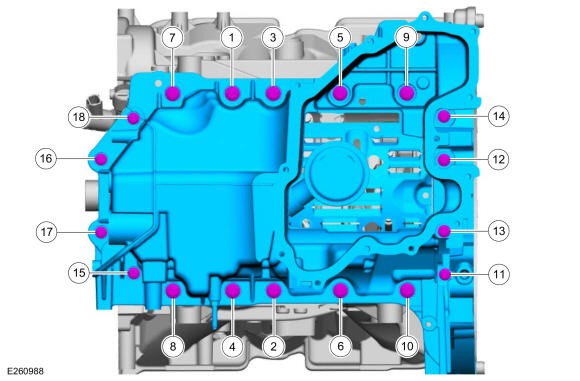

  48. Install the engine block skirt stiffener and the bolts.

    Torque: Stage 1: 18 lb.in (2 Nm) | Stage 2: 89 lb.in (10 Nm)

    GFD461939Courtesy of FORD MOTOR COMPANY

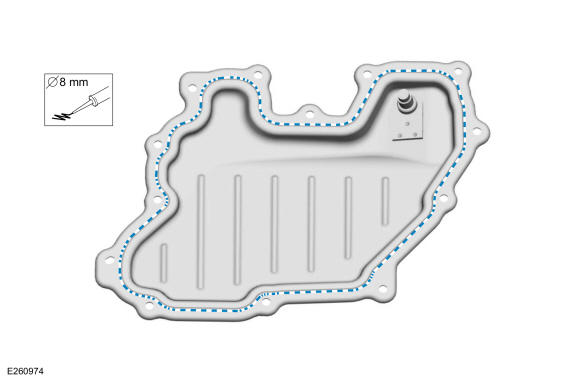

  49. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

    Apply a 8 mm bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the oil pan.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD461531Courtesy of FORD MOTOR COMPANY

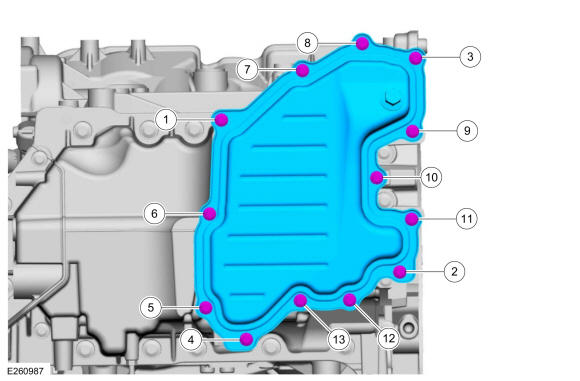

  50. Install the oil pan and the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD461940Courtesy of FORD MOTOR COMPANY

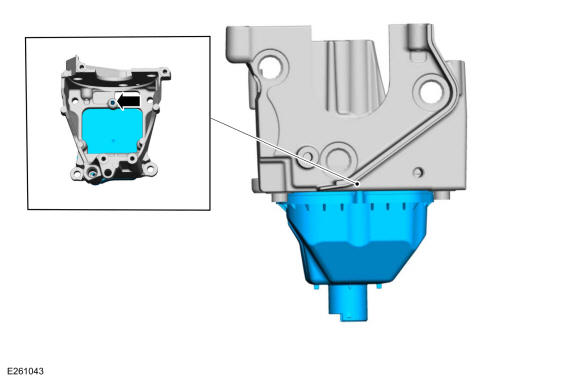

  51. If removed, install the CCV (crankcase vent) separator to the fuel injection pump mounting bracket.
    GFD461838Courtesy of FORD MOTOR COMPANY

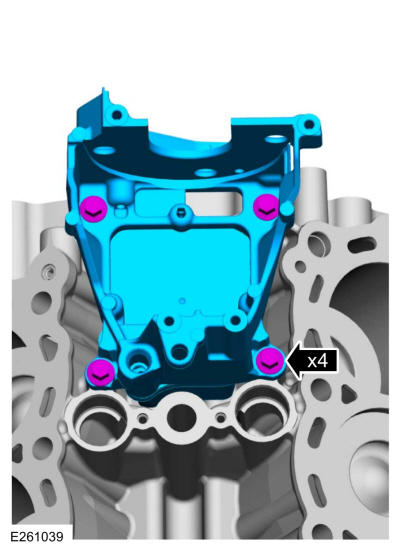

  52. Install the fuel injection pump mounting bracket and the bolts.

    Torque: 17 lb.ft (23 Nm)

    GFD461837Courtesy of FORD MOTOR COMPANY

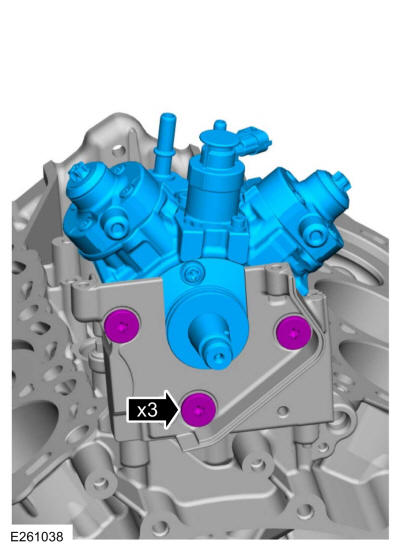

  53. Install the fuel injection pump and the bolts.

    Torque: 17 lb.ft (23 Nm)

    GFD461836Courtesy of FORD MOTOR COMPANY
  54. Install the fuel injection pump bolts.

    Torque: 89 lb.in (10 Nm)

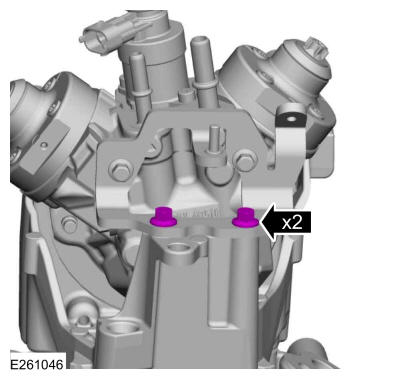

    GFD461835Courtesy of FORD MOTOR COMPANY
  55. Install the oil cooler O-rings.
    GFD461521Courtesy of FORD MOTOR COMPANY
  56. NOTE: In the event of catastrophic engine failure, always install a new oil cooler assembly. Foreign material cannot be removed from the oil cooler and engine damage may occur.

    Install the oil cooler and the bolts.

    Torque: 89 lb.in (10 Nm)

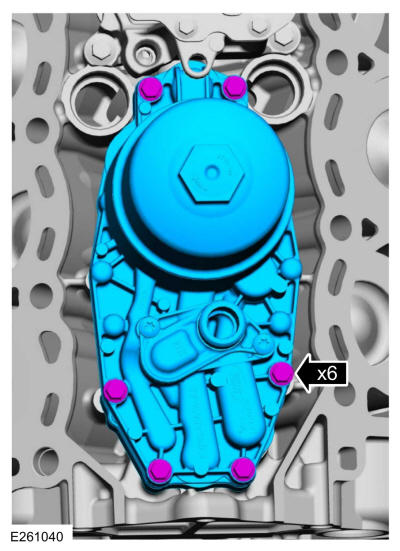

    GFD461834Courtesy of FORD MOTOR COMPANY
  57. NOTE: The largest measurement determines the choice of the cylinder head gasket.

    Check the piston protrusion. Refer to: Piston Protrusion Check .

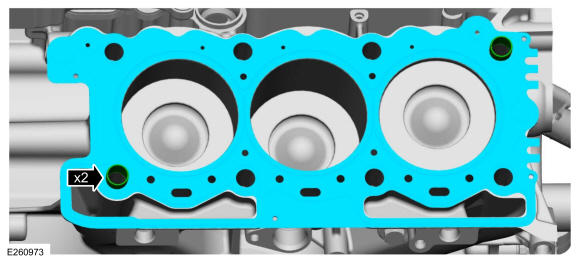

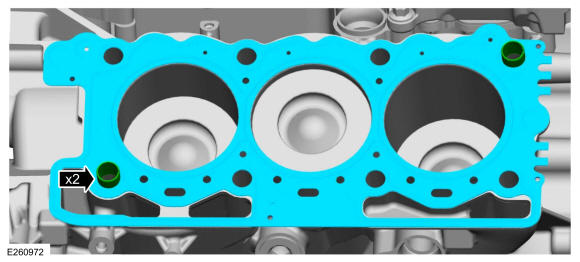

  58. Install the LH cylinder head dowels and head gasket.
    GFD461941Courtesy of FORD MOTOR COMPANY

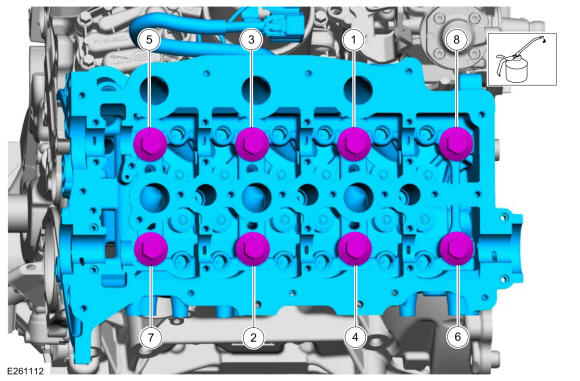

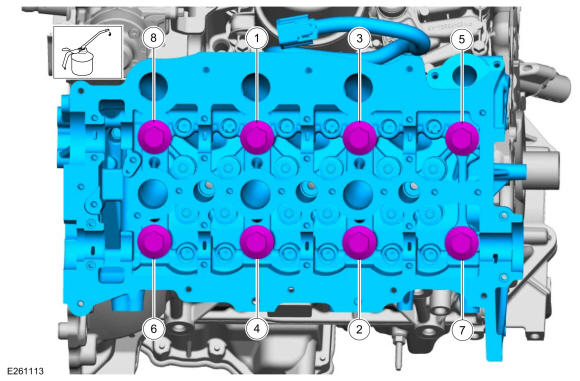

  59. NOTE: Using too much engine oil on the threads of the cylinder head bolts may cause damage to the threads and poor sealing. Using anti-seize compounds, grease or any other lubricants other than engine oil on the cylinder head bolt threads may affect the true torque value of the bolts.
    NOTE: The glow plugs protrude past the lower face of the cylinder head, any impact on the tip of the glow plug may result in glow plug damage.
    NOTE: Lightly lubricate the new cylinder head bolt threads and flanges with clean engine oil.

    Install the LH cylinder head and the new bolts.

    Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)

    Torque: Stage 1: 177 lb.in (20 Nm) | Stage 2: 30 lb.ft (40 Nm) | Stage 3: 59 lb.ft (80 Nm) | Stage 4: 180°

    GFD461942Courtesy of FORD MOTOR COMPANY
  60. NOTE: The largest measurement determines the choice of the cylinder head gasket.

    Check the piston protrusion. Refer to: Piston Protrusion Check .

  61. Install the RH cylinder head dowels and head gasket.
    GFD461943Courtesy of FORD MOTOR COMPANY
  62. NOTE: Using too much engine oil on the threads of the cylinder head bolts may cause damage to the threads and poor sealing. Using anti-seize compounds, grease or any other lubricants other than engine oil on the cylinder head bolt threads may affect the true torque value of the bolts.
    NOTE: The glow plugs protrude past the lower face of the cylinder head, any impact on the tip of the glow plug may result in glow plug damage.
    NOTE: Lightly lubricate the new cylinder head bolt threads and flanges with clean engine oil.

    Install the RH cylinder head and the new bolts.

    Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)

    Torque: Stage 1: 177 lb.in (20 Nm) | Stage 2: 30 lb.ft (40 Nm) | Stage 3: 59 lb.ft (80 Nm) | Stage 4: 180°

    GFD461944Courtesy of FORD MOTOR COMPANY

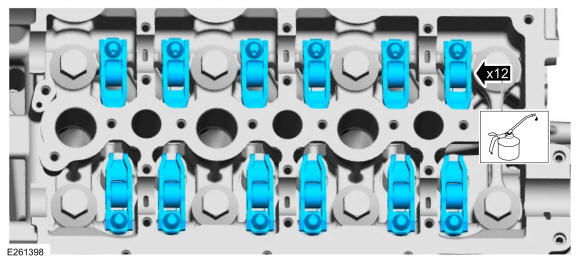

  63. NOTE: If the original hydraulic lash adjusters and roller followers are to be reinstalled, they must be installed in their original locations.

    1. Lubricate the RH hydraulic lash adjusters and roller followers with clean engine oil.

      Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)

    2. Install the hydraulic lash adjusters and roller followers.

    GFD461408Courtesy of FORD MOTOR COMPANY

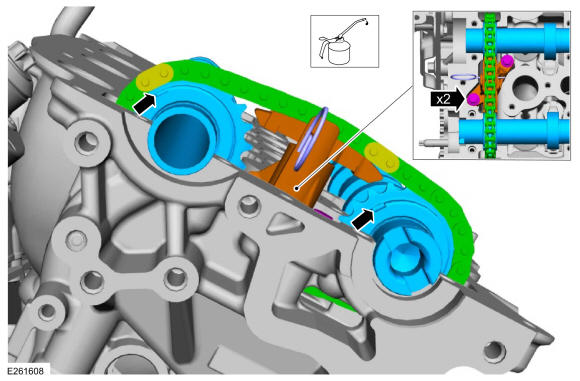

  64. NOTE: Lubricate the camshafts with clean engine oil prior to installation.
    NOTE: Align the timing marks on the camshafts with the timing marks on the secondary timing chain.

    Install the RH camshafts, camshaft chain, secondary timing chain tensioner and the bolts.

    Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)

    Torque: 89 lb.in (10 Nm)

    GFD461945Courtesy of FORD MOTOR COMPANY
  65. Apply sealer to the RH bearing caps.

    Material: Flange Sealant / CU7Z-19B508-A (WSS-M2G348-A11)

    GFD461410Courtesy of FORD MOTOR COMPANY

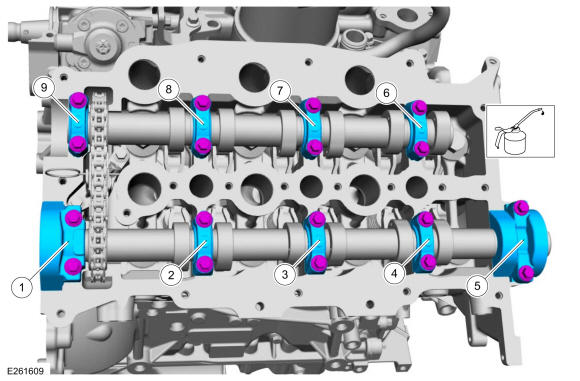

  66. NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.
    NOTE: Tighten the camshaft bearing cap bolts one turn at a time.

    Apply clean engine oil to the camshaft bearing caps. Install camshaft bearing caps and the bolts.

    Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)

    Torque: Stage 1: 9 lb.in (1 Nm) | Stage 2: 44 lb.in (5 Nm) | Stage 3: 89 lb.in (10 Nm)

    GFD461946Courtesy of FORD MOTOR COMPANY

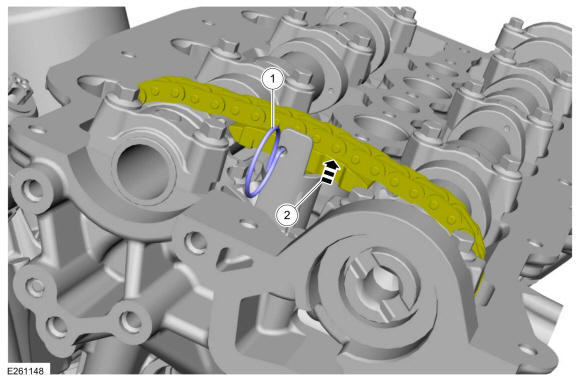

  67. Remove the retaining pin.
    GFD461412Courtesy of FORD MOTOR COMPANY

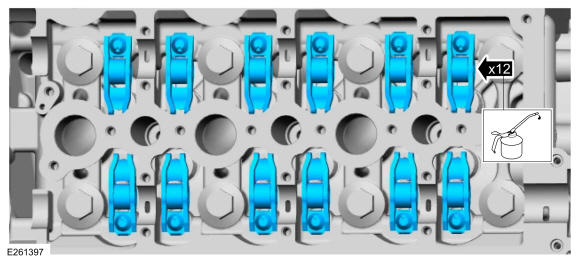

  68. NOTE: If the original hydraulic lash adjusters and roller followers are to be reinstalled, they must be installed in their original locations.

    1. Lubricate the LH hydraulic lash adjusters and roller followers with clean engine oil.

      Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)

    2. Install the hydraulic lash adjusters and roller followers.

    GFD461399Courtesy of FORD MOTOR COMPANY

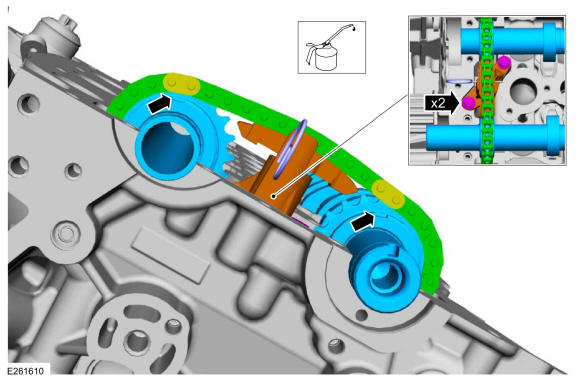

  69. NOTE: Coat the camshafts with clean engine oil prior to installation.
    NOTE: Align the timing marks on the camshafts with the timing marks on the secondary timing chain.

    Install the LH camshafts, camshaft chain, secondary timing chain tensioner and the bolts.

    Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)

    Torque: 89 lb.in (10 Nm)

    GFD461947Courtesy of FORD MOTOR COMPANY

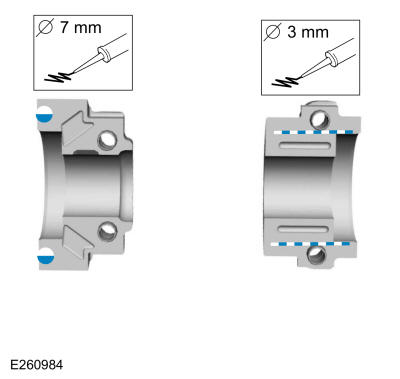

  70. Apply sealer to the LH bearing caps.

    Material: Flange Sealant / CU7Z-19B508-A (WSS-M2G348-A11)

    GFD461401Courtesy of FORD MOTOR COMPANY
  71. NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.
    NOTE: Tighten the camshaft bearing cap bolts one turn at a time.

    Apply clean engine oil to the camshaft bearing caps. Install camshaft bearing caps and the bolts.

    Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)

    Torque: Stage 1: 9 lb.in (1 Nm) | Stage 2: 44 lb.in (5 Nm) | Stage 3: 89 lb.in (10 Nm)

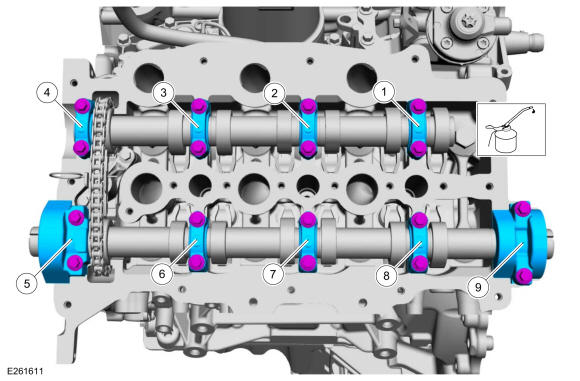

    GFD461948Courtesy of FORD MOTOR COMPANY

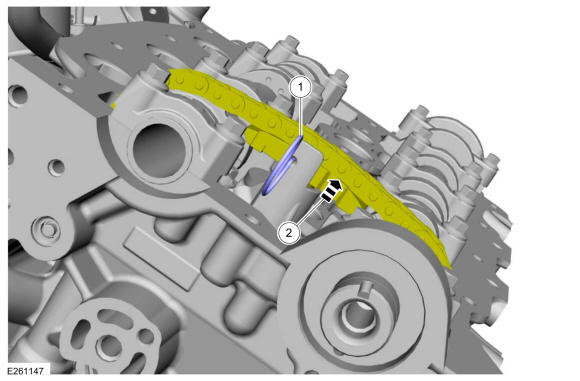

  72. Remove the retaining pin.
    GFD461403Courtesy of FORD MOTOR COMPANY

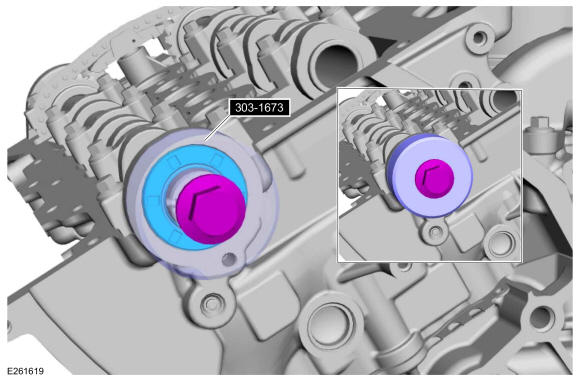

  73. NOTE: Right side shown, left side front and rear similar.

    Using the special tool, install the camshaft seals. Use Special Service Tool : 303-1673 Installer, Camshaft Seal.

    GFD461949Courtesy of FORD MOTOR COMPANY
  74. NOTE: If the EOP sensor is to be reused, apply thread sealant.

    Install the EOP sensor.

    Material: Motorcraft® Thread Sealant with PTFE / TA-24-B (WSK-M2G350-A2)

    Torque: 159 lb.in (18 Nm)

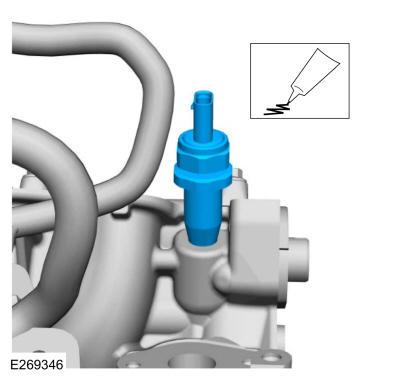

    GFD461950Courtesy of FORD MOTOR COMPANY

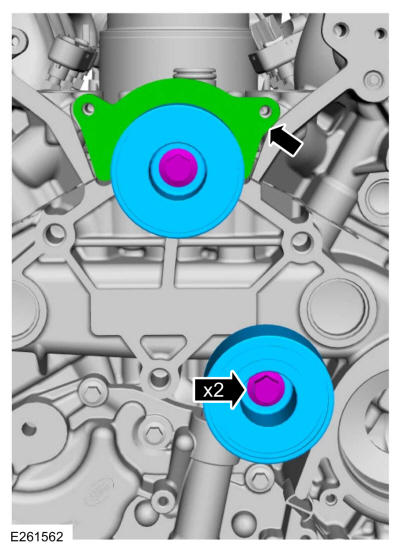

  75. Install the dust shield. Install the timing belt idler pulleys and the bolts.

    Torque: Stage 1: 177 lb.in (20 Nm) | Stage 2: 45°

    GFD461951Courtesy of FORD MOTOR COMPANY

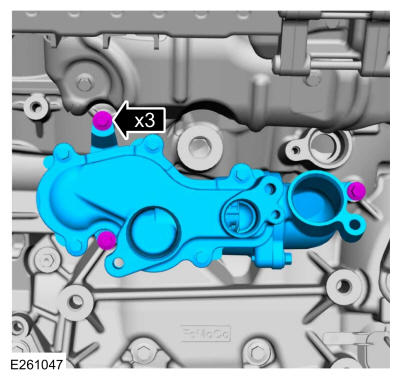

  76. Install the coolant outlet connector gaskets.
    GFD461522Courtesy of FORD MOTOR COMPANY

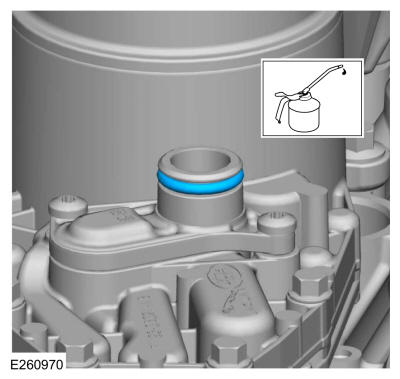

  77. Install the oil cooler O-ring and lubricate.

    Material: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

    GFD461523Courtesy of FORD MOTOR COMPANY

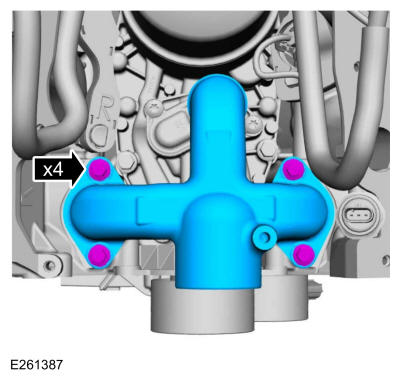

  78. Install the coolant outlet connector and the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD461678Courtesy of FORD MOTOR COMPANY
  79. Install the coolant pump O-ring and lubricate.

    Material: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

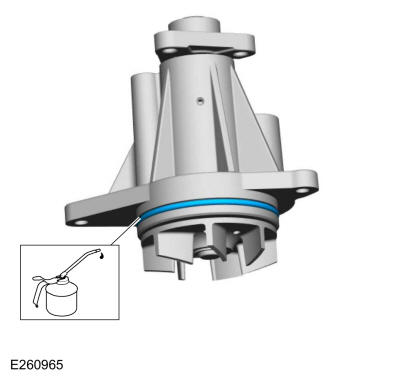

    GFD461952Courtesy of FORD MOTOR COMPANY
  80. Install the coolant pump and the bolts.

    Torque: 89 lb.in (10 Nm)

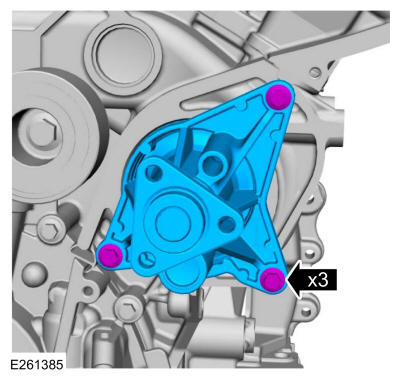

    GFD461830Courtesy of FORD MOTOR COMPANY

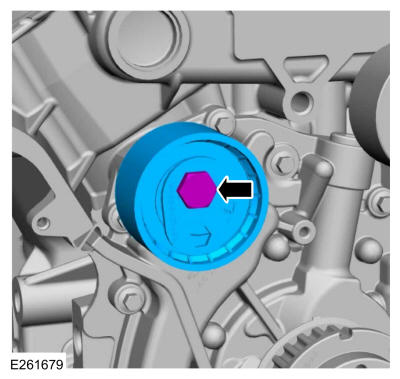

  81. NOTE: Only tighten the bolts finger tight at this stage.

    Install the timing belt tensioner and the bolt.

    GFD461553Courtesy of FORD MOTOR COMPANY

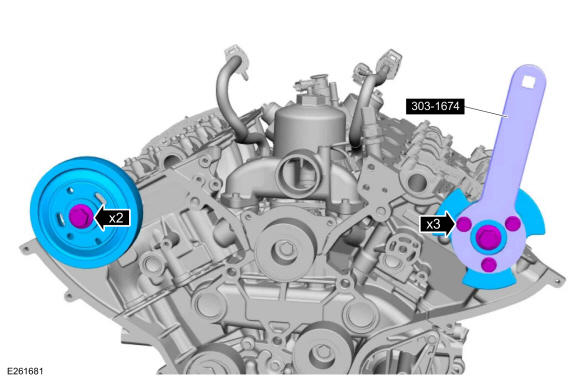

  82. NOTE: Use the original bolts for the special tool.

    Using the special tool, install the camshaft gear hubs and bolts. Use Special Service Tool : 303-1674 Tool, Holding Camshaft Sprocket.

    Torque: Stage 1: 59 lb.ft (80 Nm) | Stage 2: 80°

    GFD461953Courtesy of FORD MOTOR COMPANY

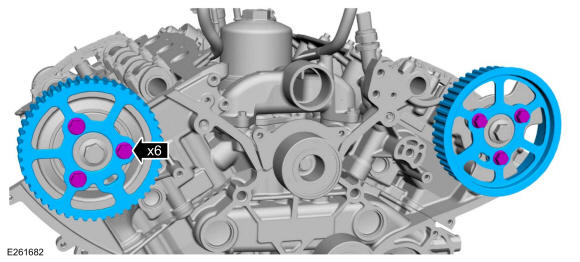

  83. NOTE: Only tighten the bolts finger tight at this stage.

    Install the camshaft pulleys and the bolts.

    GFD461828Courtesy of FORD MOTOR COMPANY

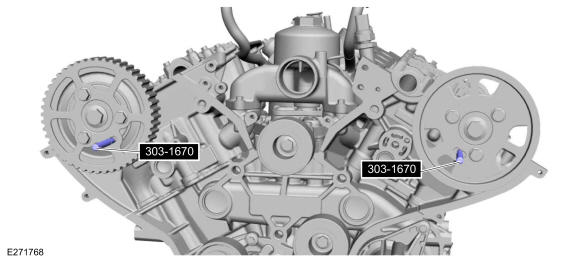

  84. Install Special Service Tool : 303-1670 Pins, Camshaft Locking.
    GFD461954Courtesy of FORD MOTOR COMPANY

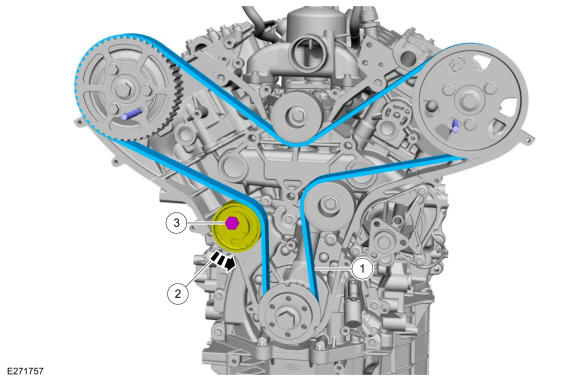

  85. NOTE: Make sure that a new component is installed.
    NOTE: It may be necessary to rotate the camshaft pulleys slightly to ensure the bolts are not at the end of the slots.

    1. Install the timing belt.
    2. Rotate the timing belt tensioner.
    3. Tighten the timing belt tensioner bolt.

      Torque: Stage 1: 177 lb.in (20 Nm) | Stage 2: 45°

    GFD461955Courtesy of FORD MOTOR COMPANY

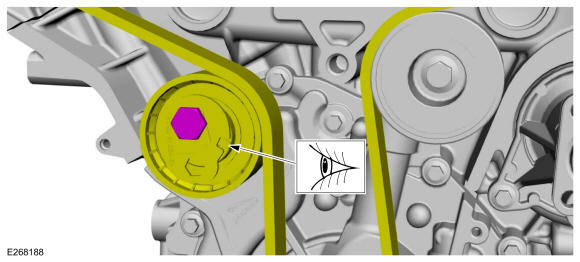

  86. If the timing belt tensioner pointer is not visible in the window, the timing belt tensioning step must be repeated.
    GFD461555Courtesy of FORD MOTOR COMPANY

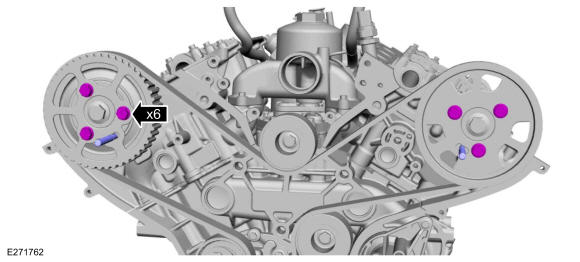

  87. Tighten the camshaft pulley bolts.

    Torque: 17 lb.ft (23 Nm)

    GFD461674Courtesy of FORD MOTOR COMPANY

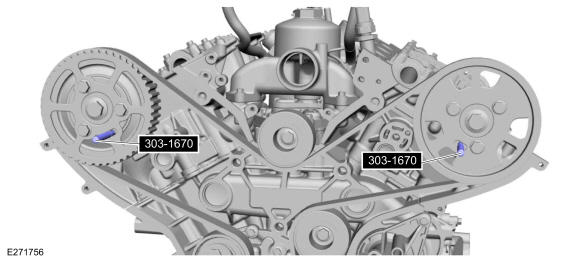

  88. Remove Special Service Tool : 303-1670 Pins, Camshaft Locking.
    GFD461827Courtesy of FORD MOTOR COMPANY
  89. Remove Special Service Tool : 303-1671 Pin, Locking Crankshaft.
    GFD461823Courtesy of FORD MOTOR COMPANY
  90. NOTE: Only rotate the crankshaft clockwise.

    This step is to verify that the timing is correct. Rotate the engine 1 7/8 revolutions.

  91. Install special tool.

    • NOTE: Only rotate the crankshaft clockwise.
      NOTE: The Locking Crankshaft Pin must be bottomed out against the cylinder block.

      Rotate the crankshaft clockwise so the crankshaft contacts the locking crankshaft pin. Use Special Service Tool : 303-1671 Pin, Locking Crankshaft.

    GFD461823Courtesy of FORD MOTOR COMPANY
  92. NOTE: The special tool can only be installed if the valve timing is correct.

    If the special tools do not install correctly, repeat the timing belt installation steps. Install Special Service Tool : 303-1670 Pins, Camshaft Locking.

    GFD461827Courtesy of FORD MOTOR COMPANY

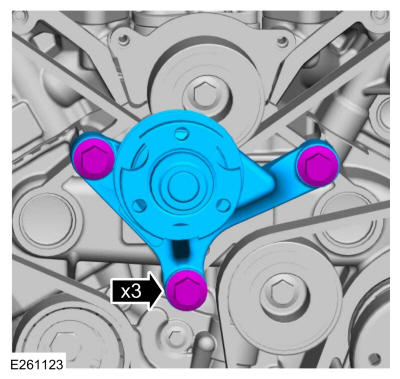

  93. Install the fan drive and the bolts.

    Torque: 61 lb.ft (83 Nm)

    GFD461545Courtesy of FORD MOTOR COMPANY

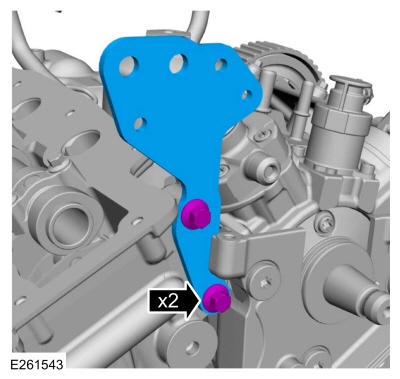

  94. Install the rear engine cover lifting bracket.

    Torque: 17 lb.ft (23 Nm)

    GFD461826Courtesy of FORD MOTOR COMPANY

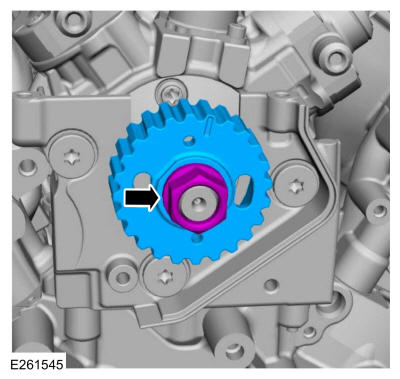

  95. NOTE: Only tighten the nut finger tight at this stage.

    Install the fuel injection pump pulley and nut.

    GFD461956Courtesy of FORD MOTOR COMPANY

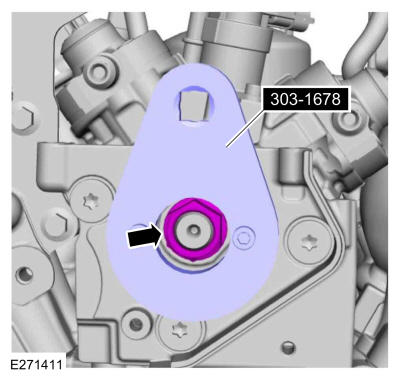

  96. Using the special tool, tighten the fuel injection pump nut. Use Special Service Tool : 303-1678 Remover, Fuel Pump Pulley Holding Tool.

    Torque: 37 lb.ft (50 Nm)

    GFD461824Courtesy of FORD MOTOR COMPANY

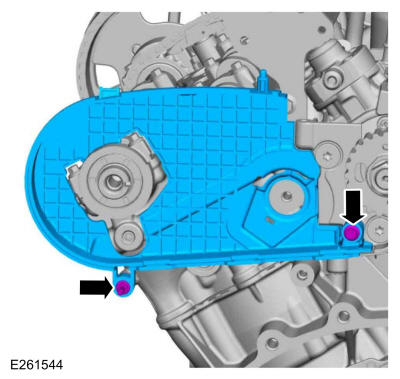

  97. NOTE: Only tighten the bolts finger tight at this stage.

    Install the accessory drive cover.

    GFD461393Courtesy of FORD MOTOR COMPANY

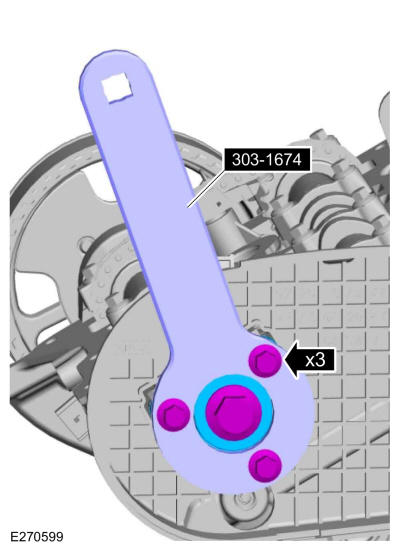

  98. NOTE: Use the original bolts for the special tool.

    Using the special tool, install the camshaft gear hub and the bolt. Use Special Service Tool : 303-1674 Tool, Holding Camshaft Sprocket.

    Torque: Stage 1: 59 lb.ft (80 Nm) | Stage 2: 80°

    GFD461957Courtesy of FORD MOTOR COMPANY

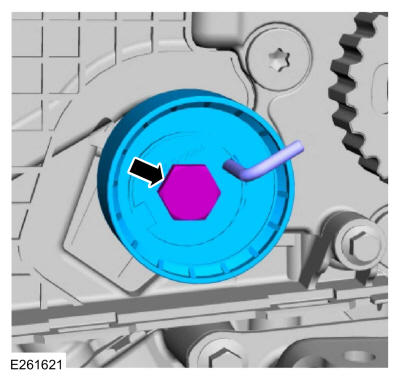

  99. Install the READ belt tensioner and the bolt.

    Torque: 17 lb.ft (23 Nm)

    GFD461392Courtesy of FORD MOTOR COMPANY

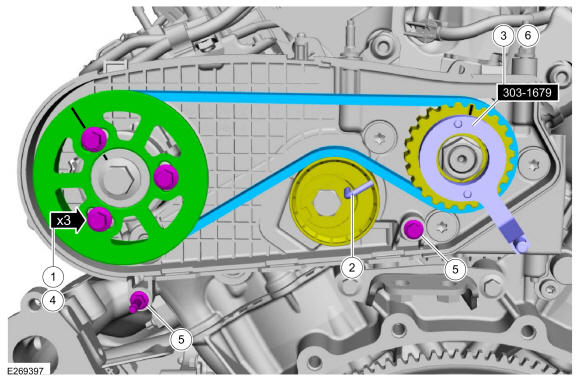

    1. NOTE: Make sure that the installation marks are aligned.
      NOTE: It may be necessary to rotate the camshaft pulley slightly to ensure the bolts are not at the end of the slots.
      NOTE: Install the camshaft pulley with the timing mark on the camshaft drive.
      NOTE: Only tighten the bolts finger tight at this stage.

      Install the READ belt, the camshaft pulley and the bolts.

    2. Remove the pin from the READ belt tensioner.
    3. Install Special Service Tool : 303-1679 Timing Tool, Fuel Pump Rear Access.
    4. Tighten the bolts for the camshaft pulley.

      Torque: 17 lb.ft (23 Nm)

    5. Tighten the bolts for the accessory drive cover.

      Torque: 89 lb.in (10 Nm)

    6. Remove Special Service Tool : 303-1679 Timing Tool, Fuel Pump Rear Access.
    GFD461958Courtesy of FORD MOTOR COMPANY
  101. Remove Special Service Tool : 303-1670 Pins, Camshaft Locking.
    GFD461827Courtesy of FORD MOTOR COMPANY
  102. Remove Special Service Tool : 303-1671 Pin, Locking Crankshaft.
    GFD461823Courtesy of FORD MOTOR COMPANY

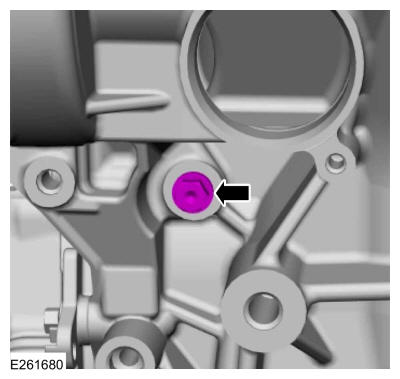

  103. Install the timing pin bolt.

    Torque: 17 lb.ft (23 Nm)

    GFD461822Courtesy of FORD MOTOR COMPANY

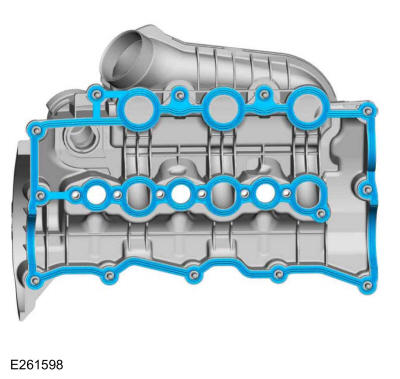

  104. Install the RH valve cover gasket.
    GFD461604Courtesy of FORD MOTOR COMPANY

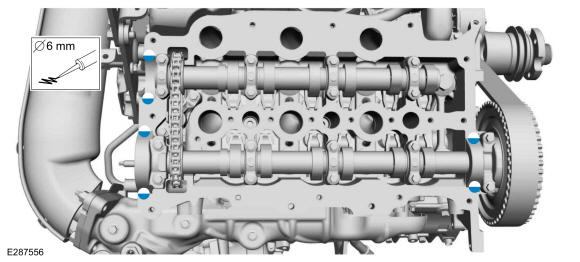

  105. NOTE: If the valve cover is not installed and the fasteners tightened within 10 minutes, the sealant must be removed and the sealing area cleaned.

    Apply an 6 mm dot of Motorcraft® High Performance Engine RTV Silicone to the locations shown below.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD461605Courtesy of FORD MOTOR COMPANY

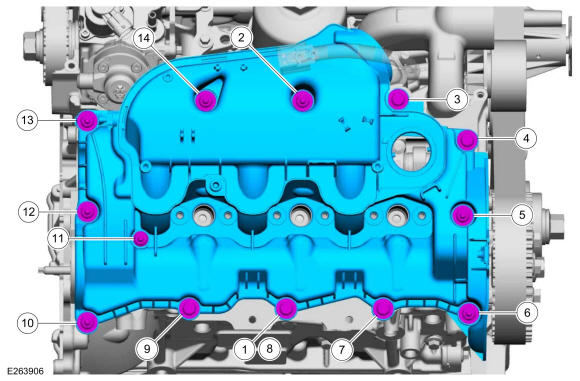

  106. Install the RH valve cover and tighten the fasteners.

    Torque: Stage 1: Tighten bolt number 1 to : 9 lb.in (1 Nm) | Stage 2: Tighten bolts 2 thru 14 to : 89 lb.in (10 Nm)

    GFD461959Courtesy of FORD MOTOR COMPANY
  107. Install the oil fill cap assembly.

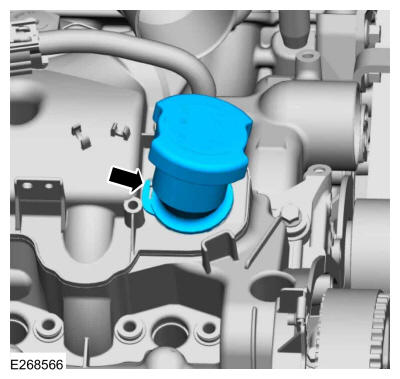

    GFD461821Courtesy of FORD MOTOR COMPANY

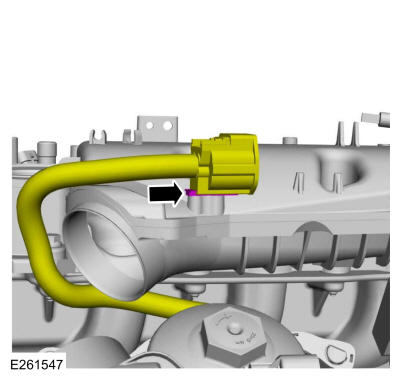

  108. Connect the RH glow plug electrical connector.
    GFD461600Courtesy of FORD MOTOR COMPANY

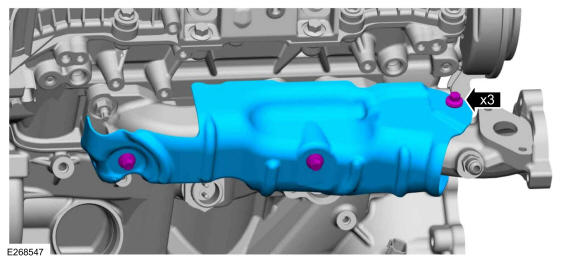

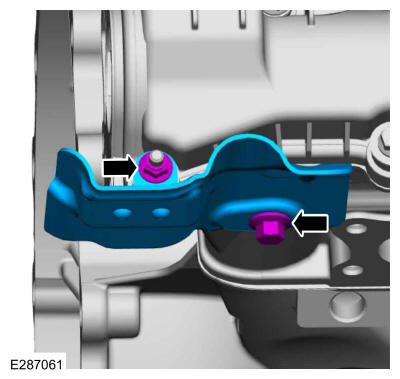

  109. Install the turbocharger heat shield, the nut and the bolt.

    Torque: Nut : 53 lb.in (6 Nm) Bolt : 18 lb.ft (24 Nm)

    GFD461709Courtesy of FORD MOTOR COMPANY

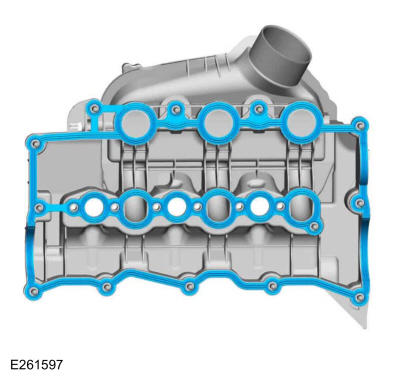

  110. Install the LH valve cover gasket.
    GFD461584Courtesy of FORD MOTOR COMPANY

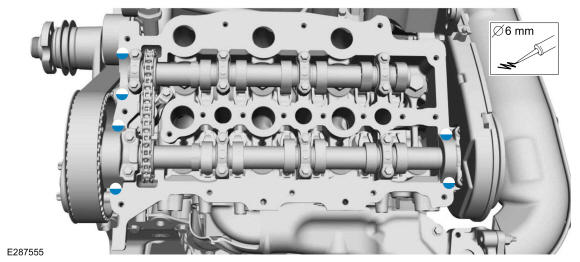

  111. NOTE: If the valve cover is not installed and the fasteners tightened within 10 minutes, the sealant must be removed and the sealing area cleaned.

    Apply an 6 mm dot of Motorcraft® High Performance Engine RTV Silicone to the locations shown below.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD461585Courtesy of FORD MOTOR COMPANY

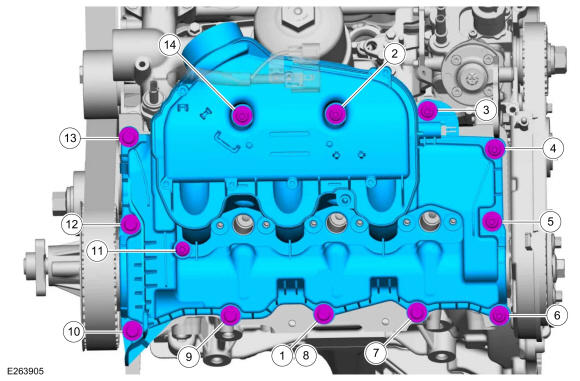

  112. Install the LH valve cover and tighten the fasteners.

    Torque: Stage 1: Tighten bolt number 1 to : 9 lb.in (1 Nm) | Stage 2: Tighten bolts 2 thru 14 to : 89 lb.in (10 Nm)

    GFD461960Courtesy of FORD MOTOR COMPANY

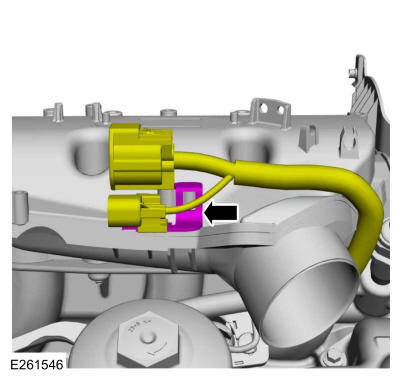

  113. Connect the LH glow plug electrical connector.
    GFD461580Courtesy of FORD MOTOR COMPANY

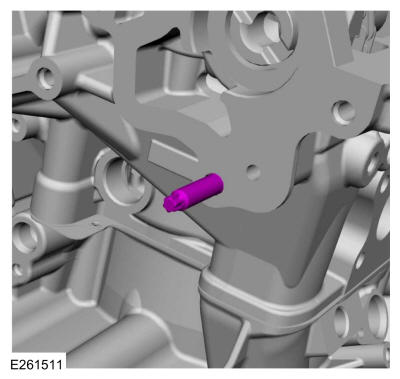

  114. Install the vacuum pump stud.

    Torque: 115 lb.in (13 Nm)

    GFD461961Courtesy of FORD MOTOR COMPANY

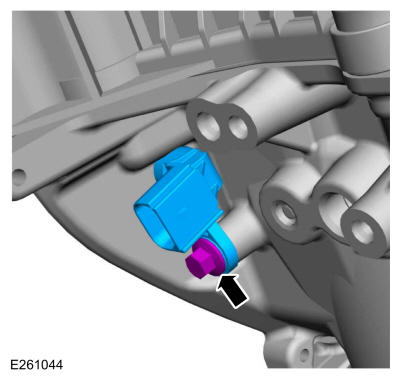

  115. Install the CMP sensor and the bolt.

    Torque: 89 lb.in (10 Nm)

    GFD461819Courtesy of FORD MOTOR COMPANY

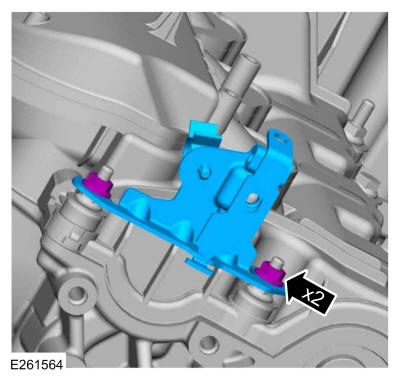

  116. Install the RH fuel tube bracket and the nuts.

    Torque: 89 lb.in (10 Nm)

    GFD461598Courtesy of FORD MOTOR COMPANY

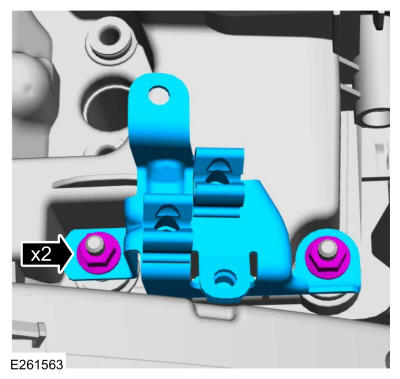

  117. Install the LH fuel tube bracket and the nuts.

    Torque: 89 lb.in (10 Nm)

    GFD461578Courtesy of FORD MOTOR COMPANY

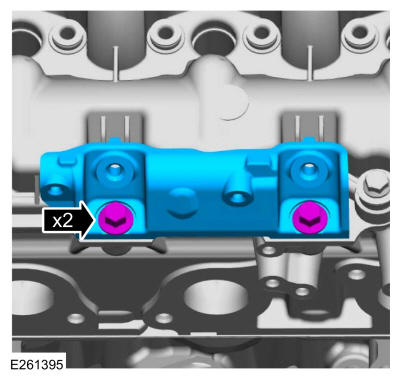

  118. Install the RH fuel rail bracket and the bolts.

    Torque: 17 lb.ft (23 Nm)

    GFD461708Courtesy of FORD MOTOR COMPANY

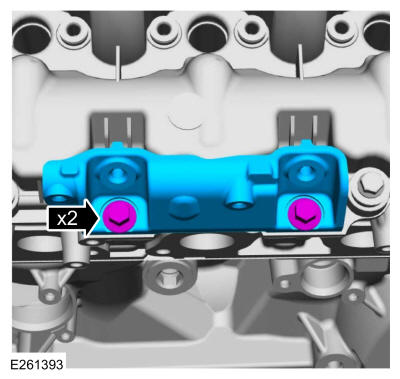

  119. Install the LH fuel rail bracket and the bolts.

    Torque: 17 lb.ft (23 Nm)

    GFD461669Courtesy of FORD MOTOR COMPANY
  120. Install the sealing washer, the O-rings and the fuel injector hold down.
    GFD461962Courtesy of FORD MOTOR COMPANY
  121. NOTE: Only tighten the bolts finger tight at this stage.

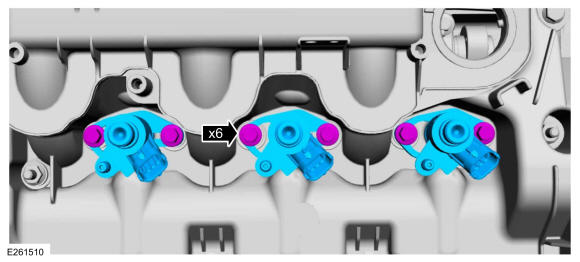

    Install the RH fuel injectors and bolts.

    GFD461707Courtesy of FORD MOTOR COMPANY
  122. NOTE: Only tighten the bolts finger tight at this stage.

    Install the LH fuel injectors and bolts.

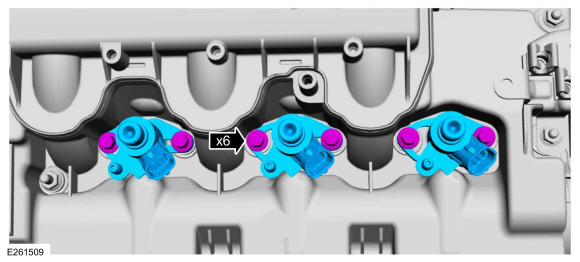

    GFD461666Courtesy of FORD MOTOR COMPANY
  123. Install the LH fuel injector noise insulator.

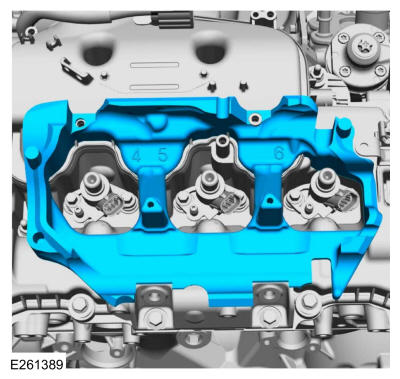

    GFD461665Courtesy of FORD MOTOR COMPANY
  124. Install the RH fuel injector noise insulator.
    GFD461706Courtesy of FORD MOTOR COMPANY

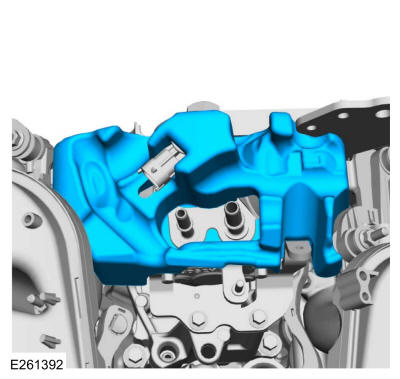

  125. Install the fuel injection pump noise insulator.
    GFD461963Courtesy of FORD MOTOR COMPANY

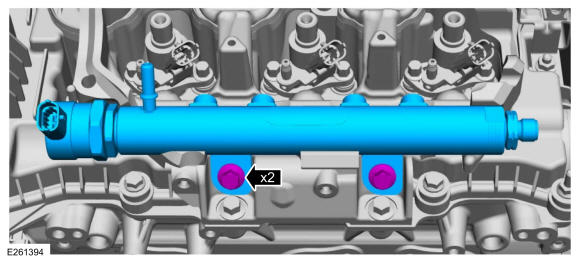

  126. NOTE: Only tighten the bolts finger tight at this stage.

    Install the LH fuel rail and the bolts.

    GFD461664Courtesy of FORD MOTOR COMPANY
  127. NOTE: Only tighten the bolts finger tight at this stage.

    Install the RH fuel rail and the bolts.

    GFD461705Courtesy of FORD MOTOR COMPANY

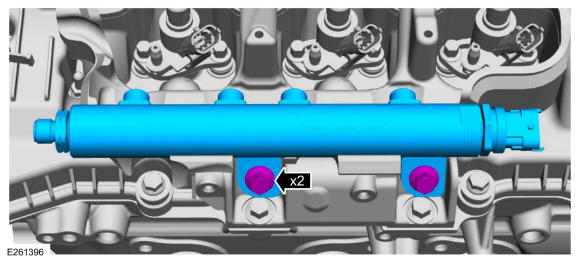

  128. NOTE: The component must be installed by hand before final tightening.

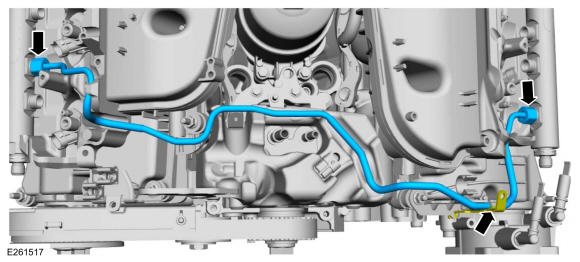

    Install the fuel injection pump balance tube.

    GFD461964Courtesy of FORD MOTOR COMPANY
  129. NOTE: The component must be installed by hand before final tightening.

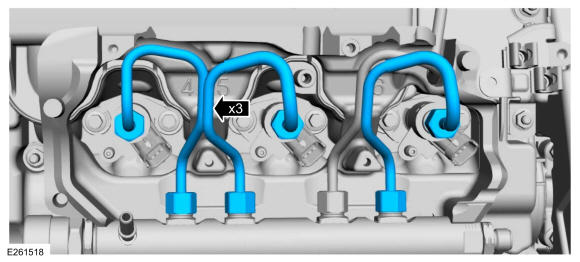

    Install the LH fuel injector supply tubes.

    GFD461965Courtesy of FORD MOTOR COMPANY
  130. NOTE: The component must be installed by hand before final tightening.

    Install the LH fuel rail supply tube.

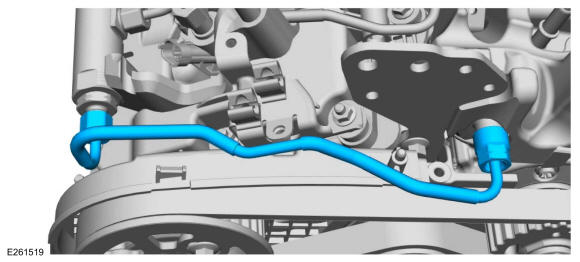

    GFD461966Courtesy of FORD MOTOR COMPANY
  131. NOTE: Only tighten the bolts finger tight at this stage.

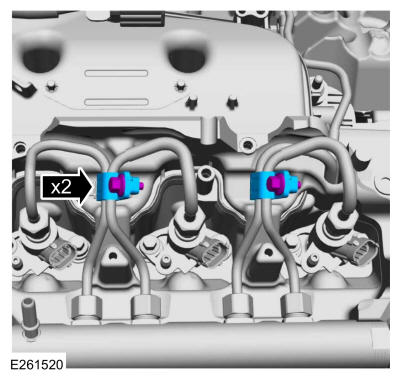

    Install the LH fuel injector supply tube clamps.

    GFD461967Courtesy of FORD MOTOR COMPANY

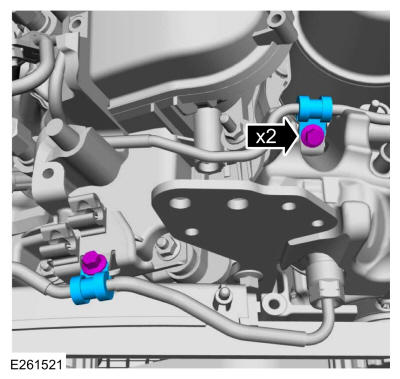

  132. NOTE: Only tighten the bolts finger tight at this stage.

    Install the fuel tube clamps and the bolts.

    GFD461968Courtesy of FORD MOTOR COMPANY
  133. NOTE: The component must be installed by hand before final tightening.

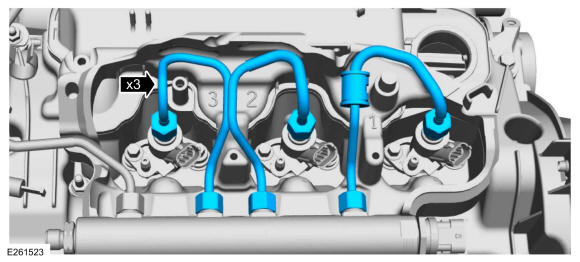

    Install the RH fuel injector supply tubes.

    GFD461969Courtesy of FORD MOTOR COMPANY

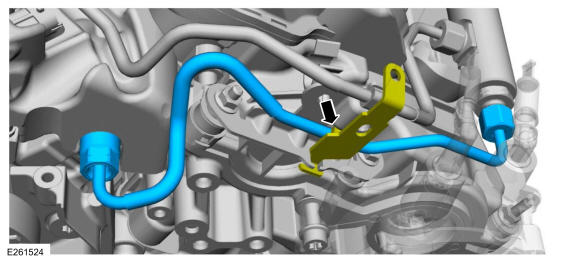

  134. NOTE: The component must be installed by hand before final tightening.

    Install the RH fuel rail supply tube.

    GFD461970Courtesy of FORD MOTOR COMPANY

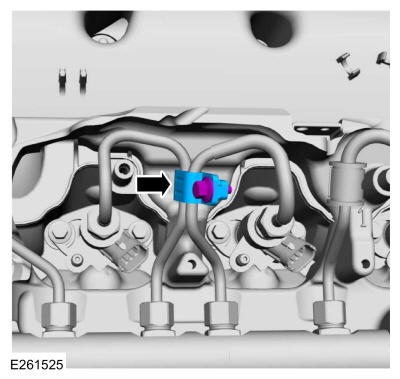

  135. NOTE: Only tighten the bolt finger tight at this stage.

    Install the RH fuel injector supply tube clamp.

    GFD461971Courtesy of FORD MOTOR COMPANY

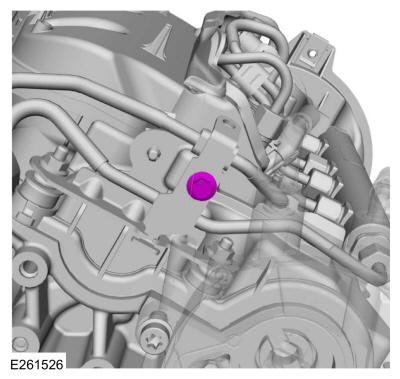

  136. NOTE: Only tighten the bolt finger tight at this stage.

    Install the fuel tube bracket bolt.

    GFD461815Courtesy of FORD MOTOR COMPANY

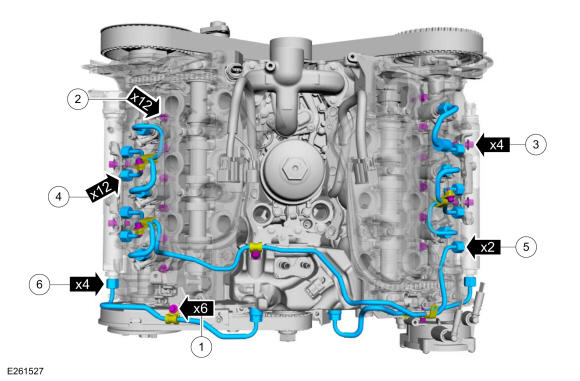

    1. Tighten the fuel tube clamp bolts.

      Torque: 89 lb.in (10 Nm)

    2. NOTE: Tighten the fuel injector hold down bolts evenly.

      Tighten the fuel injector hold down bolts.

      Torque: 89 lb.in (10 Nm)

    3. Tighten the fuel rail bolts.

      Torque: 17 lb.ft (23 Nm)

    4. Tighten the fuel injector supply tubes.

      Torque: Stage 1: Tighten at the fuel rail: 89 lb.in (10 Nm) | Stage 2: Tighten at the fuel injector: 89 lb.in (10 Nm) | Stage 3: Tighten at the fuel rail: 142 lb.in (16 Nm) | Stage 4: Tighten at the fuel injector: 142 lb.in (16 Nm) | Stage 5: Tighten at the fuel rail: 50° | Stage 6: Tighten at the fuel injector: 50°

    5. Tighten the fuel injection pump balance tube.

      Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 142 lb.in (16 Nm) | Stage 3: 50°

    6. Tighten the fuel rail supply tubes.

      Torque: Stage 1: Tighten at the fuel rail: 89 lb.in (10 Nm) | Stage 2: Tighten at the fuel injection pump: 89 lb.in (10 Nm) | Stage 3: Tighten at the fuel rail: 142 lb.in (16 Nm) | Stage 4: Tighten at the fuel injection pump: 142 lb.in (16 Nm) | Stage 5: Tighten at the fuel rail: 50° | Stage 6: Tighten at the fuel injection pump: 50°

    GFD461972Courtesy of FORD MOTOR COMPANY
  138. Install the fuel return hose assembly.

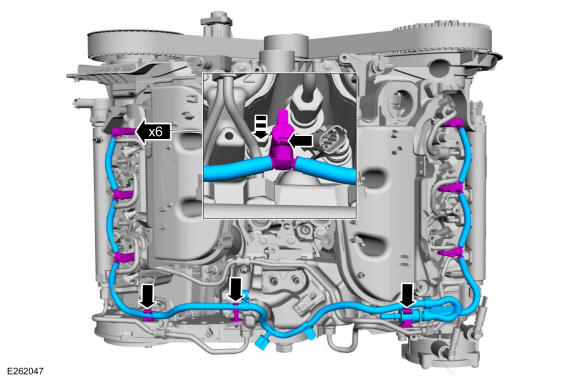

    GFD461973Courtesy of FORD MOTOR COMPANY

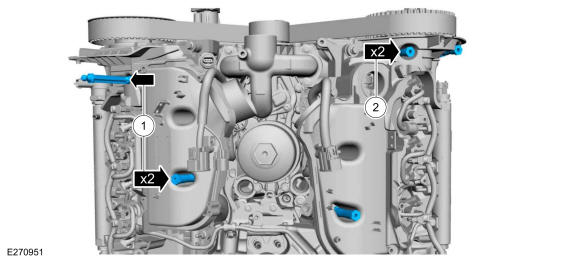

  139. Install the engine cover stud assemblies.

    Torque: 1 : 44 lb.in (5 Nm) 2 : 62 lb.in (7 Nm)

    GFD461974Courtesy of FORD MOTOR COMPANY

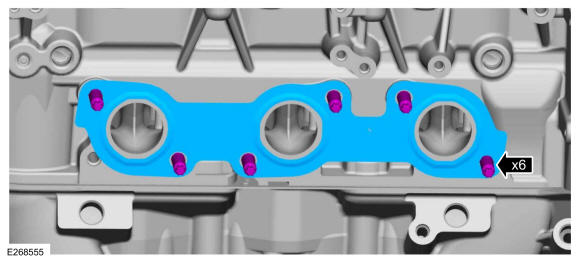

    • Install the RH exhaust manifold studs as needed.

      Torque: 115 lb.in (13 Nm)

    • Install the new RH exhaust manifold gasket.

    GFD461975Courtesy of FORD MOTOR COMPANY

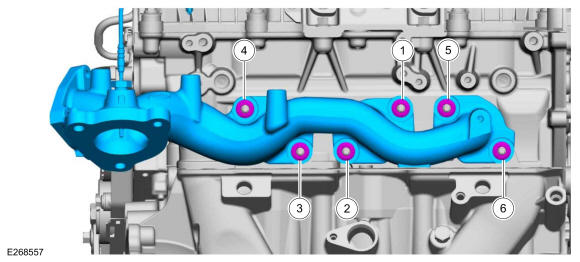

  141. Install the RH exhaust manifold and the nuts.

    Torque: Tighten the nuts in the sequence shown below to: : 21 lb.ft (28 Nm) Tighten the nuts in the following order 1, 2, 3, 5, 1, 2 to: : 21 lb.ft (28 Nm)

    GFD461976Courtesy of FORD MOTOR COMPANY

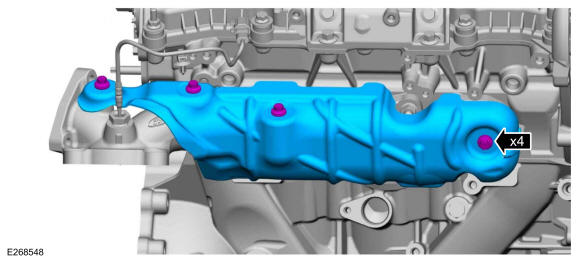

  142. Install the RH exhaust manifold heat shield and the bolts.

    Torque: 97 lb.in (11 Nm)

    GFD461977Courtesy of FORD MOTOR COMPANY
    • Install the LH exhaust manifold studs as needed.

      Torque: 115 lb.in (13 Nm)

    • Install the new LH exhaust manifold gasket.

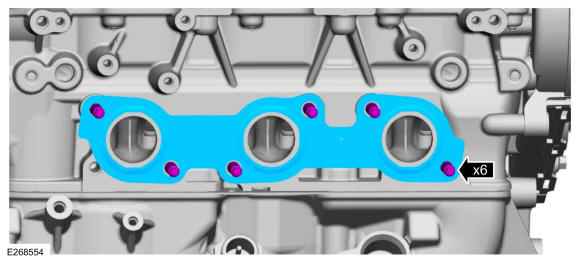

    GFD461978Courtesy of FORD MOTOR COMPANY

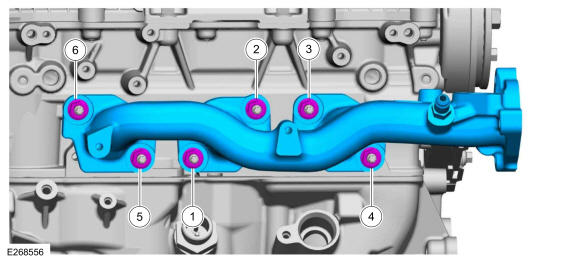

  144. Install the LH exhaust manifold and the nuts.

    Torque: Tighten the nuts in the sequence shown below to: : 21 lb.ft (28 Nm) Tighten the nuts in the following order 1, 2, 3, 5, 1, 2 to: : 21 lb.ft (28 Nm)

    GFD461979Courtesy of FORD MOTOR COMPANY
  145. Install the LH exhaust manifold heat shield and the bolts.

    Torque: 97 lb.in (11 Nm)

    GFD461980Courtesy of FORD MOTOR COMPANY
  146. Install the engine support bracket and the retainers.

    Torque: 62 lb.in (7 Nm)

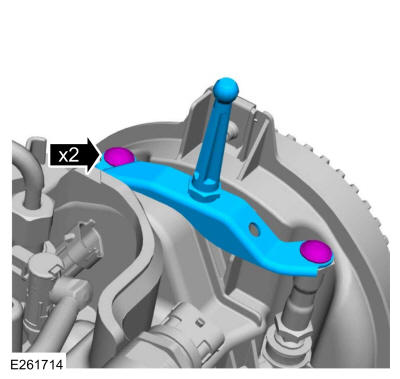

    GFD461699Courtesy of FORD MOTOR COMPANY

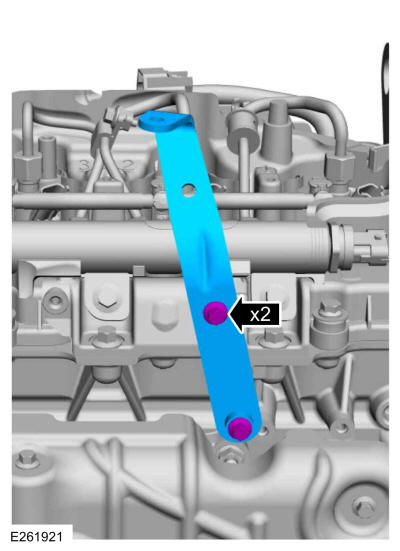

  147. Install the heater hose support bracket and the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD461698Courtesy of FORD MOTOR COMPANY

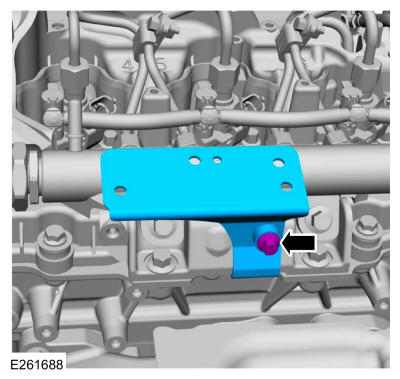

  148. Install the wire harness bracket and the bolt.

    Torque: 89 lb.in (10 Nm)

    GFD461659Courtesy of FORD MOTOR COMPANY
  149. Install new gaskets on the intake manifold. Lubricate the gaskets with clean engine oil.

    Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)

    GFD461507Courtesy of FORD MOTOR COMPANY
  150. NOTE: Install the intake manifold into the LH valve cover, then into the RH valve cover.

    Install the intake manifold, the stud bolt and the bolt.

    Torque: 89 lb.in (10 Nm)

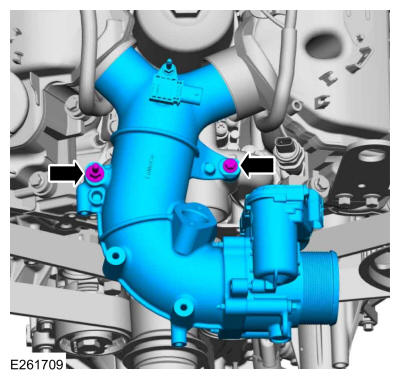

    GFD461658Courtesy of FORD MOTOR COMPANY
  151. Install the front engine lifting eye and the bolts.

    Torque: 17 lb.ft (23 Nm)

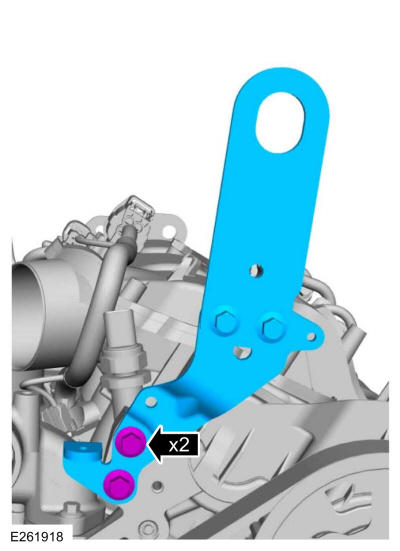

    GFD461657Courtesy of FORD MOTOR COMPANY
  152. Install the fuel return tube assembly. Refer to: QUICK RELEASE COUPLING

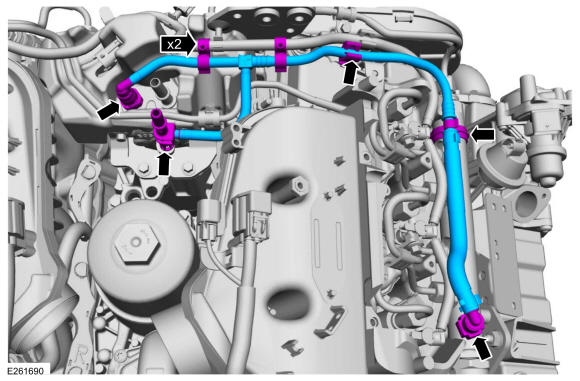

    GFD461981Courtesy of FORD MOTOR COMPANY

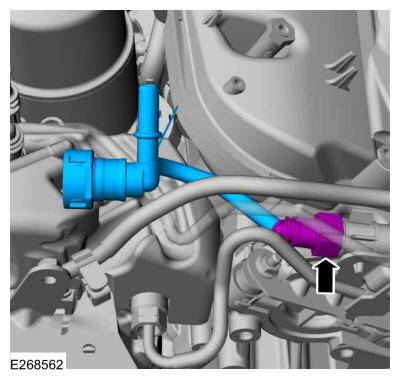

  153. Install the fuel supply tube. Refer to: QUICK RELEASE COUPLING
    GFD461697Courtesy of FORD MOTOR COMPANY
  154. Install the fuel supply tube and the bolt. Refer to: QUICK RELEASE COUPLING

    Torque: 17 lb.ft (23 Nm)

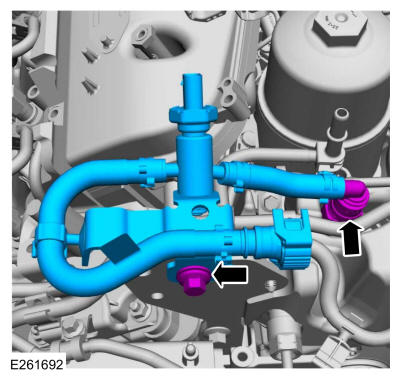

    GFD461655Courtesy of FORD MOTOR COMPANY
  155. Install the accessory drive cover and the stud bolts.

    Torque: 89 lb.in (10 Nm)

    GFD461654Courtesy of FORD MOTOR COMPANY

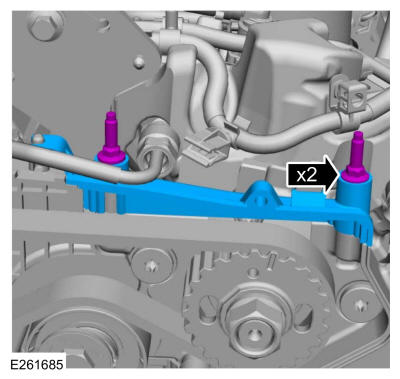

  156. Install the accessory drive cover.

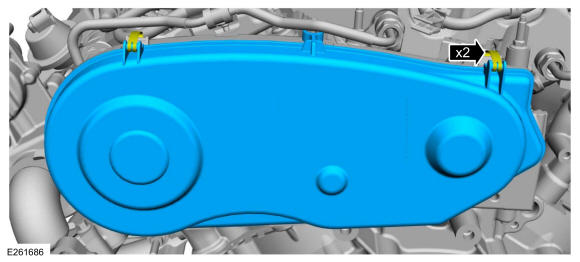

    GFD461653Courtesy of FORD MOTOR COMPANY

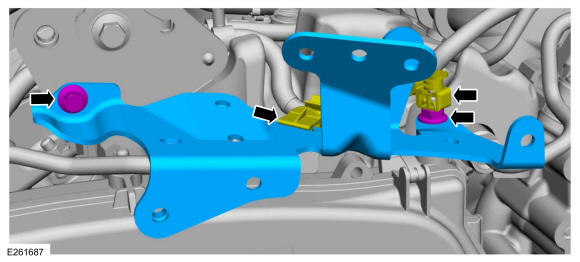

  157. Install the wiring harness bracket, the nut and the bolt. Connect the retainers.

    Torque: 89 lb.in (10 Nm)

    GFD461652Courtesy of FORD MOTOR COMPANY
  158. Install the secondary fuel filter and the bolt. Connect the fuel line. Refer to: QUICK RELEASE COUPLING

    Torque: 89 lb.in (10 Nm)

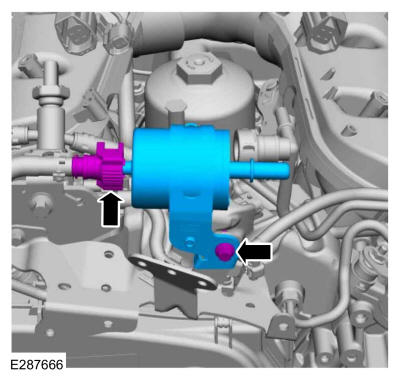

    GFD461982Courtesy of FORD MOTOR COMPANY
  159. Install a new O-ring seal and lubricate.

    Material: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

    GFD461983Courtesy of FORD MOTOR COMPANY
  160. Install the coolant inlet connector and the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD461804Courtesy of FORD MOTOR COMPANY
  161. Install the EGR cooler brackets and the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD461803Courtesy of FORD MOTOR COMPANY
  162. NOTE: Only tighten the bolts finger tight at this stage.

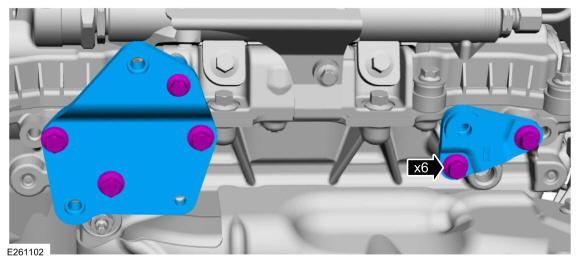

    Install the EGR cooler and the bolts.

    GFD461984Courtesy of FORD MOTOR COMPANY

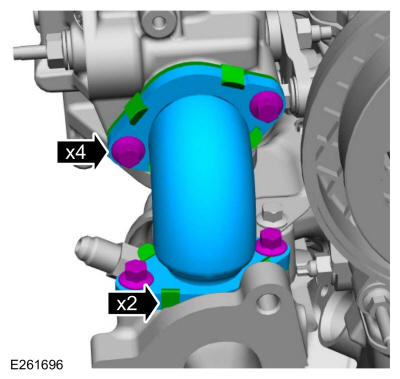

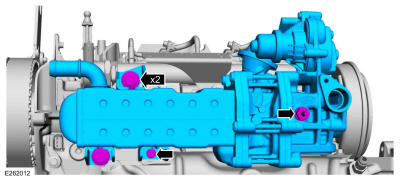

  163. Using new gaskets, install the EGR cooler-to-exhaust manifold pipe and the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD461487Courtesy of FORD MOTOR COMPANY

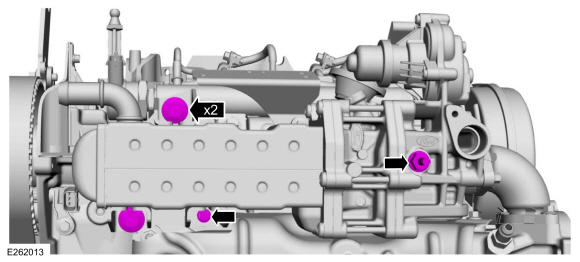

  164. Tighten the EGR cooler bolts.

    Torque: M6 bolt: 89 lb.in (10 Nm) M8 bolt: 17 lb.ft (23 Nm)

    GFD461985Courtesy of FORD MOTOR COMPANY
  165. Install the O-ring and the grommet on the EGR cooler coolant tube and lubricate.

    Material: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

    GFD461488Courtesy of FORD MOTOR COMPANY

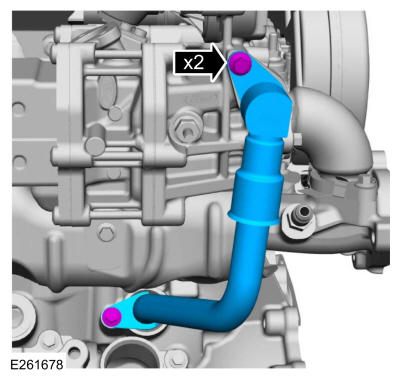

  166. Install the EGR cooler coolant tube and the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD461478Courtesy of FORD MOTOR COMPANY
  167. NOTE: Lubricate the O-ring seal prior to installing the oil level indicator tube.

    • Install the oil level indicator tube, the stud bolt and the bolt.

      Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)

      Torque: M6 stud bolt: 89 lb.in (10 Nm) M8 bolt: 17 lb.ft (23 Nm)

    • Connect the wire retainers to the oil level indicator tube.

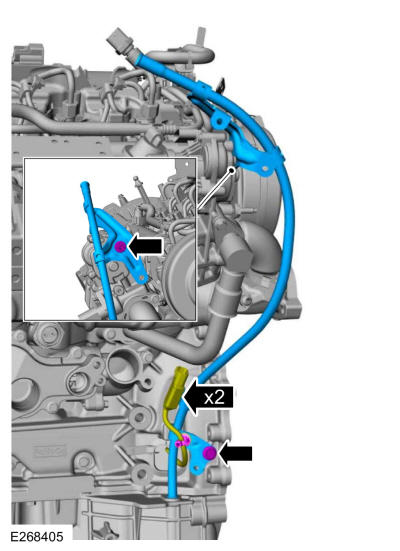

    GFD461476Courtesy of FORD MOTOR COMPANY

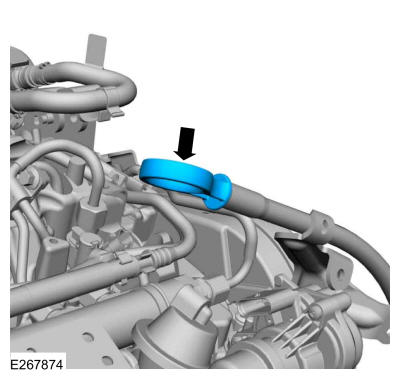

  168. Install the oil level indicator.
    GFD461475Courtesy of FORD MOTOR COMPANY

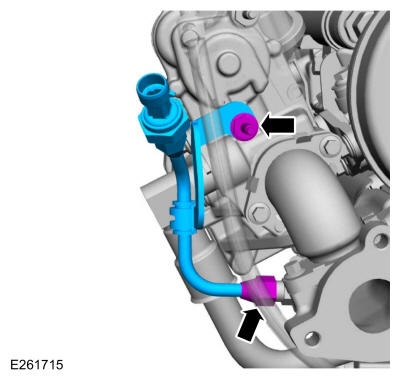

  169. Install the EP (exhaust pressure) sensor tube and hand start the tube nut. Install the stud bolt.

    Torque: M6 stud bolt: 89 lb.in (10 Nm) Tube nut : 177 lb.in (20 Nm)

    GFD461477Courtesy of FORD MOTOR COMPANY

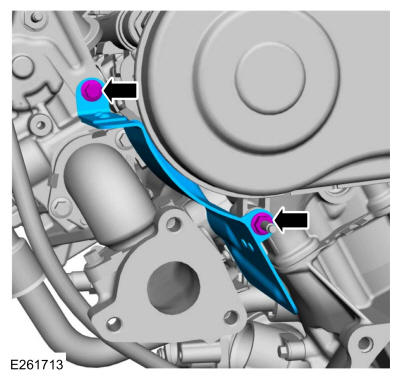

  170. Install the LH exhaust manifold shield, the nut and the bolt.

    Torque: 89 lb.in (10 Nm)

    GFD461474Courtesy of FORD MOTOR COMPANY
  171. Install the front fuel tube support bracket and the nut.

    Torque: 89 lb.in (10 Nm)

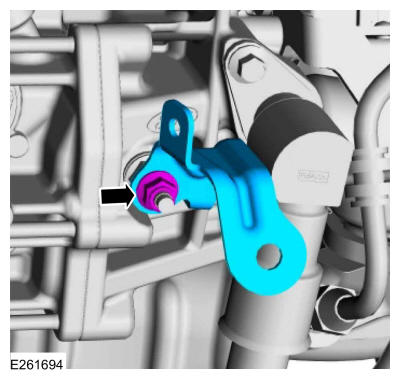

    GFD461649Courtesy of FORD MOTOR COMPANY

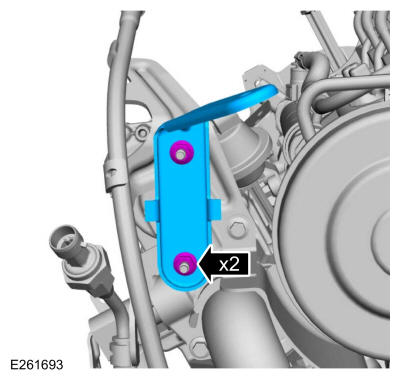

  172. Install the fuel tube support bracket and the nuts.

    Torque: 89 lb.in (10 Nm)

    GFD461473Courtesy of FORD MOTOR COMPANY

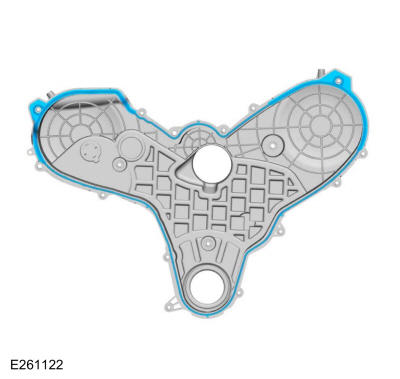

  173. Install a new timing belt cover gasket.
    GFD461569Courtesy of FORD MOTOR COMPANY

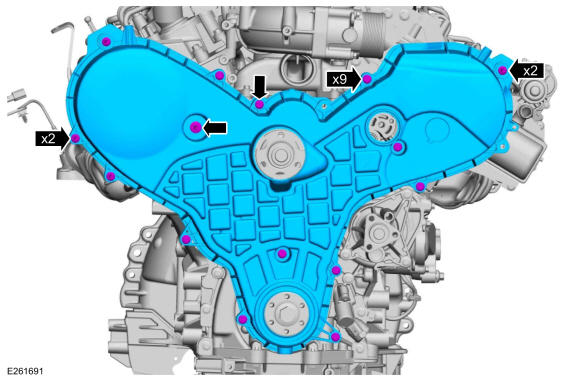

  174. Install the timing belt cover, the stud bolts and the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD461567Courtesy of FORD MOTOR COMPANY

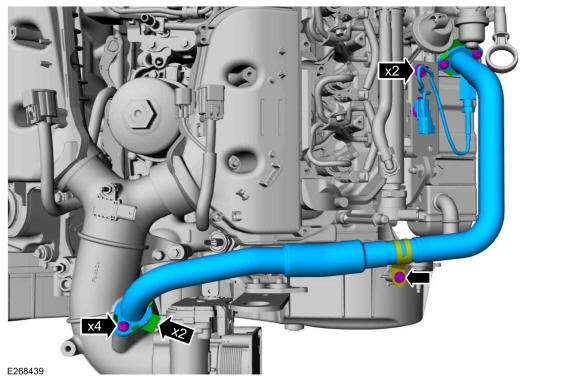

    • Using new gaskets, install the EGR outlet tube and the bolts.

      Torque: 89 lb.in (10 Nm)

    • Install the retainer in the timing belt cover.

      Torque: 31 lb.in (3.5 Nm)

    • Connect the wire retainers.

    GFD461986Courtesy of FORD MOTOR COMPANY

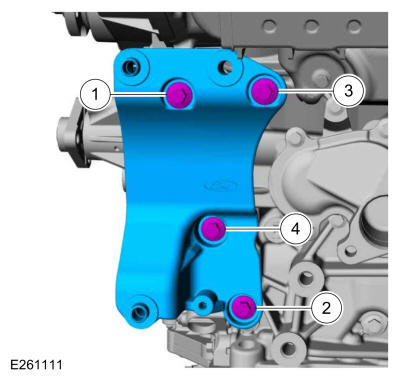

  176. Install the generator mounting bracket and the bolts.

    Torque: Install and tighten bolts 1 and 2 to: : 17 lb.ft (23 Nm) Install and tighten bolts 3 and 4 to: : 17 lb.ft (23 Nm)

    GFD461987Courtesy of FORD MOTOR COMPANY
  177. Install the A/C mounting bracket and the bolts.

    Torque: Install and tighten bolts 1 and 2 to: : 17 lb.ft (23 Nm) Install and tighten bolts 3 and 4 to: : 17 lb.ft (23 Nm) Install and tighten bolts 5 and 6 to: : 17 lb.ft (23 Nm)

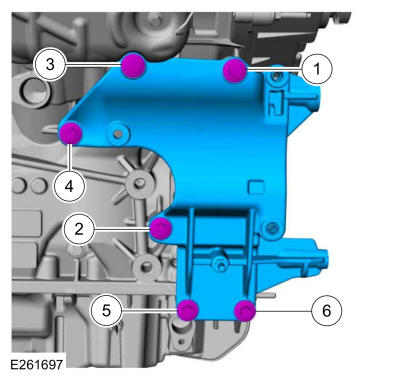

    GFD461988Courtesy of FORD MOTOR COMPANY
  178. Install the coolant pump pulley and the bolts.

    Torque: 18 lb.ft (25 Nm)

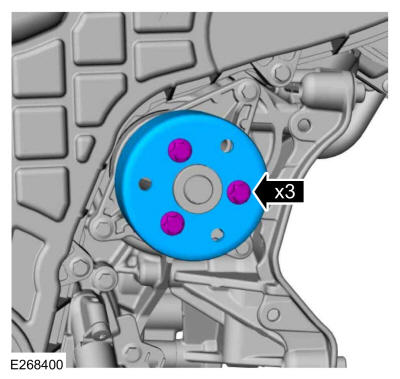

    GFD461800Courtesy of FORD MOTOR COMPANY

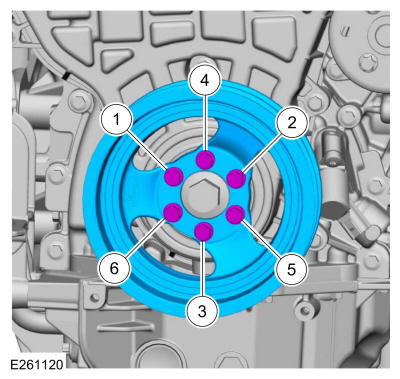

  179. Install the crankshaft vibration damper and the bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD461433Courtesy of FORD MOTOR COMPANY
  180. Install the accessory drive belt tensioner and the bolts.

    Torque: 18 lb.ft (25 Nm)

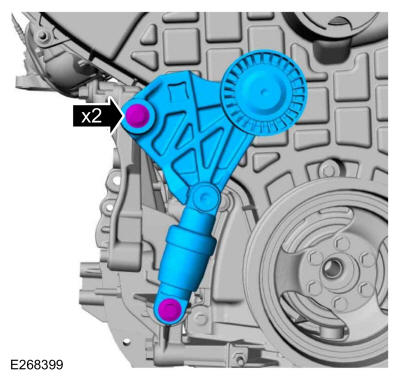

    GFD461647Courtesy of FORD MOTOR COMPANY
  181. Install the CAC bracket and the nuts.

    Torque: 53 lb.in (6 Nm)

    GFD461646Courtesy of FORD MOTOR COMPANY

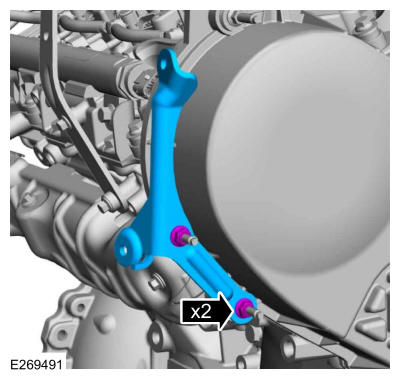

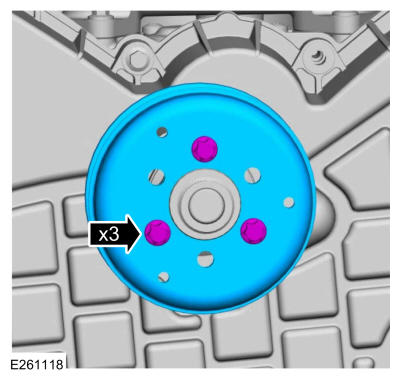

  182. Install the fan pulley and the bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD461564Courtesy of FORD MOTOR COMPANY

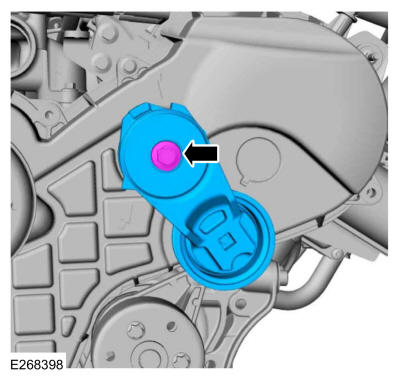

  183. Install the accessory drive belt tensioner and the bolt.

    Torque: 35 lb.ft (48 Nm)

    GFD461645Courtesy of FORD MOTOR COMPANY
  184. Install the coolant tube assembly O-rings and lubricate.

    Material: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

    GFD461989Courtesy of FORD MOTOR COMPANY

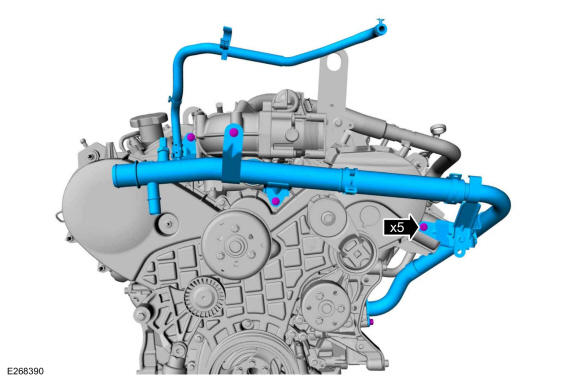

  185. Install the coolant tube assembly and the bolts.

    Torque: M6 bolt: 89 lb.in (10 Nm) M8 bolt: 18 lb.ft (25 Nm)

    GFD461798Courtesy of FORD MOTOR COMPANY
  186. Install the EGR cooler coolant hose and the clamps. Use the General Equipment: Hose Clamp Remover/Installer
    GFD461797Courtesy of FORD MOTOR COMPANY

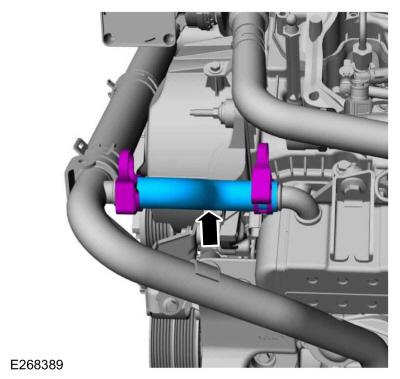

  187. Install the coolant tube O-ring seal and lubricate.

    Material: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

    GFD461990Courtesy of FORD MOTOR COMPANY

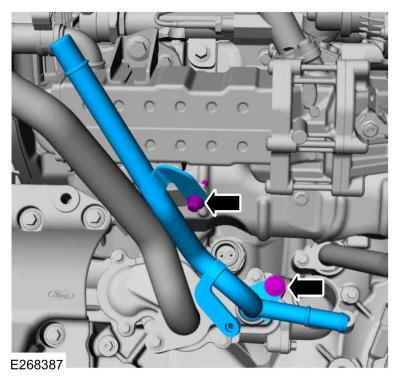

  188. Install the coolant tube and the bolts.

    Torque: M6 bolt: 71 lb.in (8 Nm) M8 bolt: 18 lb.ft (25 Nm)

    GFD461795Courtesy of FORD MOTOR COMPANY

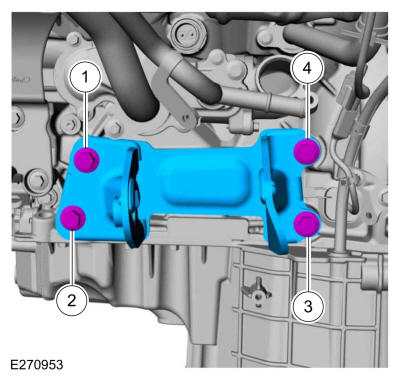

  189. Install the LH engine mount bracket and the bolts.

    Torque: 76 lb.ft (103 Nm)

    GFD461991Courtesy of FORD MOTOR COMPANY
  190. Install the RH engine mount bracket and the bolts.

    Torque: 85 lb.ft (115 Nm)

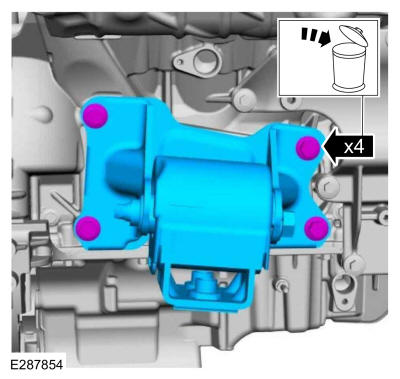

    GFD461793Courtesy of FORD MOTOR COMPANY

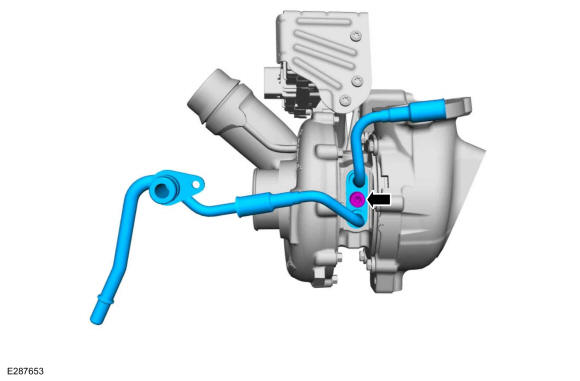

  191. Lubricate the O-ring seals with clean engine coolant. Install the new turbocharger coolant tube manifold and the bolt.

    Material: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

    Torque: 89 lb.in (10 Nm)

    GFD461992Courtesy of FORD MOTOR COMPANY
  192. Install the turbocharger studs and the gasket.

    Torque: 115 lb.in (13 Nm)

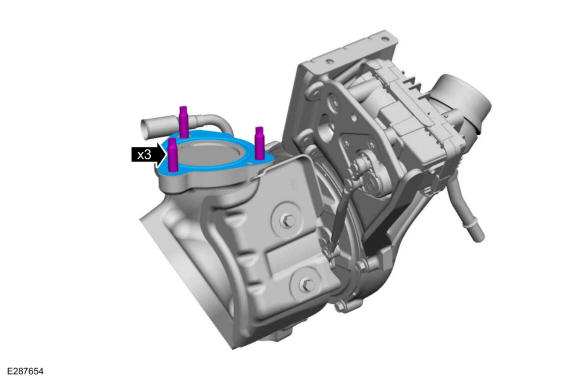

    GFD461993Courtesy of FORD MOTOR COMPANY

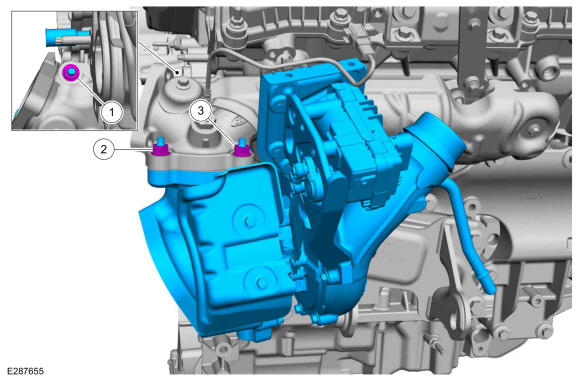

  193. Install the turbocharger and the nuts.

    Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 18 lb.ft (24 Nm)

    GFD461994Courtesy of FORD MOTOR COMPANY

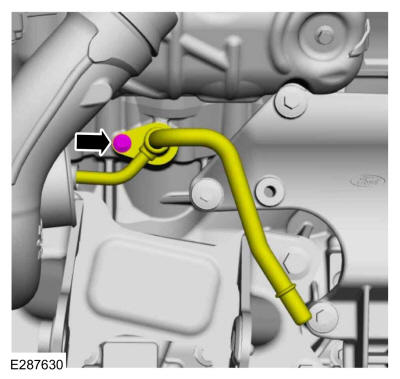

  194. Position back the turbocharger coolant supply tube into the engine and install the bolt.

    Torque: 89 lb.in (10 Nm)

    GFD461693Courtesy of FORD MOTOR COMPANY
  195. NOTE: Fully seat the turbocharger oil return tube O-rings into the turbocharger and engine bore holes prior to fastener tightening.

    Lubricate the turbocharger oil return tube with clean engine oil. Install the turbocharger oil return tube and the bolts.

    Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)

    Torque: 89 lb.in (10 Nm)

    GFD461995Courtesy of FORD MOTOR COMPANY

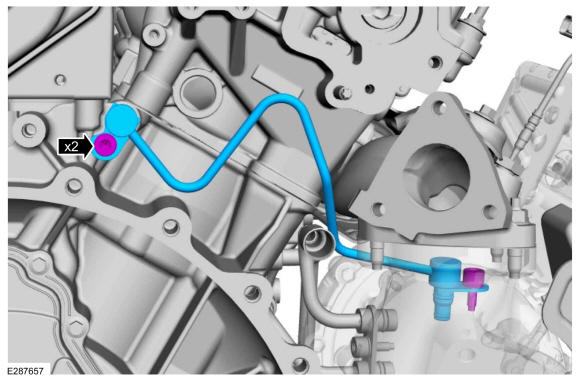

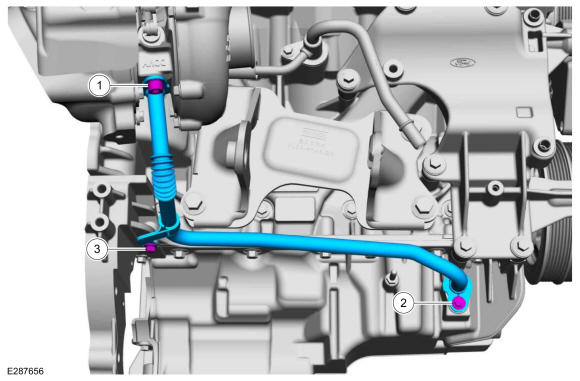

  196. NOTE: Fully seat the turbocharger oil supply tube O-rings into the turbocharger and engine bore holes prior to fastener tightening.

    Lubricate the turbocharger oil supply tube O-rings with clean engine oil. Install the turbocharger oil supply tube and the bolts.

    Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)

    Torque: 89 lb.in (10 Nm)

    GFD461996Courtesy of FORD MOTOR COMPANY
  197. Install a new turbocharger coolant return tube O-ring seal. Lubricate the new O-ring seal and the tube sealing surface with clean engine coolant.

    Material: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

    GFD461997Courtesy of FORD MOTOR COMPANY

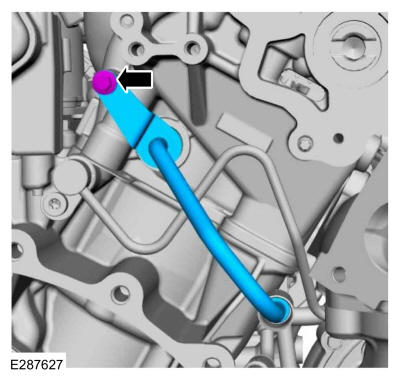

  198. Install the coolant return tube and the bolt.

    Torque: 89 lb.in (10 Nm)

    GFD461690Courtesy of FORD MOTOR COMPANY

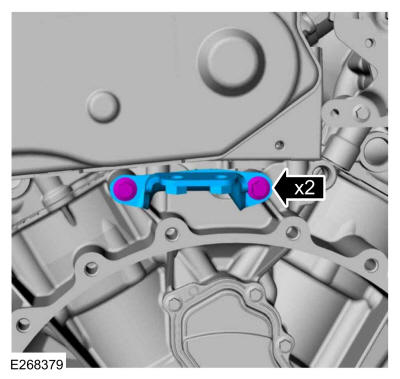

  199. Install the exhaust crossover pipe bracket and the bolts.

    Torque: 17 lb.ft (23 Nm)

    GFD461792Courtesy of FORD MOTOR COMPANY

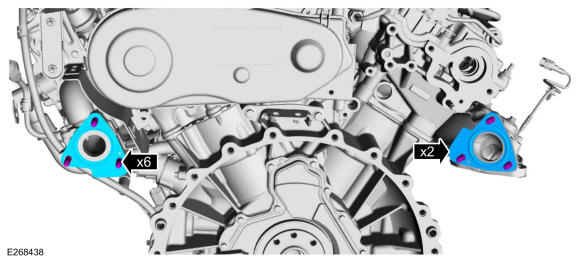

  200. Install the studs and the exhaust crossover pipe gaskets.

    Torque: 115 lb.in (13 Nm)

    GFD461998Courtesy of FORD MOTOR COMPANY
  201. NOTE: If any snaps become undone on the exhaust crossover pipe wrap. Install a new exhaust crossover pipe wrap.

    Install the exhaust crossover pipe, the nuts and the bolts.

    • Hand start the RH exhaust manifold nuts.

    • Hand start the LH exhaust manifold nuts.

    • Hand start the exhaust crossover pipe bracket bolts.

    • Tighten the RH exhaust manifold nuts in the following sequence: 1, 2, 3, 1, 2.

      Torque: 18 lb.ft (24 Nm)

    • Tighten the LH exhaust manifold nuts in the following sequence: 1, 2, 3, 1, 2.

      Torque: 18 lb.ft (24 Nm)

    • Tighten the exhaust crossover pipe bracket bolts in the sequence shown below.

      Torque: 18 lb.ft (24 Nm)

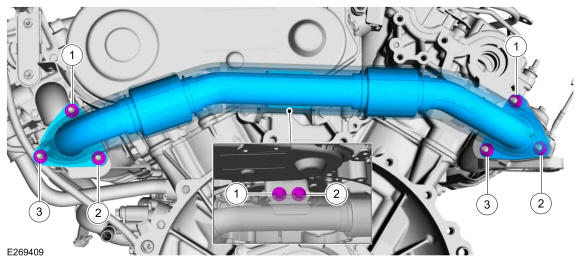

    Fig 2: Exhaust Crossover Pipe Tightening Sequence
    GFD461999Courtesy of FORD MOTOR COMPANY

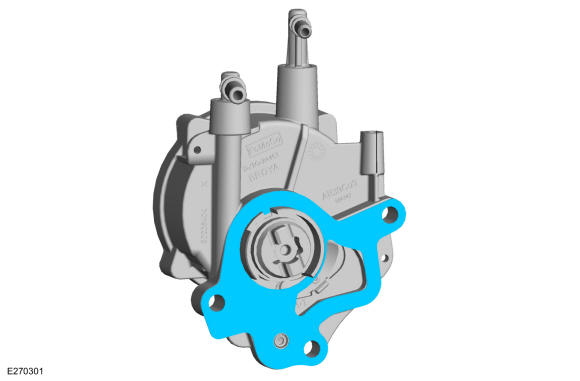

  202. Install the vacuum pump gasket.
    GFD462000Courtesy of FORD MOTOR COMPANY

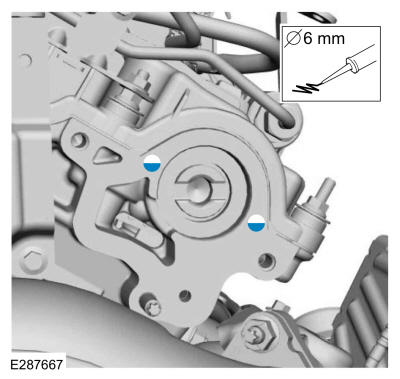

  203. NOTE: If the vacuum pump is not installed and the fasteners tightened within 10 minutes, the sealant must be removed and the sealing area cleaned.

    Apply an 6 mm dot of Motorcraft® High Performance Engine RTV Silicone to the locations shown below.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD462001Courtesy of FORD MOTOR COMPANY
  204. NOTE: Manually align the brake vacuum pump drive key with the camshaft slot before installation.

    Align the brake vacuum pump drive key with the camshaft slot before installation.

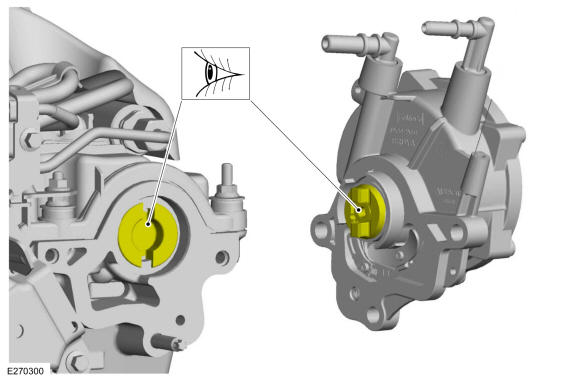

    GFD462002Courtesy of FORD MOTOR COMPANY
  205. Install the vacuum pump and the retainers.

    Torque: Stage 1: Tighten bolt number 1 to: : 17 lb.ft (23 Nm) | Stage 2: Tighten bolt number 2 to: : 17 lb.ft (23 Nm) | Stage 3: Tighten bolt number 1 a second time to: : 17 lb.ft (23 Nm) | Stage 4: Tighten the nut number 3 to: : 17 lb.ft (23 Nm)

    Fig 3: Vacuum Pump Tightening Sequence

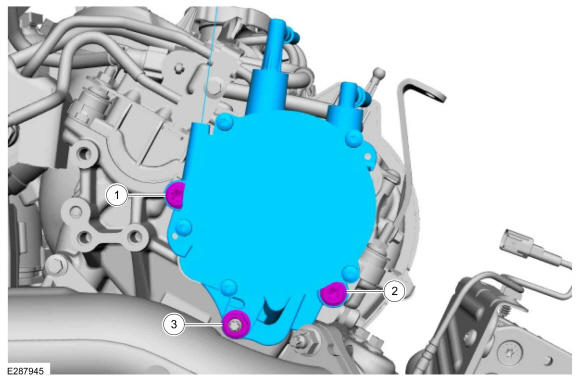

    GFD462003Courtesy of FORD MOTOR COMPANY
  206. Install the lifting bracket and the bolts.

    Torque: 17 lb.ft (23 Nm)

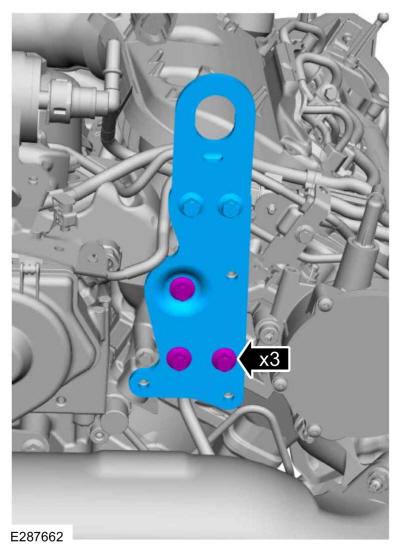

    GFD461687Courtesy of FORD MOTOR COMPANY

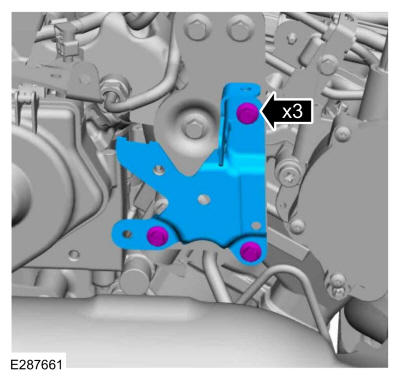

  207. Install the valve bracket and the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD461686Courtesy of FORD MOTOR COMPANY

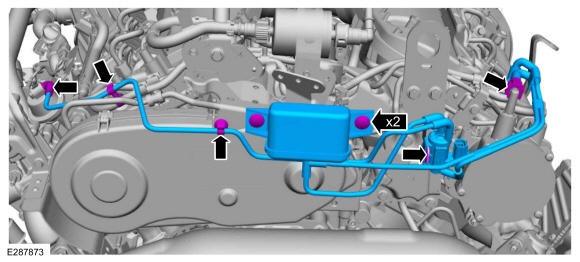

  208. Install the vacuum hose assembly and the retainers. Connect the vacuum pump connector. Refer to: QUICK RELEASE COUPLING
    GFD461639Courtesy of FORD MOTOR COMPANY

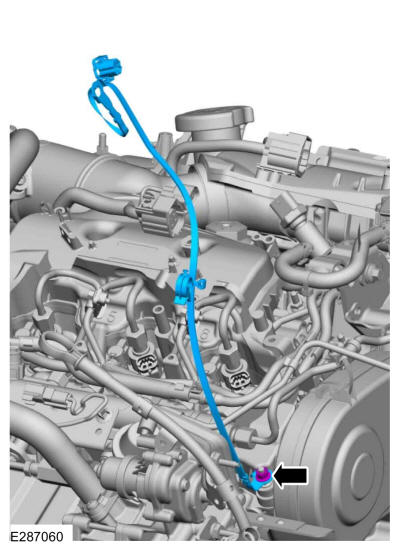

  209. Install the ground strap and the nut.

    Torque: 80 lb.in (9 Nm)

    GFD461638Courtesy of FORD MOTOR COMPANY

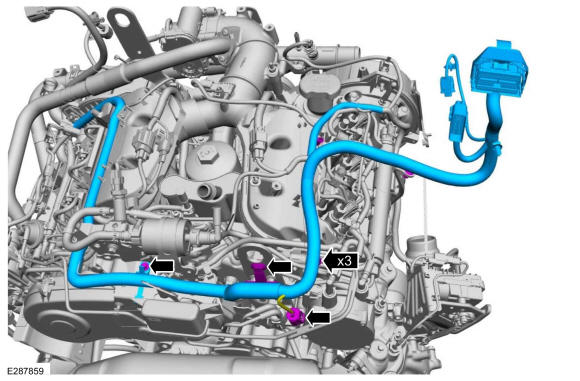

  210. Position the engine wire harness on the engine and install the bolt. Connect the electrical wire retainers and the electrical connector.

    Torque: 89 lb.in (10 Nm)

    GFD461637Courtesy of FORD MOTOR COMPANY

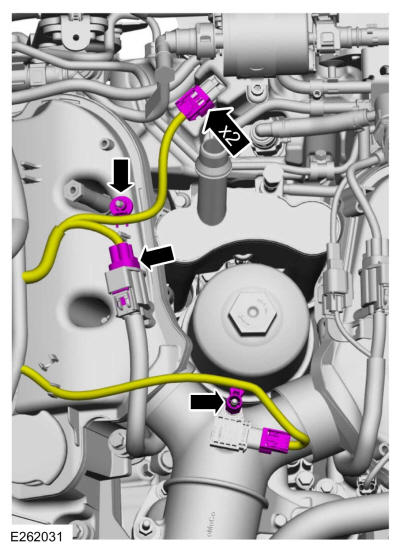

  211. Connect the electrical connectors and the wire retainers.
    GFD461636Courtesy of FORD MOTOR COMPANY

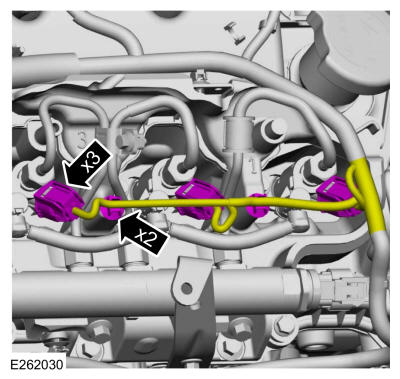

  212. Connect the fuel injectors electrical connectors and the wire retainers.
    GFD461635Courtesy of FORD MOTOR COMPANY

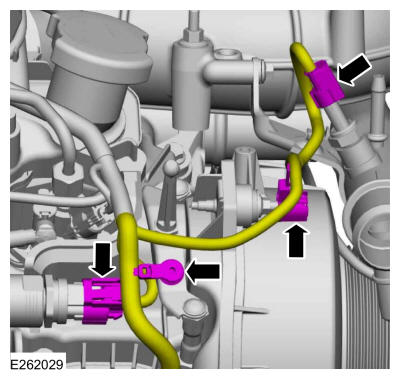

  213. Connect the electrical connectors and the wire retainers.
    GFD461634Courtesy of FORD MOTOR COMPANY

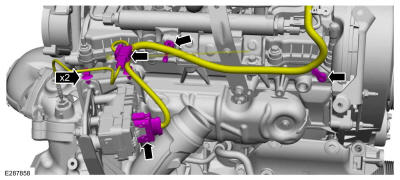

  214. Connect the EGRT electrical connector and the wire retainers. Connect the turbocharger actuator electrical connector.
    GFD462004Courtesy of FORD MOTOR COMPANY

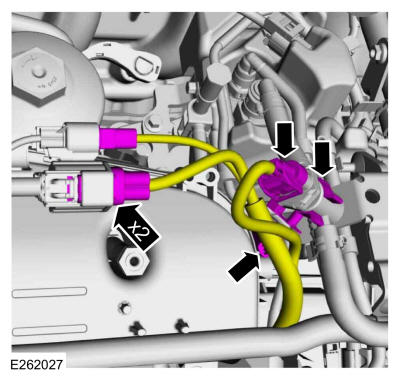

  215. Connect the electrical connectors and the wire retainer.
    GFD461632Courtesy of FORD MOTOR COMPANY

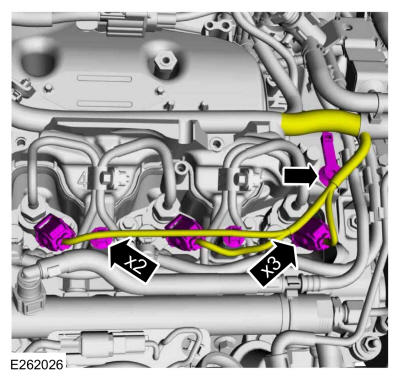

  216. Connect the fuel injectors electrical connectors and the wire retainers.
    GFD461631Courtesy of FORD MOTOR COMPANY

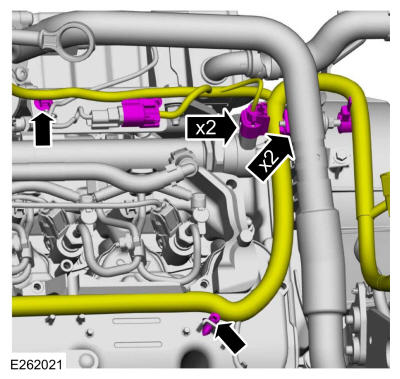

  217. Connect the electrical connectors and the wire retainers.
    GFD461630Courtesy of FORD MOTOR COMPANY

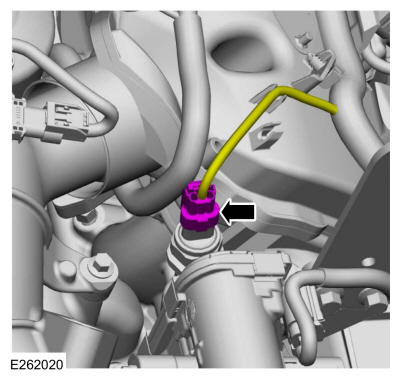

  218. Connect the EOP sensor electrical connector.
    GFD461629Courtesy of FORD MOTOR COMPANY

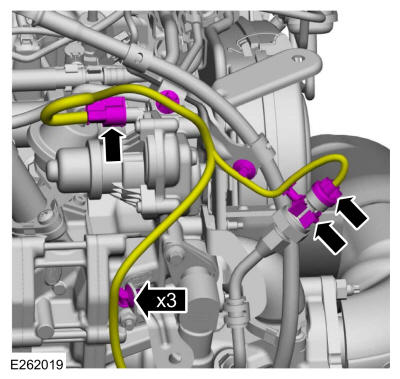

  219. Connect the EGR valve and the EP sensor electrical connectors. Disconnect the wire retainers.
    GFD461628Courtesy of FORD MOTOR COMPANY

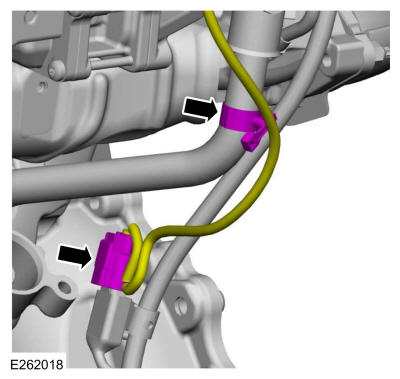

  220. Connect the CKP electrical connector and the wire retainer.
    GFD461627Courtesy of FORD MOTOR COMPANY

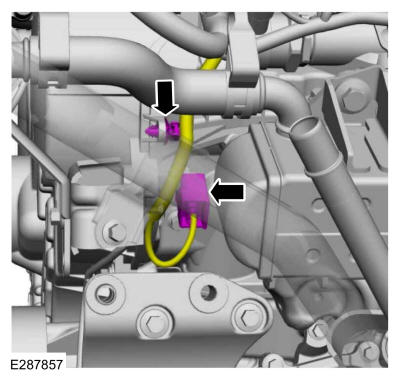

  221. Connect the CMP electrical connector and the wire retainer.
    GFD461626Courtesy of FORD MOTOR COMPANY

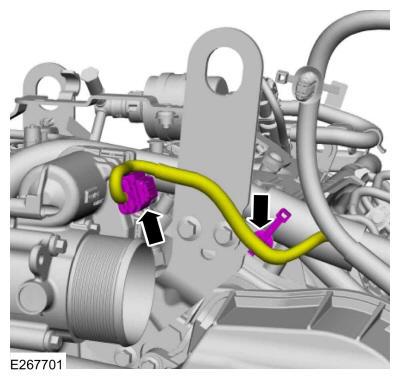

  222. Connect the TB (throttle body) electrical connector and the wire retainer.
    GFD461625Courtesy of FORD MOTOR COMPANY
  223. Connect the oil pump electrical connector and the wire retainers.

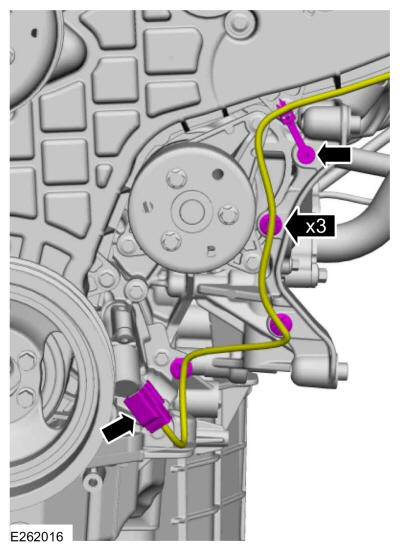

    GFD461624Courtesy of FORD MOTOR COMPANY

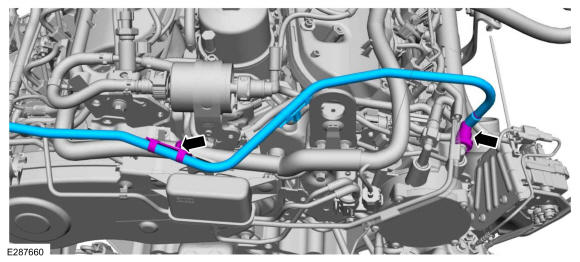

  224. Install the brake vacuum hose and connect the retainer. Refer to: QUICK RELEASE COUPLING
    GFD461623Courtesy of FORD MOTOR COMPANY

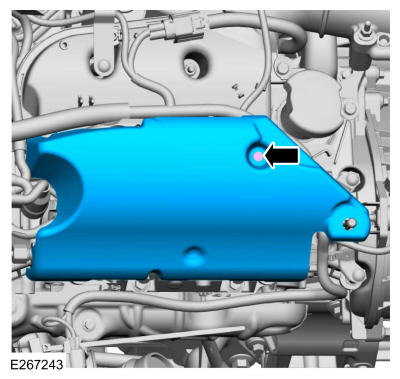

  225. Remove the RH fuel injector noise insulator.
    GFD461622Courtesy of FORD MOTOR COMPANY

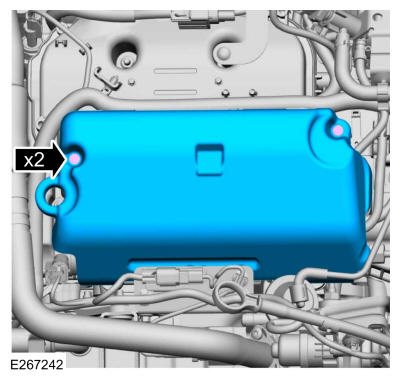

  226. Install the LH fuel injector noise insulator.
    GFD461621Courtesy of FORD MOTOR COMPANY

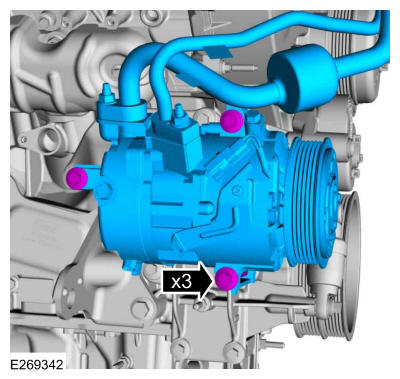

  227. Install the A/C compressor and the bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD461791Courtesy of FORD MOTOR COMPANY
  228. Install the coolant hoses and connect the coolant hose connector.

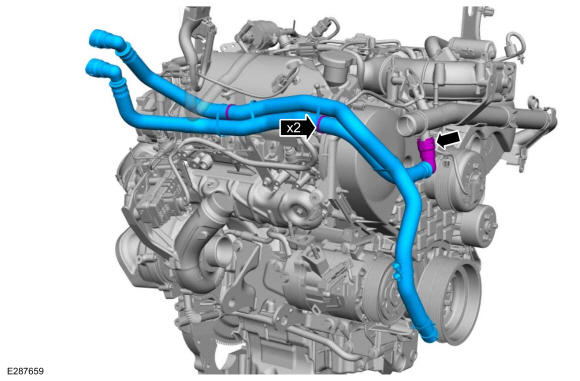

    GFD461613Courtesy of FORD MOTOR COMPANY

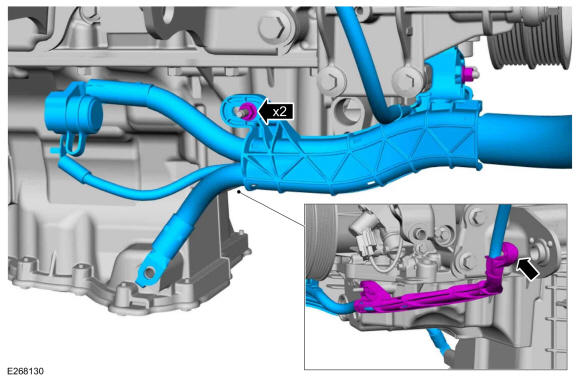

  229. Install the battery cable harness and connect the wire harness retainer. Install the nuts.

    Torque: 106 lb.in (12 Nm)

    GFD461729Courtesy of FORD MOTOR COMPANY

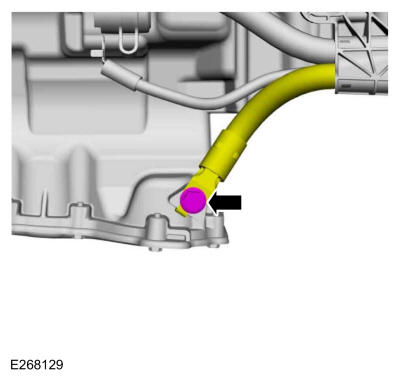

  230. Install the ground cable bolt.

    Torque: 18 lb.ft (25 Nm)

    GFD461790Courtesy of FORD MOTOR COMPANY

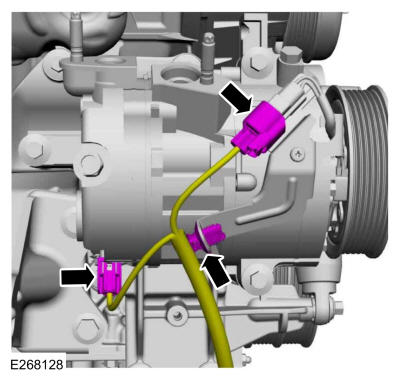

  231. Connect the A/C electrical connectors and the wire retainer.
    GFD461728Courtesy of FORD MOTOR COMPANY

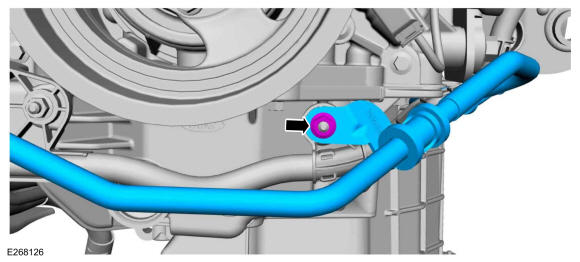

  232. Install the coolant tube and the nut.

    Torque: 106 lb.in (12 Nm)

    GFD461727Courtesy of FORD MOTOR COMPANY

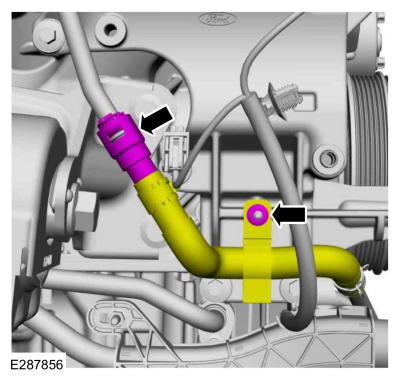

  233. Position back and connect the coolant hose. Install the nut for the coolant hose bracket.

    Torque: 106 lb.in (12 Nm)

    GFD461726Courtesy of FORD MOTOR COMPANY

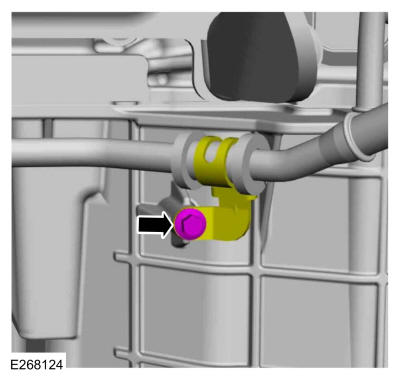

  234. Install the bolt for the coolant tube.

    Torque: 62 lb.in (7 Nm)

    GFD461725Courtesy of FORD MOTOR COMPANY
  235. Install the floor crane and special tool. Use Special Service Tool : 303-1681 Spreader Bar. Use the General Equipment: Floor Crane

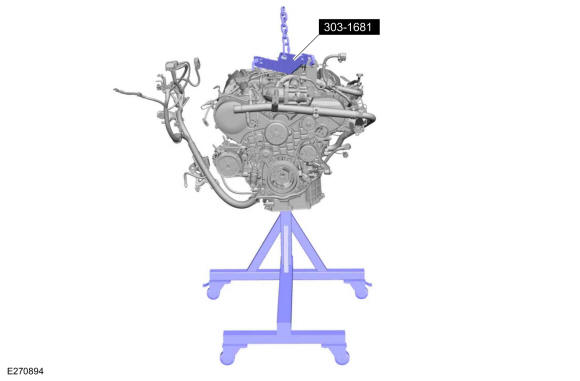

    GFD461724Courtesy of FORD MOTOR COMPANY

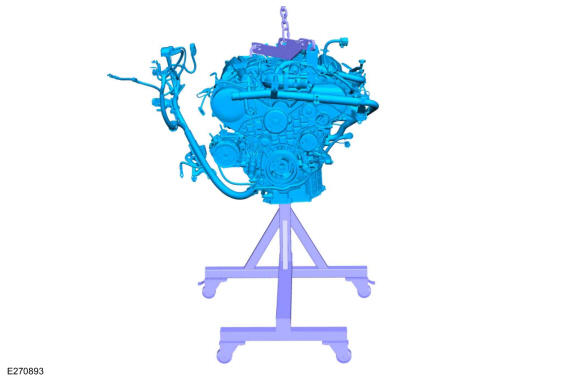

  236. Using a floor crane, remove the engine from the mounting stand. Use the General Equipment: Floor Crane. Use the General Equipment: Mounting Stand
    GFD461723Courtesy of FORD MOTOR COMPANY
  237. Install the flexplate and the bolts.

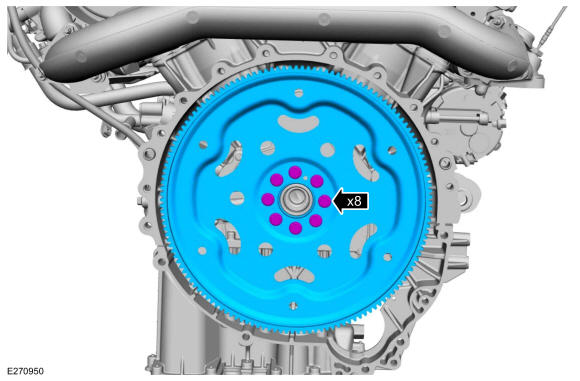

    GFD462005Courtesy of FORD MOTOR COMPANY
  238. NOTE: Only rotate the crankshaft clockwise.

    Install the special tool and the bolts. Use Special Service Tool : 303-1677 Locking Tool, Flywheel.

    GFD461417Courtesy of FORD MOTOR COMPANY

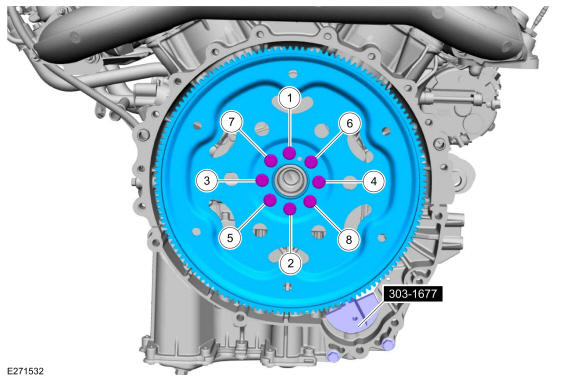

  239. Tighten the flexplate bolts. Use Special Service Tool : 303-1677 Locking Tool, Flywheel.

    Torque: Stage 1: 37 lb.ft (50 Nm) | Stage 2: 45° | Stage 3: 45°

    GFD462006Courtesy of FORD MOTOR COMPANY

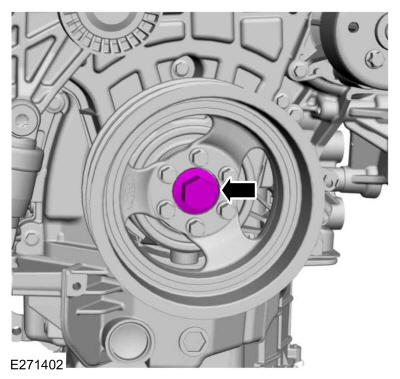

  240. Final tighten the crankshaft bolt.

    Torque: Stage 1: 221 lb.ft (300 Nm) | Stage 2: 90°

    GFD462007Courtesy of FORD MOTOR COMPANY
  241. Remove the bolts and the special tool. Use Special Service Tool : 303-1677 Locking Tool, Flywheel.
    GFD461417Courtesy of FORD MOTOR COMPANY
  242. Install the engine. Refer to: Engine - Body Off . Refer to: Engine - Body On .
scientia non olet · About LEMON Manuals
