Oil Pump Screen and Pickup Tube: Installation
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Apply clean engine oil to the O-ring seals prior to installing the oil pump screen and pickup tube.
Install new O-ring seals.
Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)

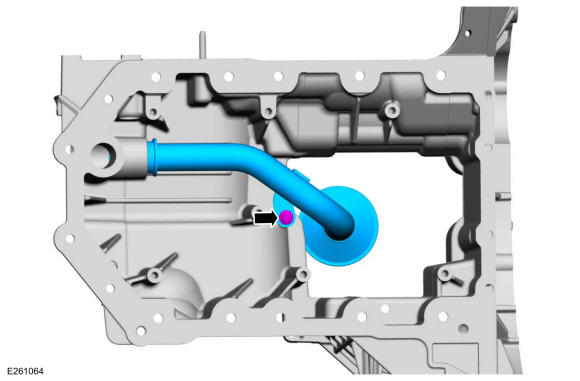

- Install the oil pump screen and pickup tube and bolt.
Torque: 124 lb.in (14 Nm)

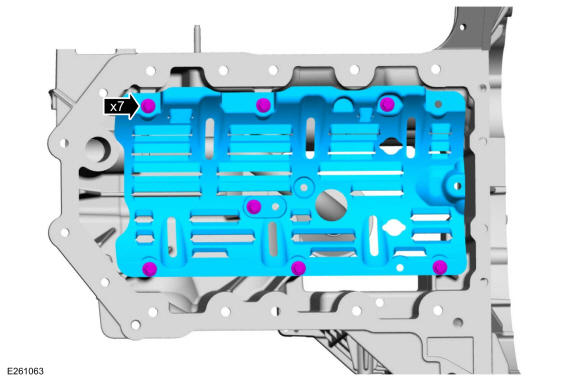

- Install the oil pan baffle and bolts.
Torque: 124 lb.in (14 Nm)
- Install the engine block skirt stiffener. Refer to: Engine Block Skirt Stiffener .
