Engine Block Skirt Stiffener

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-1681 Spreader Bar
Floor Crane
Mounting Stand

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

NOTE: This procedure assumes that the engine was removed using the recommended body off engine removal procedure. If it was necessary to remove the engine using the alternate body on engine removal procedure, some of the components in this procedure will have already been removed.

Remove the engine from the vehicle. Refer to: Engine - Body Off . Refer to: Engine - Body On .

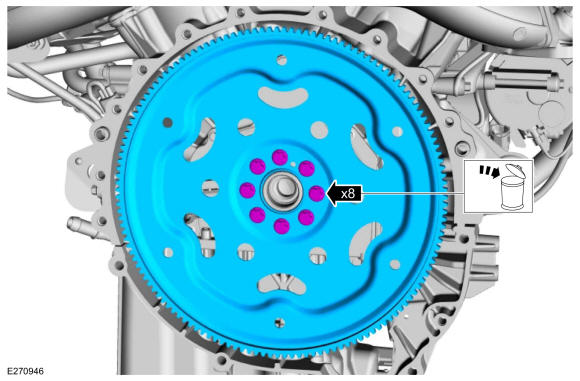

Remove the bolts and the flexplate. Discard the bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: Install the engine stand bolts into the cylinder block only. Do not install the bolts into the engine block skirt stiffener.

Using a floor crane, install the engine on a mounting stand. Use the General Equipment: Floor Crane. Use the General Equipment: Mounting Stand

Courtesy of FORD MOTOR COMPANY
Remove the floor crane and service tool. Use Special Service Tool: 303-1681 Spreader Bar. Use the General Equipment: Floor Crane

Courtesy of FORD MOTOR COMPANY
Remove the bolt for the coolant tube.

Courtesy of FORD MOTOR COMPANY
Disconnect the coolant hose. Remove the nut for the coolant hose bracket.

Courtesy of FORD MOTOR COMPANY
Remove the nut and the coolant tube.

Courtesy of FORD MOTOR COMPANY

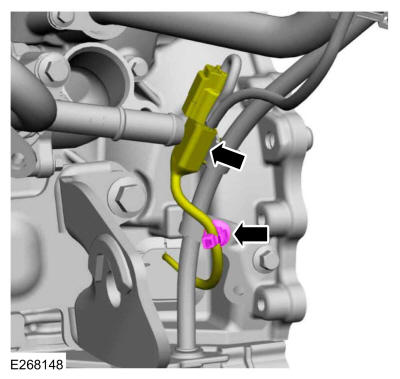

Disconnect the A/C electrical connectors and the wire retainer.

Courtesy of FORD MOTOR COMPANY
Remove the nuts, disconnect the wire harness retainer and remove the battery cable harness.

Courtesy of FORD MOTOR COMPANY

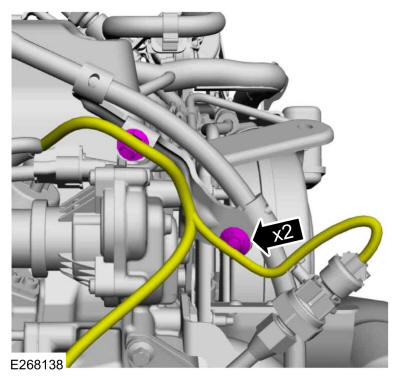

Remove the bolts and the turbocharger oil return tube. Discard the turbocharger oil return tube.

Courtesy of FORD MOTOR COMPANY

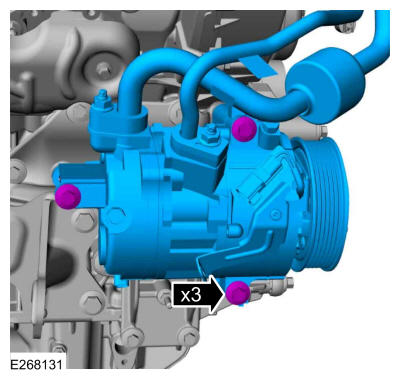

Remove the bolts and the A/C compressor.

Courtesy of FORD MOTOR COMPANY

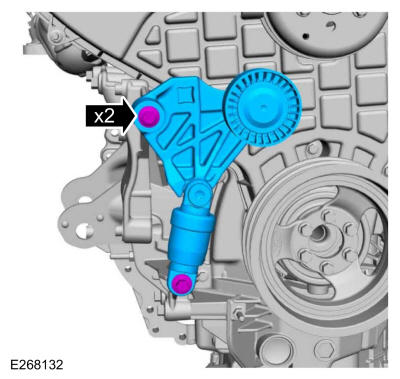

Remove the bolts and the accessory drive belt tensioner.

Courtesy of FORD MOTOR COMPANY

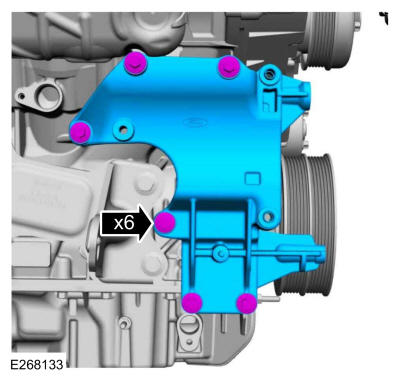

Remove the bolts and the A/C mounting bracket.

Courtesy of FORD MOTOR COMPANY
Disconnect the wire retainers from the oil level indicator.

Courtesy of FORD MOTOR COMPANY
NOTE: Exhaust crossover pipe removed for clarity.

Remove the nut, the bolt and the heat shield.

Courtesy of FORD MOTOR COMPANY
Disconnect the wire retainers from the oil level indicator tube.

Courtesy of FORD MOTOR COMPANY
Remove the oil level indicator.

Courtesy of FORD MOTOR COMPANY

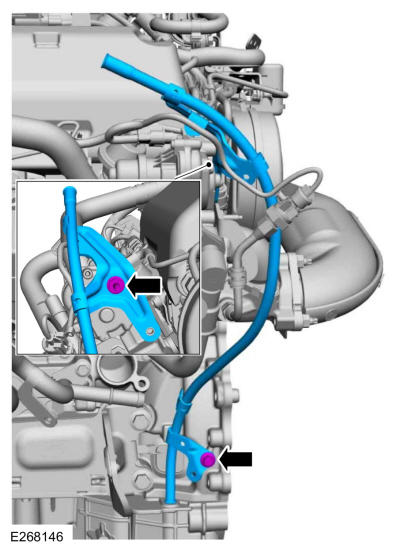

Remove the stud bolt, bolt and the oil level indicator.

Courtesy of FORD MOTOR COMPANY

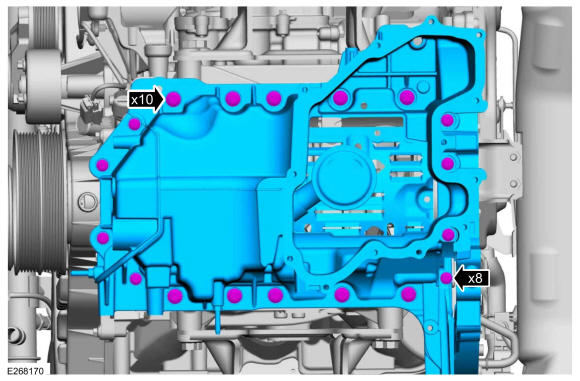

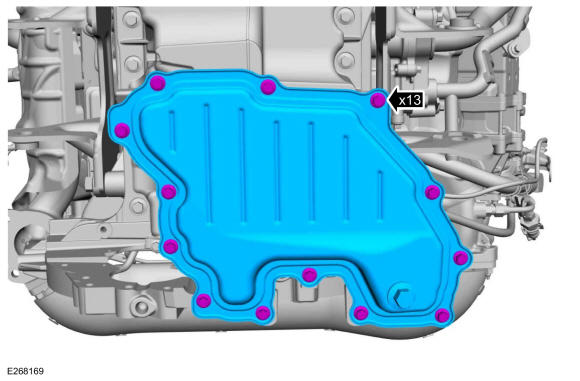

Remove the bolts and the oil pan.

Courtesy of FORD MOTOR COMPANY
Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
Remove the bolts and the engine block skirt stiffener.

Courtesy of FORD MOTOR COMPANY
Remove and discard the engine block stiffener gasket.

Courtesy of FORD MOTOR COMPANY
Remove the engine block skirt stiffener alignment dowels.

Courtesy of FORD MOTOR COMPANY
Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
