Engine - Body On

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

GFD461105Courtesy of FORD MOTOR COMPANY
 303-F047Lifting Bracket, Engine
Magnetic Socket
Floor Crane
Oil Drain Equipment
Trolley Jack
Hose Clamp Remover/Installer
Wooden Block
NOTE: It is recommended that this component be serviced with the vehicle body removed. If the body can be removed, refer to Engine - Body Off .
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
  3. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
  4. Drain the engine cooling system. Refer to: ENGINE COOLING SYSTEM DRAINING, VACUUM FILLING AND BLEEDING
  5. Remove the following items:

    1. Refer to: Hood .
    2. NOTE: It is not necessary to clamp off the degas bottle hose with the cooling system drained.

      Refer to: Degas Bottle

    3. Refer to: Cooling Module .
    4. NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow the se instructions can result in engine damage.

      Refer to: Intake Manifold .

  6. Disconnect the A/C pressure transducer electrical connector.
    GFD459098Courtesy of FORD MOTOR COMPANY
  7. Remove the nut and disconnect the A/C tube.

    • Discard the O-ring seal and gasket.

    GFD459099Courtesy of FORD MOTOR COMPANY
  8. NOTE: To release the fuel pressure in the high-pressure fuel tube, wrap the high-pressure fuel tube flare nuts with a shop towel to absorb any residual fuel pressure during the loosening of the high-pressure fuel tube flare nuts.

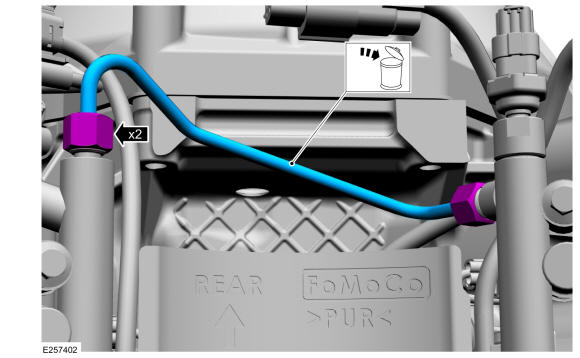

    Loosen the nuts and remove the high pressure fuel tube.

    • Discard the high pressure fuel tube.

    GFD461133Courtesy of FORD MOTOR COMPANY
  9. Remove the insulators.
    GFD461117Courtesy of FORD MOTOR COMPANY
    1. Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
    2. Disconnect the coolant hose quick release coupling.
    3. Detach the coolant hose retainer from the wiring harness.
    4. Detach the coolant hose retainers from the valve cover stud bolts.
    GFD461134Courtesy of FORD MOTOR COMPANY
    1. Disconnect the quick release coupling and remove the crankcase vent tube. Refer to: QUICK RELEASE COUPLING .
    2. Release the clamp and remove the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
    3. Release the clamp and remove the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
    4. Disconnect the quick release coupling.
    5. Release the clamp and remove the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
    6. Release the clamp and remove the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
    7. Release the spring clip and remove the coolant bypass T assembly from the engine.
    8. Release the clamps and remove the coolant hose assembly. Use the General Equipment: Hose Clamp Remover/Installer
    GFD460901Courtesy of FORD MOTOR COMPANY
  12. Disconnect the coolant hose quick release couplings.
    GFD460902Courtesy of FORD MOTOR COMPANY
  13. Remove the nut and ground strap from the LH valve cover stud bolt.
    GFD461061Courtesy of FORD MOTOR COMPANY

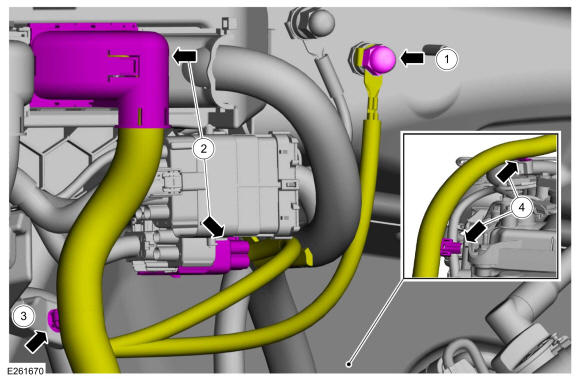

    1. Remove the nut and the ground strap.
    2. Disconnect the engine wiring harness connectors.
    3. Detach the engine wiring harness retainer.
    4. Detach the transmission wiring harness retainers.
    GFD461135Courtesy of FORD MOTOR COMPANY
  15. Remove the generator. Refer to: Generator - 5.0L 32V Ti-VCT .
  16. NOTE: If equipped.

    Remove the bolts and the skid plate.

    GFD458934Courtesy of FORD MOTOR COMPANY
  17. NOTE: If equipped.

    Remove the fasteners and the underbody shield.

    GFD458935Courtesy of FORD MOTOR COMPANY
  18. NOTE: If equipped.

    Remove the bolts and the underbody shield.

    GFD458868Courtesy of FORD MOTOR COMPANY
  19. NOTE: If equipped.

    Remove the bolts and the skid plate.

    GFD458869Courtesy of FORD MOTOR COMPANY
  20. Remove the following items:

    1. Refer to: Starter Motor .
    2. NOTE: If equipped.

      Refer to: Front Driveshaft .

    1. Disconnect the A/C compressor electrical connectors.
    2. Detach the wiring harness retainers.
    GFD460907Courtesy of FORD MOTOR COMPANY
    1. Remove the nut.
    2. Detach the wiring harness retainer.
    3. Remove the nut and position the coolant tube and wiring harness brackets aside.
    GFD460906Courtesy of FORD MOTOR COMPANY

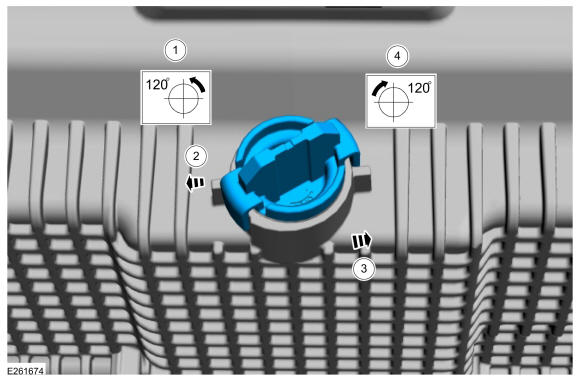

  23. NOTE: The drain plug should be removed and installed by hand, do not use tools.

    1. Turn the oil drain plug by hand counterclockwise 120 degrees. Use the General Equipment: Oil Drain Equipment
    2. Pull the oil drain plug out of the oil pan.
    3. After the oil has drained, push the oil drain plug into the oil pan.
    4. NOTE: Overtightening will damage the oil drain plug and possibly the oil pan.

      Turn the oil drain plug by hand clockwise 120 degrees.

    GFD461136Courtesy of FORD MOTOR COMPANY
  24. Remove and discard the engine oil filter.
    GFD460909Courtesy of FORD MOTOR COMPANY
  25. Remove and discard the catalytic converter-to-LH exhaust manifold nuts.
    GFD460951Courtesy of FORD MOTOR COMPANY
  26. Remove and discard the catalytic converter-to-RH exhaust manifold nuts.

    • Separate the exhaust Y-pipe dual catalytic converter from the exhaust manifolds.

    GFD460962Courtesy of FORD MOTOR COMPANY
  27. Remove the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolts and separate.

    • Clean all of the exhaust mating surfaces.

    GFD458871Courtesy of FORD MOTOR COMPANY
  28. Remove the bolts.
    GFD461137Courtesy of FORD MOTOR COMPANY
  29. Remove the cylinder block opening cover.
    GFD461109Courtesy of FORD MOTOR COMPANY
  30. NOTE: Only rotate the crankshaft in a clockwise direction.

    Remove and discard the torque converter-to-flexplate nuts. Use the General Equipment: Magnetic Socket

    GFD461110Courtesy of FORD MOTOR COMPANY
  31. Remove the transmission-to-engine bolt and transmission cooler tube support bracket.
    GFD460905Courtesy of FORD MOTOR COMPANY
  32. Remove the transmission-to-engine bolts.

    • Remove the clip.

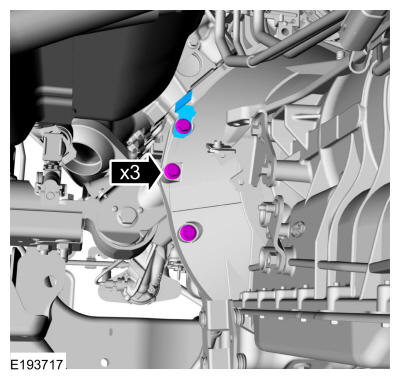

    GFD461138Courtesy of FORD MOTOR COMPANY

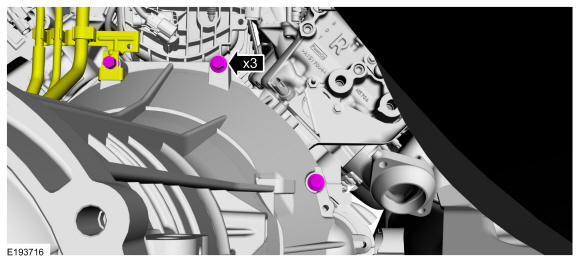

  33. Remove the top bellhousing bolts and position the bracket aside.
    GFD461139Courtesy of FORD MOTOR COMPANY
  34. NOTE: Only use hand tools when removing the engine mount nuts, stud bolts or damage to the engine mount can occur.

    Remove and discard the RH engine mount nuts and studs.

    GFD458881Courtesy of FORD MOTOR COMPANY
  35. NOTE: Only use hand tools when loosening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Remove and discard the LH engine mount through bolt.

    GFD458882Courtesy of FORD MOTOR COMPANY
  36. NOTE: Only use hand tools when removing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Loosen the transmission mount-to-crossmember nuts.

    GFD458872Courtesy of FORD MOTOR COMPANY
  37. NOTE: Do not support the transmission by the fluid pan, failure to follow this instruction may result in serious damage to the transmission.

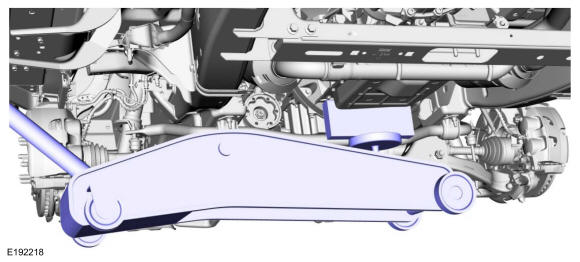

    Support the bellhousing of the transmission with a suitable floor jack and a block of wood. Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block

    GFD461140Courtesy of FORD MOTOR COMPANY

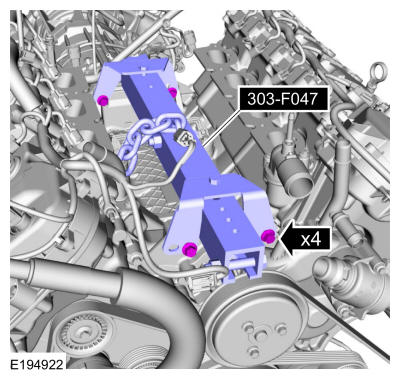

  38. Install Special Service Tool: 303-F047 Lifting Bracket, Engine.
    GFD461141Courtesy of FORD MOTOR COMPANY
  39. NOTE: It will be necessary to adjust the height floor jack to support the transmission.

    Using the Heavy Duty Floor Crane, raise the engine assembly to gain access to the LH engine mount bolts. Use the General Equipment: Floor Crane

    GFD461142Courtesy of FORD MOTOR COMPANY
  40. NOTE: Only use hand tools when removing or installing the engine mount-to-frame bolts or damage to the engine mount-to-frame nut plate can occur.

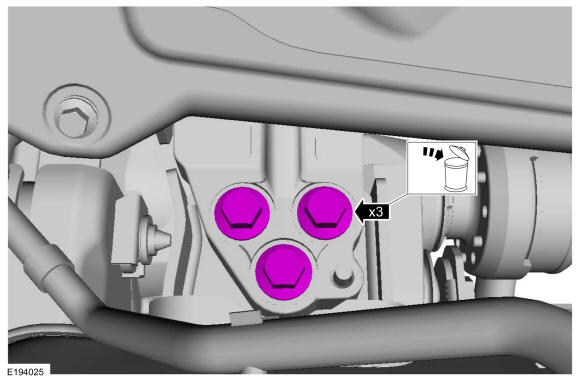

    Remove and discard the LH engine mount-to-frame bolts.

    GFD461143Courtesy of FORD MOTOR COMPANY
  41. Remove the LH engine mount.
    GFD459094Courtesy of FORD MOTOR COMPANY
  42. Using the Heavy Duty Floor Crane, remove the engine assembly from the vehicle. Use the General Equipment: Floor Crane
    GFD461144Courtesy of FORD MOTOR COMPANY
  43. NOTE: The flexplate bolts are torque-to-yield design and are not reusable.

    • Remove and discard the bolts.

    • Remove the flexplate.

    GFD460978Courtesy of FORD MOTOR COMPANY

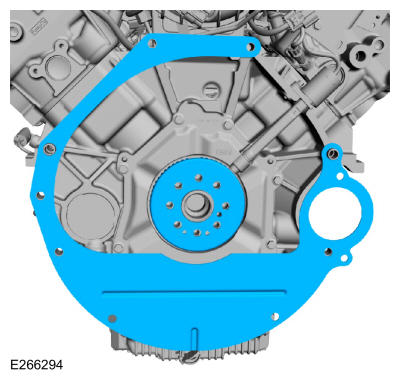

  44. Remove the crankshaft sensor ring and the engine-to-transmission spacer plate.
    GFD461145Courtesy of FORD MOTOR COMPANY
  45. Inspect the crankshaft sensor ring for damage. If the crankshaft sensor ring has been dropped or has any visual damage, it must be replaced.
GFD458809Courtesy of FORD MOTOR COMPANY
