Engine - Body On

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-F047Lifting Bracket, Engine
Magnetic Socket
Floor Crane
Trolley Jack
Hose Clamp Remover/Installer
Wooden Block

Materials

1. 1. Inspect the engine mount-to-frame nut plate for thread damage.
   2. If the nut plate is damaged, remove and discard the engine mount-to-frame nut plate.
   • Clean the engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.

   Courtesy of FORD MOTOR COMPANY

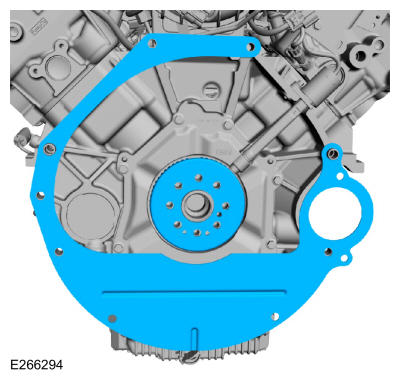

2. Install the engine-to-transmission spacer plate and the crankshaft sensor ring.

   Courtesy of FORD MOTOR COMPANY

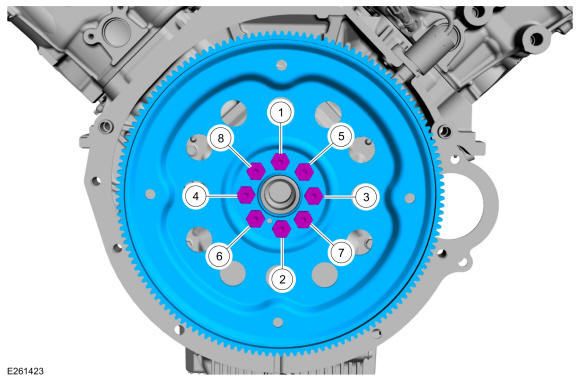

3. Install the flexplate and the bolts.

   Torque:| Stage 1: 43 lb.ft (58 Nm) | Stage 2: 45°

   Courtesy of FORD MOTOR COMPANY

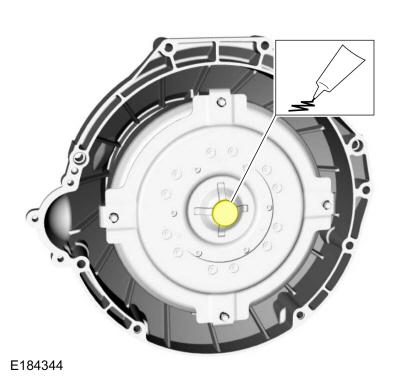

4. Lubricate the torque converter pilot hub with multi-purpose grease.

   Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

   Courtesy of FORD MOTOR COMPANY

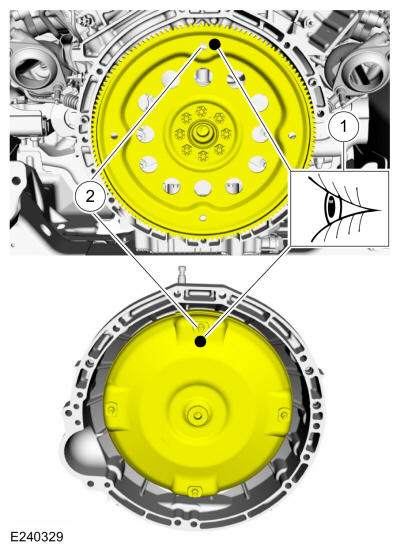

5. • Inspect the torque converter stud and flexplate for paint marks.
   • Align the torque converter stud and flexplate hole near the paint marks to the 12 o'clock position.

   Courtesy of FORD MOTOR COMPANY

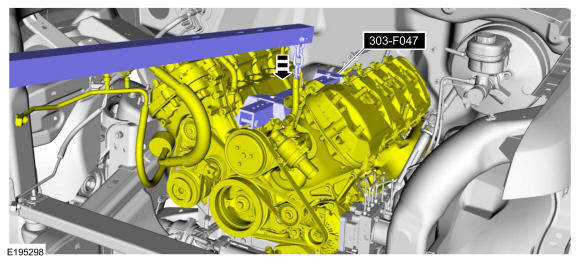

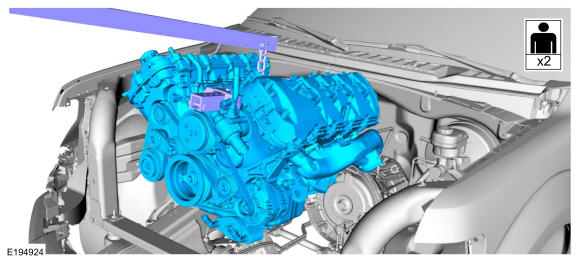

6. Using the Heavy Duty Floor Crane, install the engine assembly into the vehicle. Use the General Equipment: Floor Crane

   Courtesy of FORD MOTOR COMPANY

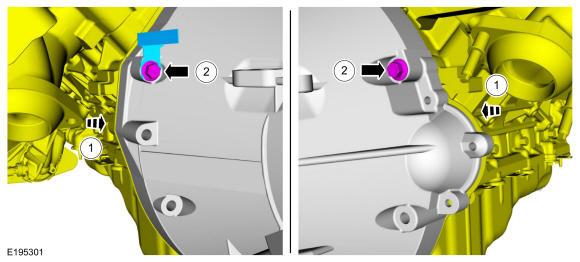

7. 1. Align the engine to the transmission.
   2. Install the clip and draw the engine and transmission togethe r using the bolts.

      Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

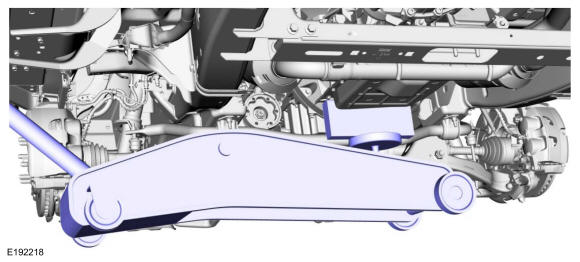

8. Remove the floor jack and a block of wood. Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block

   Courtesy of FORD MOTOR COMPANY

9. Using the Heavy Duty Floor Crane, raise the engine assembly to gain clearance to install the LH engine mount. Use the General Equipment: Floor Crane

   Courtesy of FORD MOTOR COMPANY

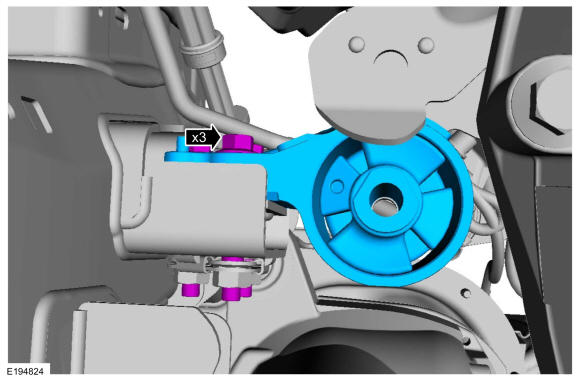

10. Install the LH engine mount and the new engine mount-to-frame bolts.

    Torque: 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

11. Using the Heavy Duty Floor Crane, lower the engine assembly into the installed position.
    1. Remove Heavy Duty Floor Crane. Use the General Equipment: Floor Crane
    2. Remove Special Service Tool: 303-F047 Lifting Bracket, Engine.

    Courtesy of FORD MOTOR COMPANY

12. Position the bracket and install the upper transmission-to-engine bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

13. NOTE: Only use hand tools when installing the engine mount studs or damage to the engine mount can occur.
    NOTE: Apply threadlock to the stud threads prior to installation.

    Install the engine mount studs.

    Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

    Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

14. NOTE: Only use hand tools when installing the engine mount nuts or damage to the engine mount can occur.

    Install the new RH engine mount nuts.

    Torque: 111 lb.ft (150 Nm)

    Courtesy of FORD MOTOR COMPANY

15. NOTE: Only use hand tools when tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Install the new LH engine mount through bolt.

    Torque: 258 lb.ft (350 Nm)

    Courtesy of FORD MOTOR COMPANY

16. NOTE: Only use hand tools when installing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Tighten the transmission mount-to-crossmember nuts.

    Torque: 85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

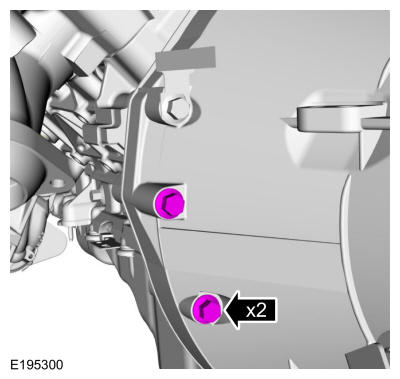

17. Install LH transmission-to-engine bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

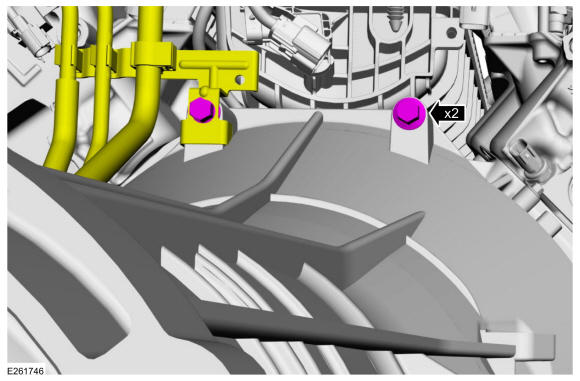

18. Install the transmission cooler tube support bracket and the transmission-to-engine bolt.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

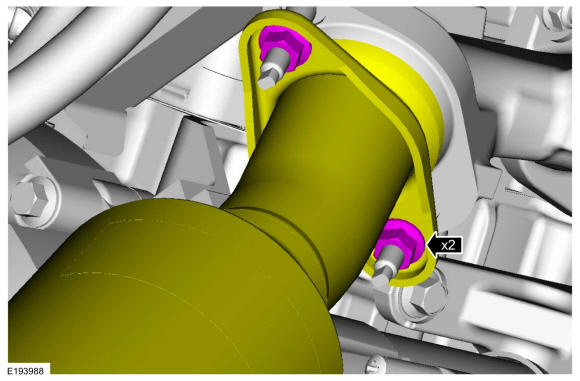

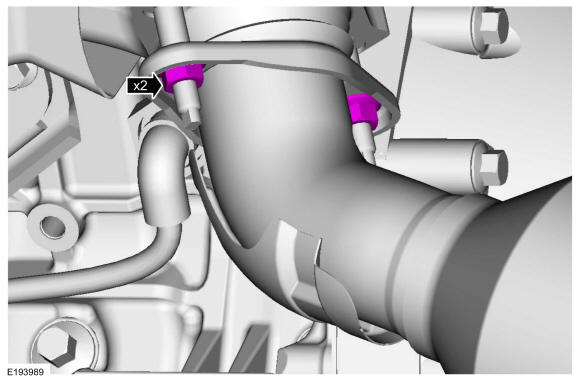

19. Position the exhaust Y-pipe dual catalytic converter onto the exhaust manifolds and loosely install new RH catalytic converter-to-exhaust manifold nuts.

    Courtesy of FORD MOTOR COMPANY

20. Loosely install new LH catalytic converter-to-exhaust manifold nuts.

    Courtesy of FORD MOTOR COMPANY

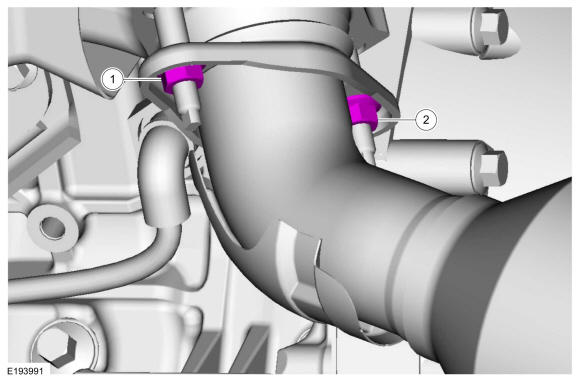

21. Tighten the nuts.

    Torque: 1: 30 lb.ft (40 Nm) 2: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

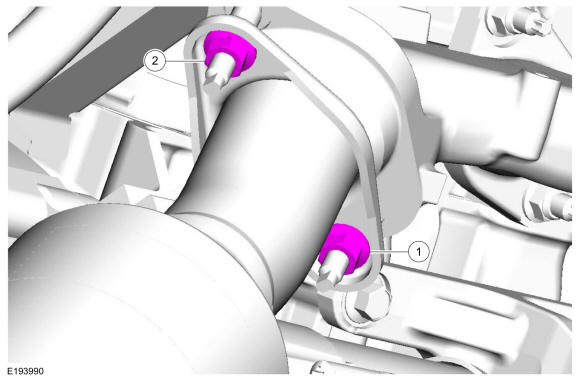

22. Tighten the nuts.

    Torque: 1: 30 lb.ft (40 Nm) 2: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

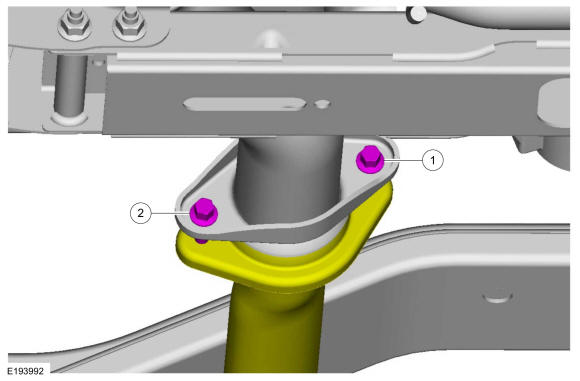

23. Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install the bolts.

    Torque: 1: 46 lb.ft (63 Nm) 2: 46 lb.ft (63 Nm)

    Courtesy of FORD MOTOR COMPANY

24. NOTE: Only rotate the crankshaft in a clockwise direction.

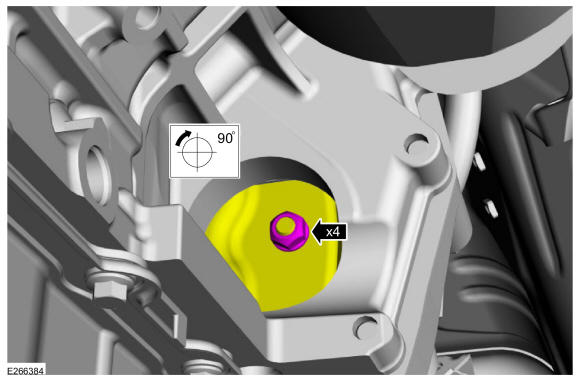

    Install the new torque converter-to-flexplate nuts. Use the General Equipment: Magnetic Socket

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

25. Install the cylinder block opening cover.

    Courtesy of FORD MOTOR COMPANY

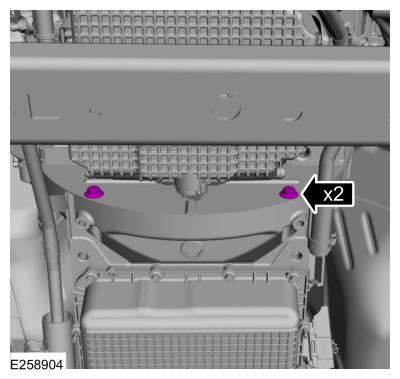

26. Install the flexplate inspection cover and the bolts.

    Torque: 26 lb.ft (35 Nm)

    Courtesy of FORD MOTOR COMPANY

27. 1. Install the nut.

       Torque: 106 lb.in (12 Nm)

    2. Attach the wiring harness retainer.
    3. Position the coolant tube and wiring harness brackets and install the nut.

       Torque: 115 lb.in (13 Nm)

    Courtesy of FORD MOTOR COMPANY

28. 1. Connect the A/C compressor electrical connectors.
    2. Attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

29. Install the following items:
    1. Refer to: Starter Motor .
    2. If equipped. Refer to: Front Driveshaft .

30. NOTE: Do not lubricate the O-ring seal.

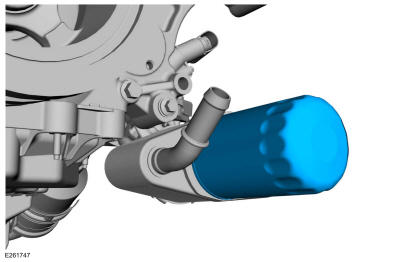

    Install a new oil filter.

    Torque:| Stage 1: 44 lb.in (5 Nm) | Stage 2: 180°

    Courtesy of FORD MOTOR COMPANY

31. NOTE: If equipped.

    Install the skid plate and bolts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

32. NOTE: If equipped.

    Install the underbody shield and the bolts.

    Torque: 71 lb.in (8 Nm)

    Courtesy of FORD MOTOR COMPANY

33. If equipped, install the underbody shield and fasteners.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

34. If equipped, install the skid plate and bolts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

35. Install the generator. Refer to: Generator - 5.0L 32V Ti-VCT .

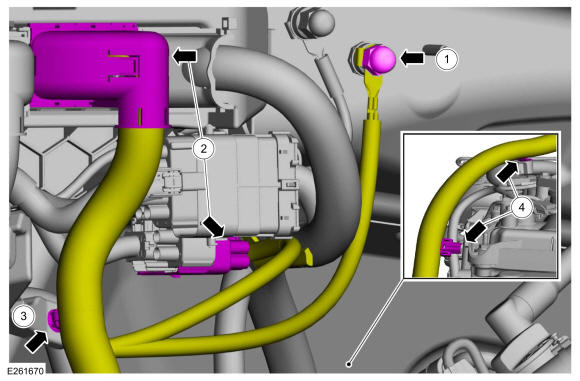

36. 1. Install the ground strap and the nut.

       Torque: 106 lb.in (12 Nm)

    2. Connect the engine wiring harness connectors.
    3. Attach the engine wiring harness retainer.
    4. Attach the transmission wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

37. Install the ground strap and nut onto the LH valve cover stud bolt.

    Torque: 53 lb.in (6 Nm)

    Courtesy of FORD MOTOR COMPANY

38. Connect the coolant hose quick release couplings.

    Courtesy of FORD MOTOR COMPANY

39. 1. Install the coolant hose assembly and the clamps. Use the General Equipment: Hose Clamp Remover/Installer
    2. Install the coolant bypass T assembly and engage the spring clip.
    3. Install the coolant hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer
    4. Install the coolant hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer
    5. Connect the quick release coupling.
    6. Install the coolant hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer
    7. Install the coolant hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer
    8. Install the crankcase vent tube and connect the quick release coupling. Refer to: QUICK RELEASE COUPLING .

    Courtesy of FORD MOTOR COMPANY

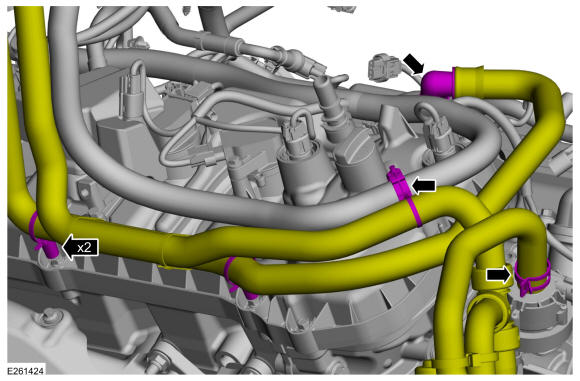

40. 1. Install the coolant hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer
    2. Connect the coolant hose quick release coupling.
    3. Attach the coolant hose retainer to the wiring harness.
    4. Attach the coolant hose retainers to the valve cover stud bolts.

    Courtesy of FORD MOTOR COMPANY

41. Install the insulators.

    Courtesy of FORD MOTOR COMPANY

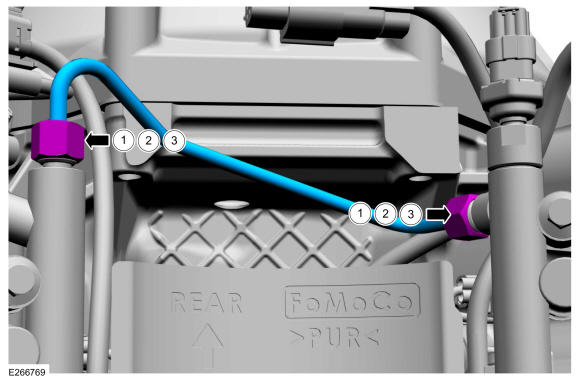

42. NOTE: In | Stage 3, if the torque required to tighten any flare nut on the new high-pressure fuel tube reaches or exceeds 55 lb.ft (50 Nm), the n that high pressure fuel tube must be discarded and replaced with anothe r new high-pressure fuel tube.

    Torque:| Stage 1: Tighten the high-pressure fuel tube flare nuts to : 71 lb.in (8 Nm) | Stage 2: Tighten the high-pressure fuel tube flare nuts to : 89 lb.in (10 Nm) | Stage 3: Tighten the high-pressure fuel tube flare nuts an additional : 25°

    Courtesy of FORD MOTOR COMPANY

43. • Install a new O-ring seal and gasket seal.
    • Connect the A/C tube and install the nut.

      Torque: 133 lb.in (15 Nm)

    Courtesy of FORD MOTOR COMPANY

44. Connect the A/C pressure transducer electrical connector.

    Courtesy of FORD MOTOR COMPANY

45. Install the following items:
    1. NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow the se instructions can result in engine damage.

       Refer to: Intake Manifold .

    2. Refer to: Cooling Module .
    3. Refer to: Degas Bottle .
    4. Refer to: Hood .

46. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
47. Fill the engine with clean engine oil. Refer to: Specifications .

    Courtesy of FORD MOTOR COMPANY

48. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
49. Fill and bleed the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
50. Check and top off the transmission fluid. Refer to: Transmission Fluid Level Check .
51. Start engine and check exhaust system for leaks.
52. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
