Transmission Fluid Level Check
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Inspection
NOTE:
The vehicle should not be driven if the transmission fluid level is low. Internal failure could result.
NOTE:
If the vehicle has been operated for an extended period at high highway speeds, in city traffic, during hot weather or while pulling a trailer, the transmission fluid must cool down to obtain an accurate reading.
NOTE:
Do not overfill the transmission. The transmission fluid level must be at the upper level of the dotted (B) area marks on the transmission fluid level indicator.
NOTE:
If a new transmission fluid cooler or new fluid cooler tubes have been installed, drive the vehicle to warm the transmission fluid to 96.7°C-102°C (206°F-215°F) in order to purge the air from the transmission fluid cooling system.
- Connect the diagnostic scan tool and position the vehicle on a hoist. Refer to: Jacking and Lifting - Overview .
- With the engine running, place the transmission selector lever in each gear position, holding approximately 5 seconds in each position. Place the transmission selector lever in PARK.Engine Rear Undershield
Refer to: Engine Front Undershield

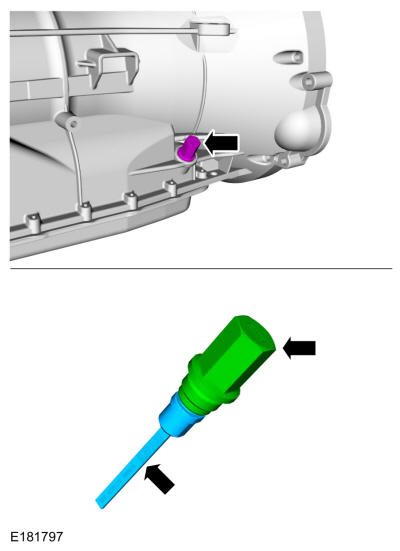

- Remove the transmission fluid fill plug and remove the transmission fluid level indicator from the plug.

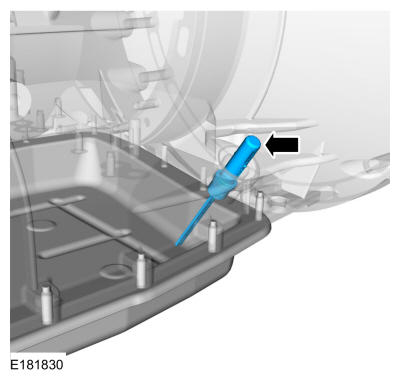

- Check the transmission fluid level using the transmission fluid level indicator.
-
NOTE: The transmission fluid level indicator has 2 areas for the fluid level, a crosshatched (A) area and a dotted (B) area. Use the dotted (B) area when checking the transmission fluid level. The correct transmission fluid level is at the upper level of the dotted (B) area marks on the transmission fluid level indicator.
Using the scan tool verify the transmission fluid temperature is between 96.7°C - 102°C (206°F - 215°F). The transmission fluid level must be at the upper level of the dotted (B) area.
- If the transmission fluid is not at the correct level, follow the steps for adding or removing transmission fluid. Refer to: Transmission Fluid Drain and Refill .

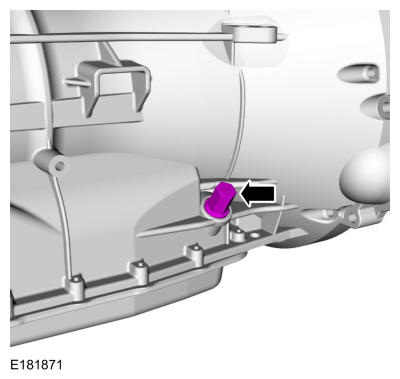

- Install the transmission fluid fill plug.
Torque: 26 lb.ft (35 Nm)
Refer to: Engine Front Undershield .
