Transmission Fluid Auxiliary Pump: Installation
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Install the transmission fluid auxiliary pump gasket.

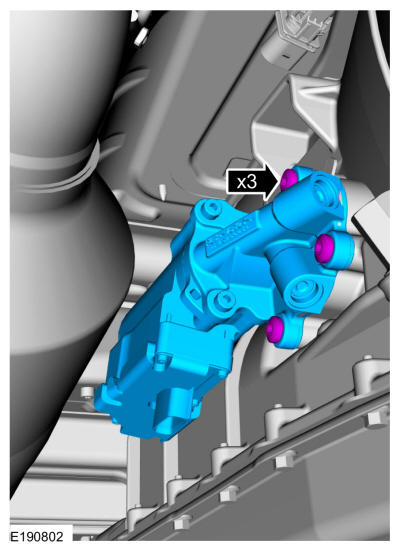

- Install the transmission fluid auxiliary pump and the new bolts.
Torque: 115 lb.in (13 Nm)

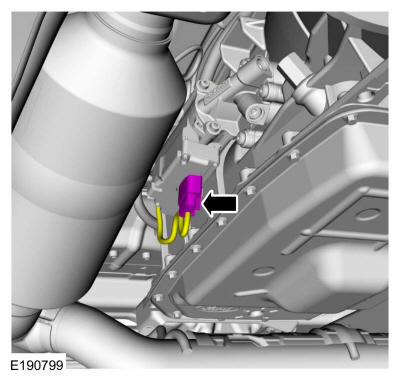

- Connect the transmission fluid auxiliary pump electrical connector.NOTE: TFT must be greater than 38°C (100°F) for the PCM to command the pump on.
- Using the scan tool verify the TFT is above 38°C (100°F)
- If TFT is below 38°C (100°F), run engine at 3000 RPM until specified temperature is achieved (approximately 2-4 minutes).
- Prime the Transmission Fluid Auxiliary Pump.
- Key ON, Engine OFF
- Using the scan tool, command TRANS_PMP_CMD to 80% for 30 seconds. If the pump cannot be commanded on, verify TFT is above 38°C (100°F)
- Clear DTCs.
- Carry out a road test until there is a stop / start event. If the restart is harsh, repeat the Transmission Fluid Pump prime procedure.
- Continue road test and evaluate each stop / start event. Repeat prime procedure until three consecutive normal stop / start events are achieved.
- Check the transmission fluid level. Refer to: Transmission Fluid Level Check .

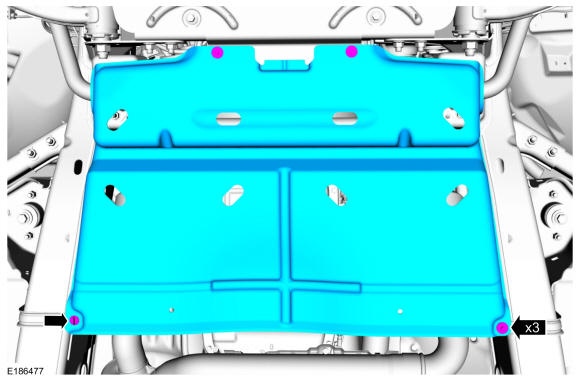

- Install the splash shield and the retainers.
