Engine Front Undershield

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

NOTE: 4X2 vehicle shown, 4X4 vehicle similar.

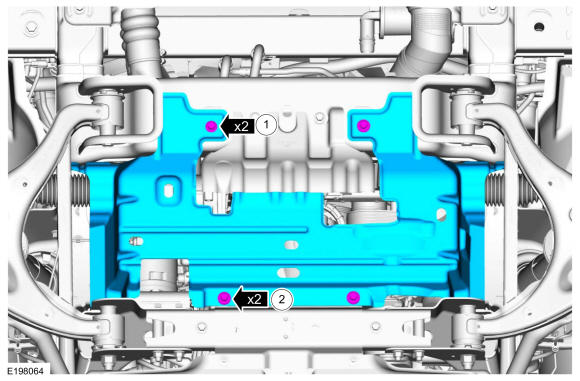

If equipped, Remove the bolts and the underbody skid plate.

Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

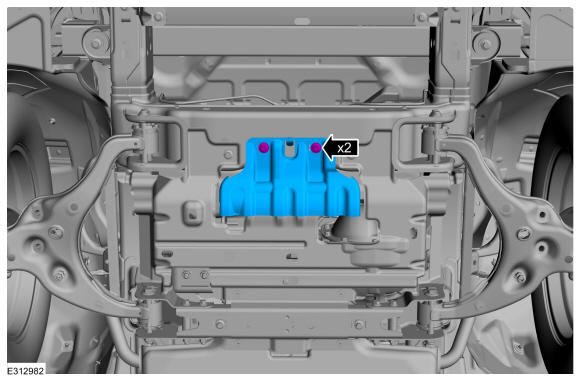

If equipped, Remove the bolts and the underbody skid plate.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
