Transmission Fluid Warmer - Raptor: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

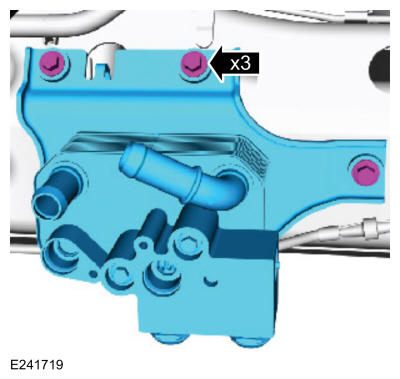

Install the transmission fluid warmer and the bolts.
Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY

NOTE: The following two steps are only necessary if installing a new transmission fluid warmer.

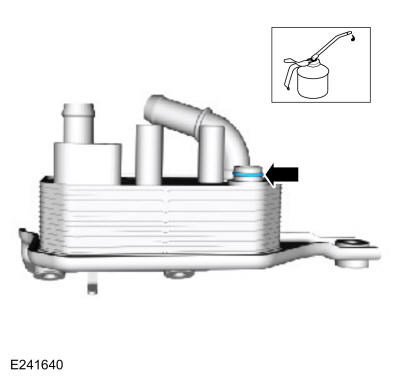

If installing a new transmission fluid warmer, install and lubricate a new cooler bypass valve O-ring seal.
Material: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

Courtesy of FORD MOTOR COMPANY

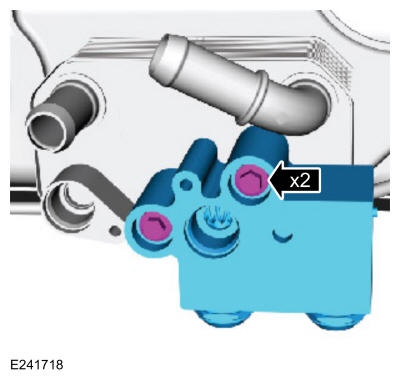

If installing a new transmission fluid warmer, install the cooler bypass valve and the bolts.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Be prepared to collect escaping fluid.

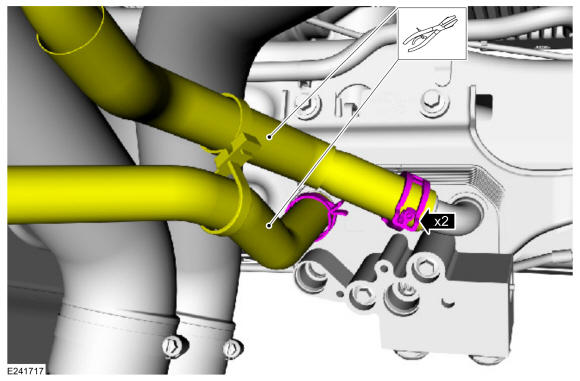

Connect the coolant hoses, position the clamps and remove the hose clamping pliers. Use the General Equipment: Hose Clamp(s)

Courtesy of FORD MOTOR COMPANY

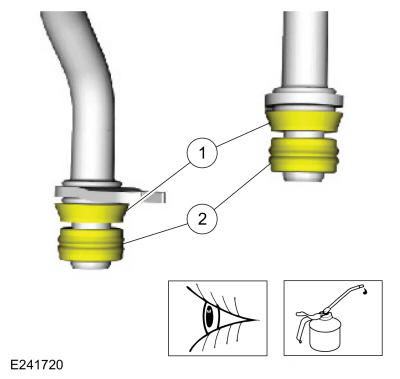

Inspect and lubricate the band seals and backing rings. Install new band seals and backing rings if necessary.
1. Backing ring (7J324).
2. Seal (7D285).
  Material: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)
Courtesy of FORD MOTOR COMPANY

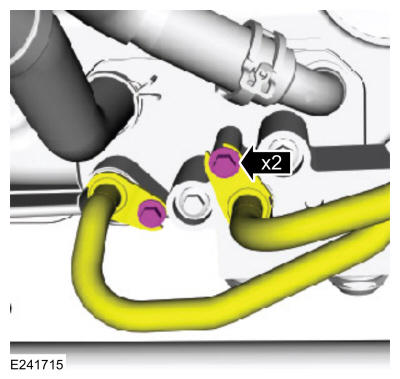

Connect the transmission fluid cooler tubes and install the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

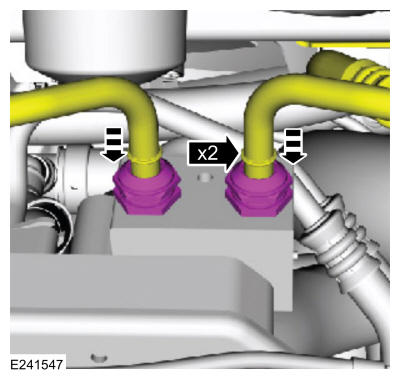

Connect the transmission fluid cooler tubes.

Courtesy of FORD MOTOR COMPANY

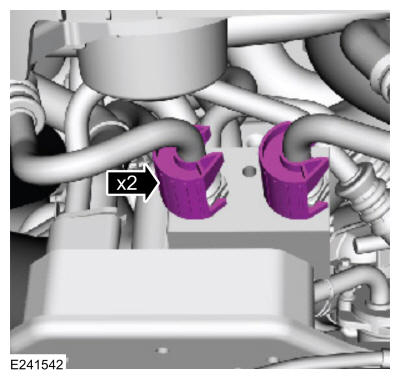

Install the transmission fluid tube secondary latches.

Courtesy of FORD MOTOR COMPANY

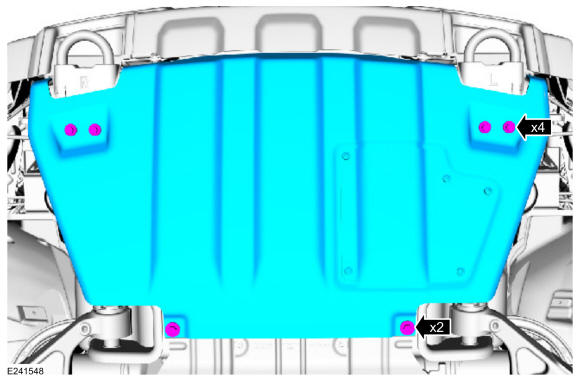

If equipped, install the skid plate and the bolts.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
Check the transmission fluid level and adjust as necessary. Refer to Transmission Fluid Level Check
Check the engine coolant level and adjust as necessary. Refer to Engine Cooling System Draining, Vacuum Filling And Bleeding .
