Transmission Fluid Level Check

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Inspection

NOTE: The vehicle should not be driven if the transmission fluid level is low. Internal failure could result.

NOTE: If the vehicle has been operated for an extended period at high highway speeds, in city traffic, during hot weather or while pulling a trailer, the transmission fluid must cool down to obtain an accurate reading.

NOTE: If a new transmission fluid cooler or new fluid cooler tubes have been installed, drive the vehicle to warm the transmission fluid to 96°C-101°C (206°F-215°F) in order to purge the air from the transmission fluid cooling system.

Connect the diagnostic scan tool and position the vehicle on a hoist. Refer to: Jacking and Lifting - Overview .

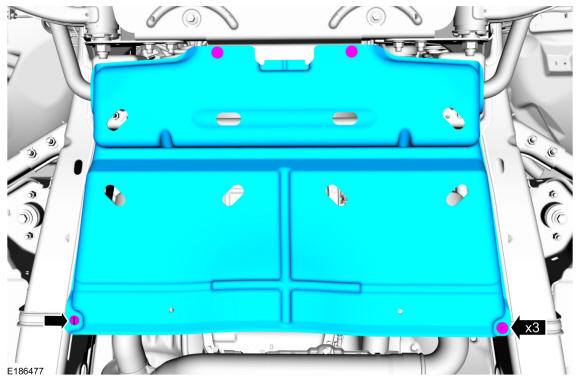

If equipped, release the retainers and remove the splash shield.

Courtesy of FORD MOTOR COMPANY
With the engine running, place the transmission selector in each gear position, holding approximately 5 seconds in each position. Place the transmission selector in PARK.

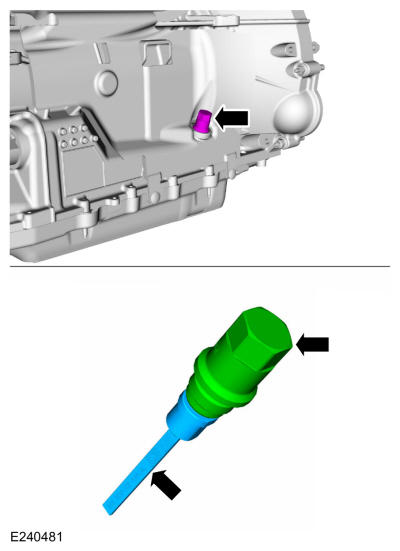

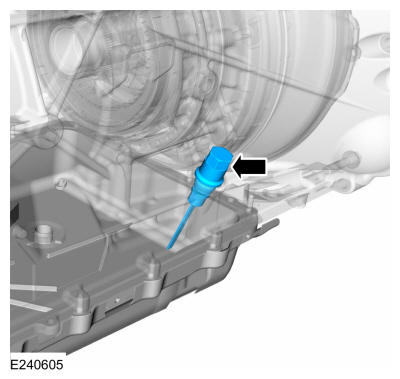

Remove the transmission fluid fill plug and remove the transmission fluid level indicator from the plug.

Courtesy of FORD MOTOR COMPANY

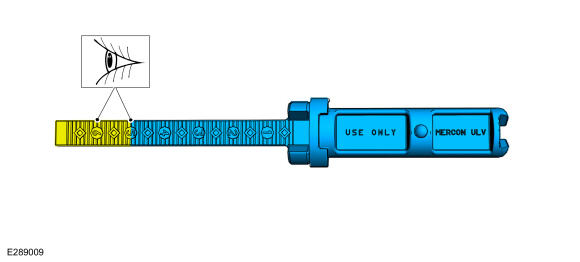

Check the transmission fluid level using the transmission fluid level indicator.

Courtesy of FORD MOTOR COMPANY

Fluid Level Indicators with Letters
NOTE: The transmission fluid level indicator uses A and B to indicate the fluid level. The different areas are for different vehicle models. The correct transmission fluid level is within the B area on the transmission fluid level indicator.

NOTE: Do not overfill the transmission.

Using the scan tool verify the transmission fluid temperature is between 96°C - 101°C (206°F - 215°F). The transmission fluid level must be within the B area on the transmission fluid level indicator.

Courtesy of FORD MOTOR COMPANY

Fluid Level Indicators with Numbers
NOTE: The transmission fluid level indicator uses 1 through 6 to indicate the fluid level. The different numbers are for different vehicle models. Use the area between 5 and 6 when checking the transmission fluid level. The correct transmission fluid level is between 5 and 6 on the transmission fluid level indicator.

NOTE: Do not overfill the transmission.

Using the scan tool verify the transmission fluid temperature is between 96°C - 101°C (206°F - 215°F). The transmission fluid level must be between 5 and 6 on the transmission fluid level indicator.

Courtesy of FORD MOTOR COMPANY

All vehicles
If the transmission fluid is not at the correct level, follow the steps for adding or removing transmission fluid. Refer to: Transmission Fluid Drain and Refill .

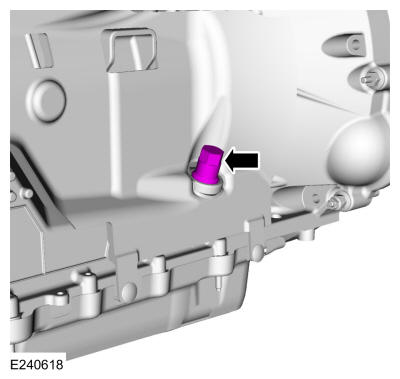

Install the transmission fluid fill plug.
Torque: 52 lb.ft (70 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped, install the splash shield and the retainers.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
