Transmission Fluid Cooler Tubes - 3.0L Power Stroke Diesel: Installation
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect and lubricate the band seals and backing rings. Install new band seals and backing rings if necessary.
- Seal (7D285).
- Backing ring (7J324).

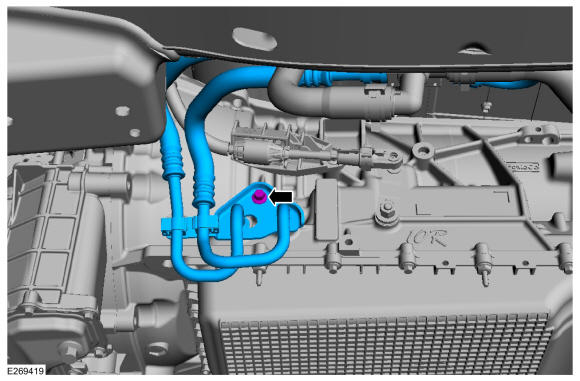

- Install the transmission fluid tubes and a new bolt.
Torque: 18 lb.ft (25 Nm)
- Connect the transmission fluid cooler tubes to the transmission fluid cooler.
- Install the transmission fluid tube secondary latches.
- Check and adjust the transmission fluid level as necessary. Refer to: Transmission Fluid Level Check .
