Transmission Fluid Cooler - 2.7L EcoBoost (238kW/324PS)/3.5L EcoBoost (272kW/370PS)/5.0L 32V Ti-VCT: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Install the transmission fluid cooler.
1. Slide the transmission fluid cooler on the coolant hose.
2. Install the bolts.
  Torque: 22 lb.ft (30 Nm)
3. Position the coolant hose clamp.
Courtesy of FORD MOTOR COMPANY
Connect the coolant hose to the transmission fluid cooler.

Courtesy of FORD MOTOR COMPANY

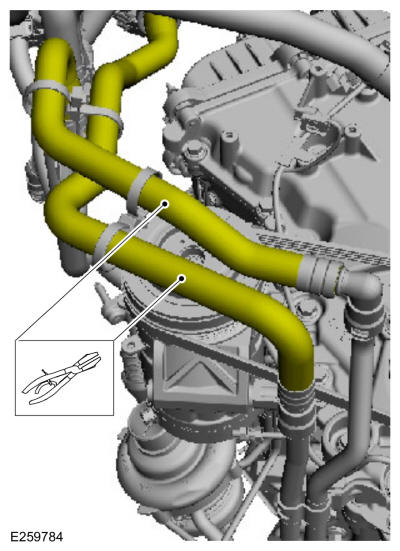

Remove the clamps from the transmission fluid cooler coolant hoses.

Courtesy of FORD MOTOR COMPANY
Connect the transmission fluid cooler outlet tube to the transmission fluid cooler.

Courtesy of FORD MOTOR COMPANY
Install the transmission fluid cooler outlet tube secondary latch.

Courtesy of FORD MOTOR COMPANY
Position the transmission fluid cooler outlet tube heat shield.

Courtesy of FORD MOTOR COMPANY
Connect the transmission fluid cooler inlet tube to the transmission fluid cooler.

Courtesy of FORD MOTOR COMPANY
Install the transmission fluid cooler inlet tube secondary latch.

Courtesy of FORD MOTOR COMPANY
Position the transmission fluid cooler inlet tube heat shield.

Courtesy of FORD MOTOR COMPANY
Check the transmission fluid level and adjust as necessary. Refer toTRANSMISSION FLUID LEVEL CHECK
Check the engine coolant level and adjust as necessary. Refer to Engine Cooling System Draining, Vacuum Filling and Bleeding [For Engine 2.7L] . Refer to:Engine Cooling System Draining, Vacuum Filling and Bleeding [for Engine 3.5L] . Refer to Engine Cooling System Draining, Vacuum Filling and Bleeding [For Engine 5.0L]
NOTE: If equipped.

If equipped, install the shield, the retainer and the bolts.

Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
