Cylinder Head RH: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The cylinder heads must be cool before removing it from the engine. Cylinder head warpage can result if a warm or hot cylinder head is removed.
NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine.
  1. Refer to: Jacking and Lifting - Overview .
  2. Refer to: Battery Disconnect and Connect .
  3. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
  4. Remove the following items:

    1. Refer to: Cooling Fan .
    2. Refer to: Cooling Fan Stator .
    3. Refer to: Accessory Drive Belt .
    4. Refer to: Exhaust Manifold RH .
    5. Remove the RH rocker arms. Refer to: Rocker Arm .
    6. Refer to: Coolant Crossover Manifold .

    • If equipped with dual generators, position the boot and remove the nut.

    • Disconnect the generator electrical connector.

    GFD202488Courtesy of FORD MOTOR COMPANY
  6. Remove the bolt and accessory drive belt tensioner.
    GFD202489Courtesy of FORD MOTOR COMPANY
  7. Pull the coolant pump hose spring clip up until the end of the clip is in the detent on the quick connect coupling. Disconnect the coolant hoses from the secondary coolant pump.
    GFD202490Courtesy of FORD MOTOR COMPANY
  8. NOTE: Dual generator shown, single generator similar.

    Remove the bolts and the secondary coolant pump.

    GFD202491Courtesy of FORD MOTOR COMPANY
  9. Disconnect the fuel volume control valve electrical connector and position the engine wiring harness aside.
    GFD202492Courtesy of FORD MOTOR COMPANY
  10. NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
    NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface.
    NOTE: The M12 cylinder head bolts must be discarded and new bolts installed. They are torque-to-yield design and cannot be reused.

    • Remove and discard the M12 cylinder head bolts. Remove the M8 cylinder head bolts.

    • Remove the RH cylinder head.

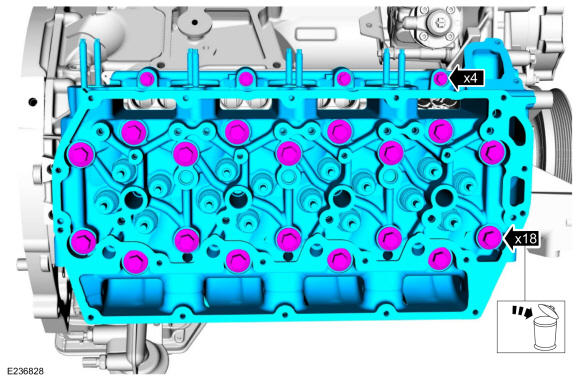

    GFD202493Courtesy of FORD MOTOR COMPANY
  11. Remove and discard the cylinder head gasket and cylinder head dowels.

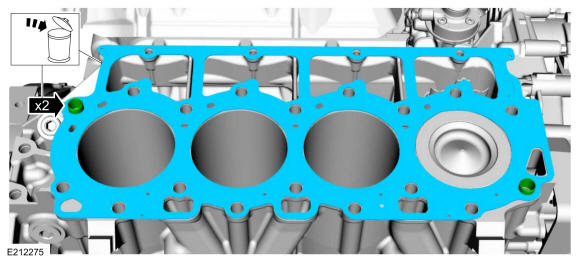

    GFD202494Courtesy of FORD MOTOR COMPANY
  12. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

    Make sure that the mating faces are clean and free of foreign material. Use the General Equipment: Plastic Scraper

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

  13. Check the cylinder head distortion. Refer to: Cylinder Head Distortion .
  14. Check the cylinder block distortion. Refer to: Cylinder Block Distortion .
