Cylinder Head RH: Installation

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

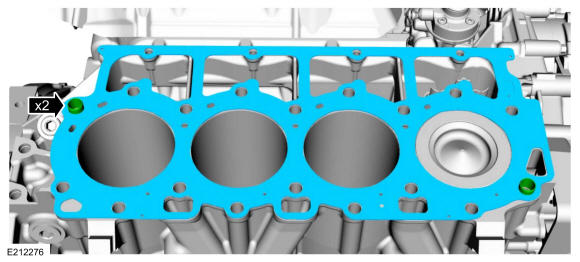

Install the new cylinder head dowels and the cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: Using too much engine oil on the threads of the cylinder head bolts may cause damage to the threads and poor sealing. Using anti-seize compounds, grease or any other lubricants other than engine oil on the cylinder head bolt threads may affect the true torque value of the bolts.

NOTE: Lightly lubricate the new M12 cylinder head bolt threads and flanges with clean engine oil.
- Install the RH cylinder head.
- Install the cylinder head bolts finger tight.
  Material: Motorcraft ® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSD (WSS-M2C171-E)
Courtesy of FORD MOTOR COMPANY

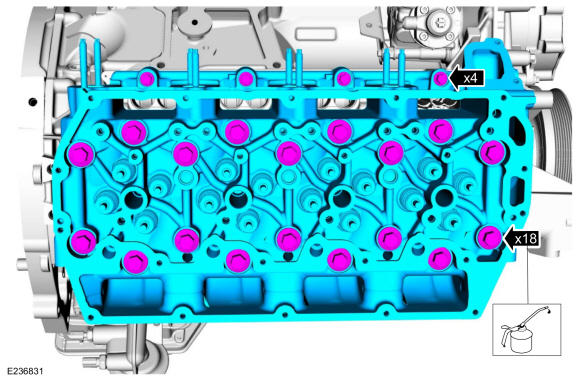

Tighten the cylinder head bolts.
Torque:

Tighten bolts 1 through 18 to : 168 lb.in (19 Nm)

Tighten bolts 1 through 18 to : 36 lb.ft (49 Nm)

Tighten bolts 1 through 18, a second time to : 36 lb.ft (49 Nm)

Tighten bolts 1 through 18, a third time to : 36 lb.ft (49 Nm)

Tighten bolts 1 through 18, an additional : 90 °

Tighten bolts 1 through 18, a second time, an additional : 90 °

Tighten bolts 1 through 18, a third time, an additional : 90 °

Tighten bolts 19 through 23 to : 22 lb.ft (30 Nm)

Fig 1: RH Cylinder Head Tightening Sequence
Courtesy of FORD MOTOR COMPANY

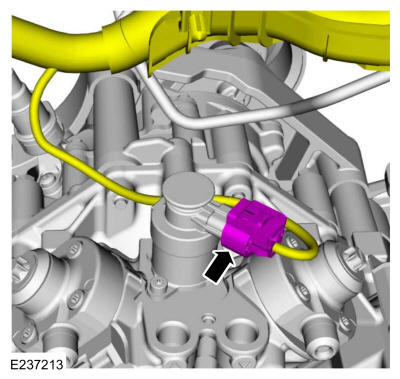

Position back the engine wiring harness aside and connect the fuel volume control valve electrical connector.

Courtesy of FORD MOTOR COMPANY

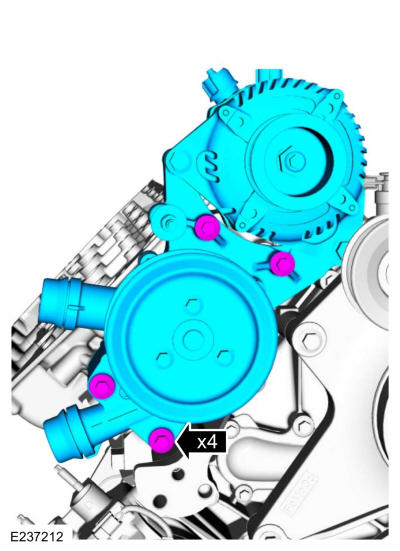

Install the secondary coolant pump and bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

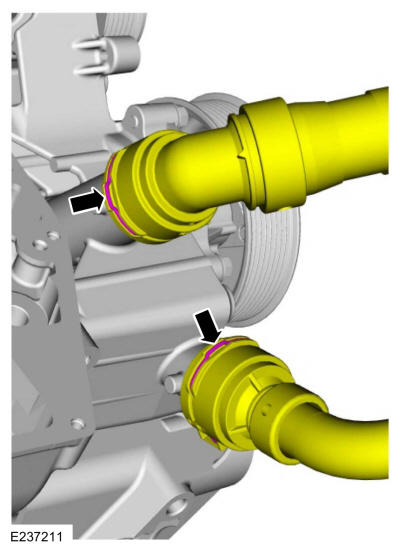

NOTE: Make sure the spring clip is in place and the coolant hose quick connect coupling is secure.

Connect the coolant hoses to the secondary coolant pump.

Courtesy of FORD MOTOR COMPANY

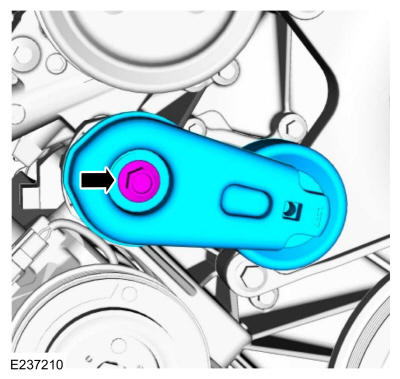

Install the accessory drive belt tensioner and the bolt.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

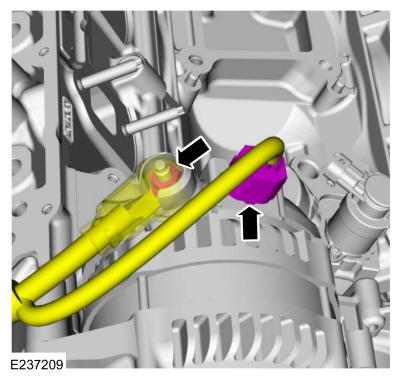

- If equipped with dual generators, position the cable and install the nut. Position back the boot.
  Torque: 159 lb.in (18 Nm)
- Disconnect the generator electrical connector.
Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Coolant Crossover Manifold .
2. Refer to: Rocker Arm .
3. Refer to: Exhaust Manifold RH .
4. Refer to: Accessory Drive Belt .
5. Refer to: Cooling Fan Stator .
6. Refer to: Cooling Fan .
Refer to: Battery Disconnect and Connect .
Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
