Cylinder Head LH: Installation

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

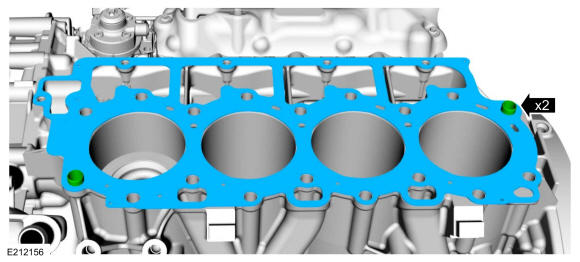

Install the new cylinder head dowels and the cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: Using too much engine oil on the threads of the cylinder head bolts may cause damage to the threads and poor sealing. Using anti-seize compounds, grease or any other lubricants other than engine oil on the cylinder head bolt threads may affect the true torque value of the bolts.

NOTE: Lightly lubricate the new M12 cylinder head bolt threads and flanges with clean engine oil.

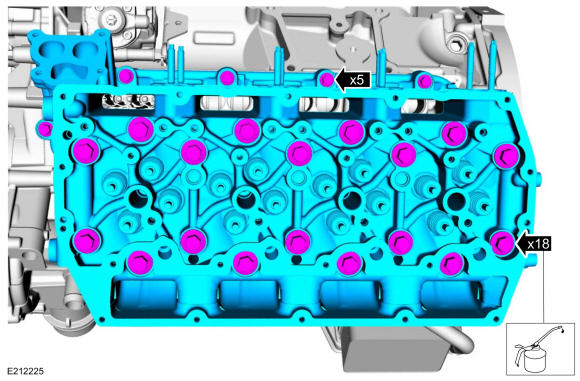

- Install the LH cylinder head.
- Install the cylinder head bolts finger tight.
  Material: Motorcraft ® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSD (WSS-M2C171-E)
Courtesy of FORD MOTOR COMPANY
Tighten the cylinder head bolts.
Torque:

Tighten bolts 1 through 18 to : 168 lb.in (19 Nm)

Tighten bolts 1 through 18 to : 36 lb.ft (49 Nm)

Tighten bolts 1 through 18, a second time to : 36 lb.ft (49 Nm)

Tighten bolts 1 through 18, a third time to : 36 lb.ft (49 Nm)

Tighten bolts 1 through 18, an additional : 90 °

Tighten bolts 1 through 18, a second time, an additional : 90 °

Tighten bolts 1 through 18, a third time, an additional : 90 °

Tighten bolts 19 through 23 to : 22 lb.ft (30 Nm)

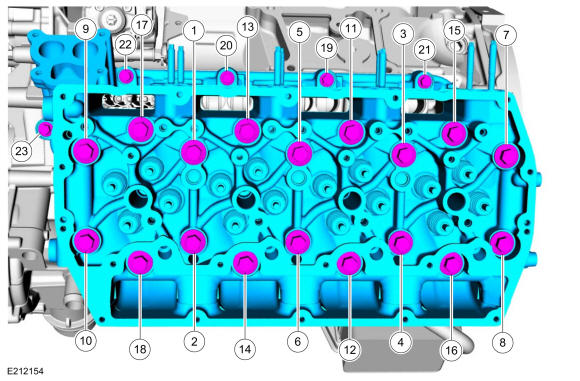

Fig 1: LH Cylinder Head Tightening Sequence
Courtesy of FORD MOTOR COMPANY

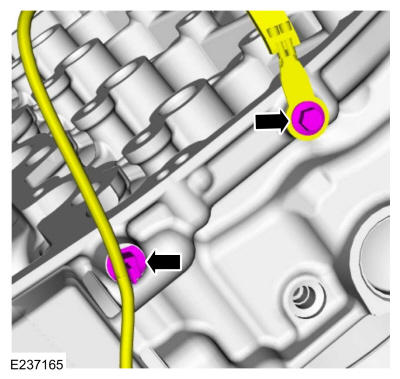

Position back the ground strap and install the bolt. Connect the wire retainer.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

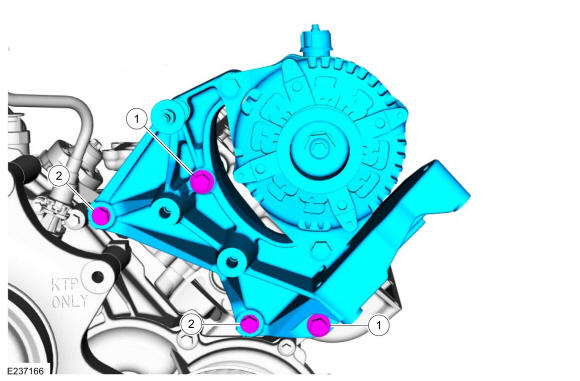

1. Install the power steering pump mounting bracket and the bolts.
  Torque: 18 lb.ft (25 Nm)
2. Install the remaining bolts.
  Torque: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY

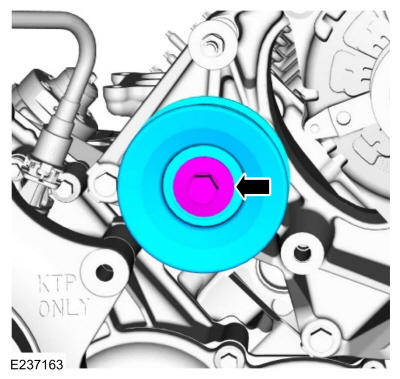

If equipped with dual generators, install the idler pulley.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the battery wire harness retainer to the bracket.

Courtesy of FORD MOTOR COMPANY
- Position the wire and install the nut. Position back the boot.
  Torque: 159 lb.in (18 Nm)
- Connect the generator electrical connector.
Courtesy of FORD MOTOR COMPANY
Position back the power steering pump and install the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the bolt into battery wire harness.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
2. Refer to: Coolant Crossover Manifold .
3. Refer to: Rocker Arm .
4. Refer to: Exhaust Manifold LH .
5. Refer to: Accessory Drive Belt .
6. Refer to: Cooling Fan Stator .
7. Refer to: Cooling Fan .
Refer to: Battery Disconnect and Connect .
