Removal And Installation: Battery: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Battery - Primary
- Disconnect the battery/batteries. REFER to: Battery Disconnect and Connect .

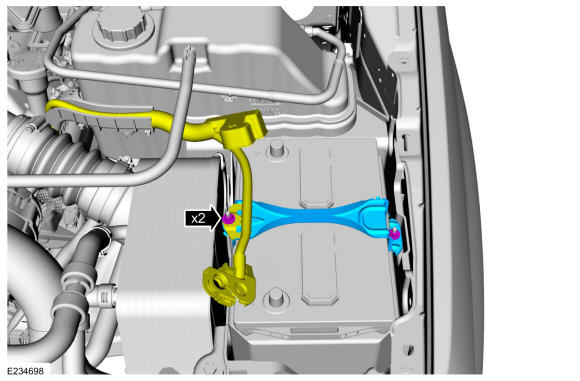

- Remove the nuts, position the battery cable and remove the battery hold-down bracket.
Torque: 36 lb.in (4.1 Nm)

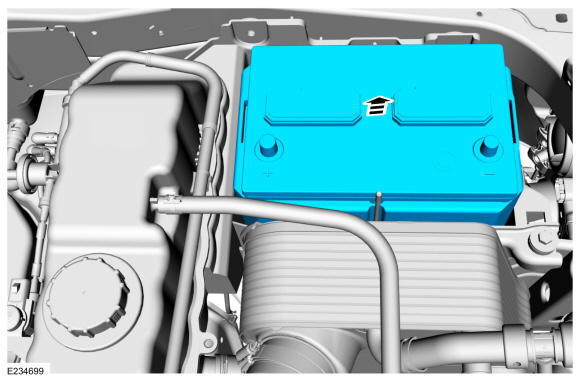

- Remove the battery.

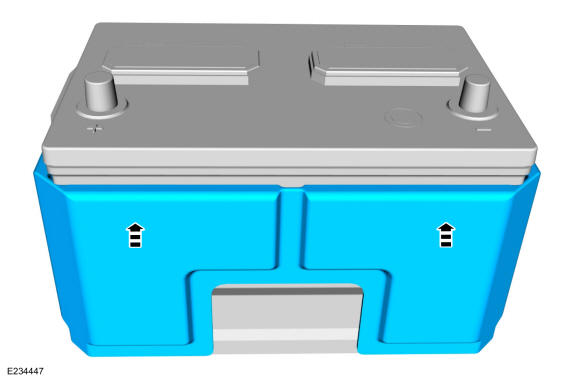

- If replacing the battery, remove the battery insulator.
Battery - Secondary
- Disconnect the batteries. REFER to: Battery Disconnect and Connect .NOTE: 6.7L diesel vehicle shown in illustration, other vehicles similar.

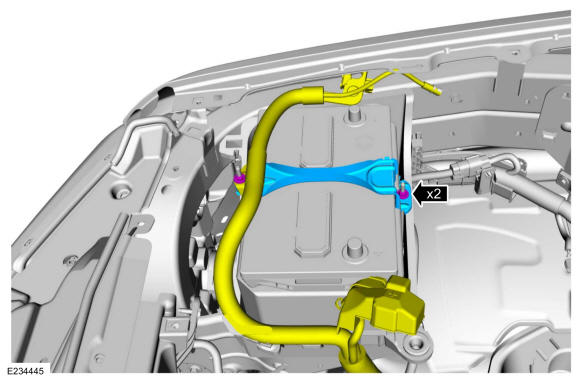

- Remove the nuts, position the battery cable and remove the battery hold-down bracket.
Torque:
36 lb.in (4.1 Nm)

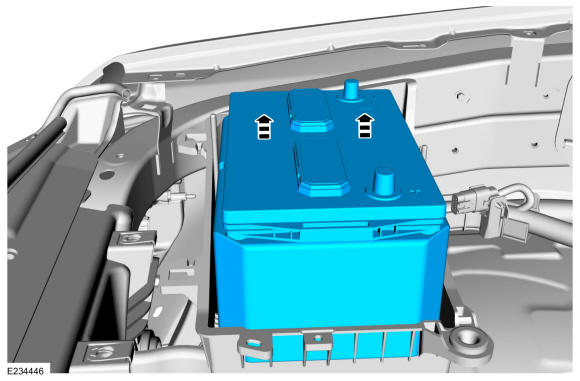

- Remove the battery.
- If replacing the battery, remove the battery insulator.
