Differential Housing Cover: Installation
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Make sure that a new component is installed.
Install the metal backed gasket between the axle housing and the differential housing cover mating surface.

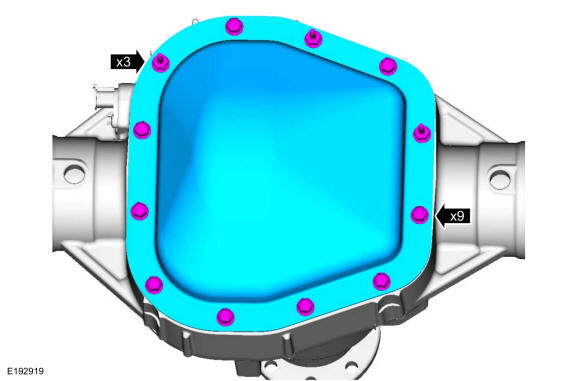

- Install the differential housing cover.
Torque: 33 lb.ft (45 Nm)

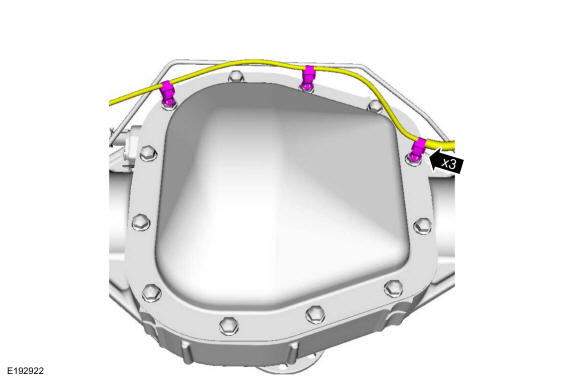

- Attach the ABS harness fasteners to the differential housing cover stud bolts.
- Fill the differential with fluid. Refer to: Differential Fluid Level Check .
