Differential Fluid Level Check
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Special Tool(s) / General Equipment
| Fluid Suction Gun |
|---|
Materials
| Name | Specification |
|---|---|
| Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL | WSS-M2C942-A |
Check
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the differential fluid fill plug.

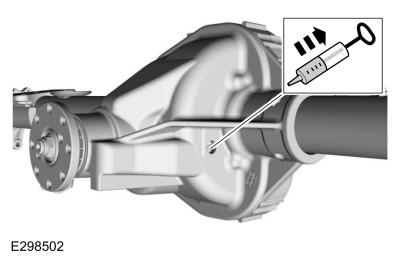

- If draining is needed. Using a general equipment, remove as much fluid as possible from the RDU. Use the General Equipment: Fluid Suction Gun

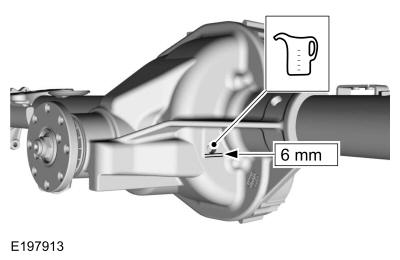

- Check and top off the differential with clean differential gear lubricant. The differential gear lubricant level should be within 6mm (1/4 in.) from the fluid level fill plug opening. Refer to: Specifications or Specifications - Raptor .
Material: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)
- Install the differential fluid fill plug.
Torque: 38 lb.ft (51 Nm)
