Instrument Panel Cluster (IPC): Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the IPC following the on-screen instructions. Record the odometer value from the original IPC. If the odometer value cannot be obtained from the IPC (display failure), perform the diagnostic routine. If the value cannot be obtained after the diagnostic routine, the customer should supply the approximate odometer value.
NOTE: Push button start vehicle shown, all others similar.

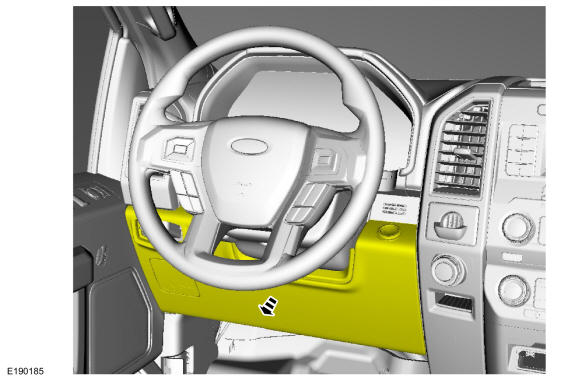

Lower the steering column opening trim panel.

Courtesy of FORD MOTOR COMPANY
Fully extend and lower the steering column.

Courtesy of FORD MOTOR COMPANY
Remove the 2 bolts, release the clips and remove IPC trim panel.
- Detach the gap hider from the upper steering column shroud.
  Torque: 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY

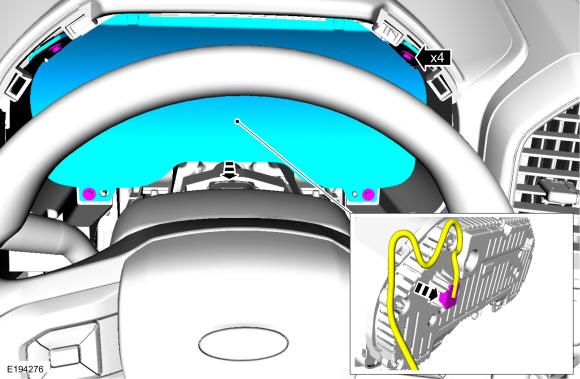

Remove the 4 bolts and the IPC.
- Disconnect the electrical connector.
  Torque: 21 lb.in (2.4 Nm)

Courtesy of FORD MOTOR COMPANY
