Instrument Panel Cluster (IPC) Lens: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the screws and torque in the sequence shown below, ensure the tabs are seated.

    Torque: 10 lb.in (1.1 Nm)

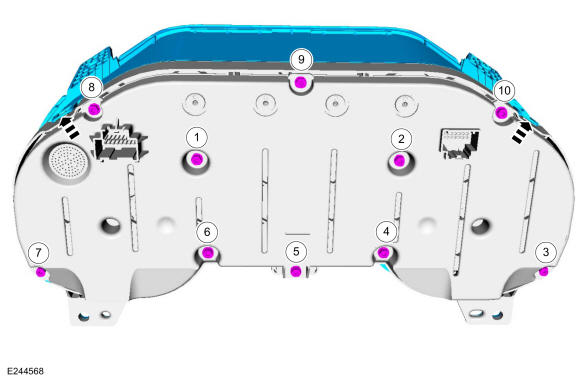

    Fig 1: Instrument Panel Cluster Tightening Sequence
    GFD465718Courtesy of FORD MOTOR COMPANY
  2. Install the IPC. Refer to: Instrument Panel Cluster (IPC) .
