Fuel Tank: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: : Before working on or disconnecting any of the fuel tubes or fuel system components, relieve the fuel system pressure to prevent accidental spraying of fuel. Fuel in the fuel system remains under high pressure, even when the engine is not running. Failure to follow this instruction may result in serious personal injury.

WARNING: When handling fuel, always observe fuel handling precautions and be prepared in the event of fuel spillage. Spilled fuel may be ignited by hot vehicle components or other ignition sources. Failure to follow these instructions may result in serious personal injury.

NOTE: If the fuel pump is operational, connect the fuel tanker hose to the engine supply hose. Connect a scan tool to the vehicle and command the fuel pump to run. It the fuel pump is operational, connect the fuel tanker hose to the engine supply hose. Connect a scan tool to the vehicle and command the fuel pump to run.

NOTE: Removal steps in this procedure may contain installation steps.

With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING AND LIFTING
Disconnect the battery. Refer to Battery Disconnect and Connect
Release the fuel system pressure. Refer to: Fuel System Pressure Release .
Drain the fuel tank. Only if fuel tank being replaced. Refer to: Fuel Tank Draining .
Remove the skid plate nut.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

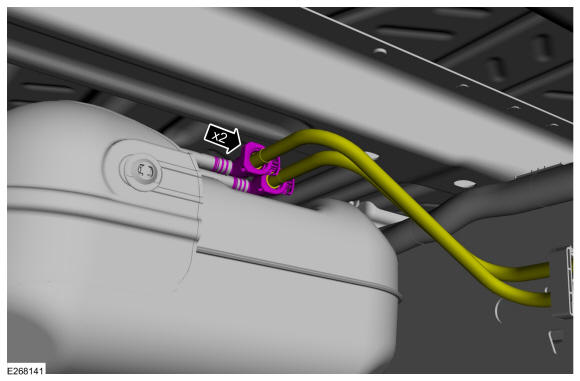

Disconnect the fuel supply and return tube quick release couplings. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

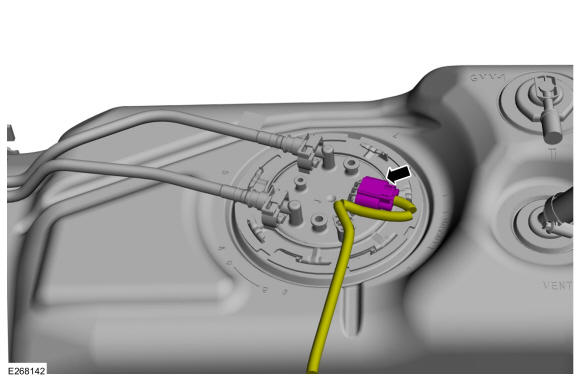

- Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

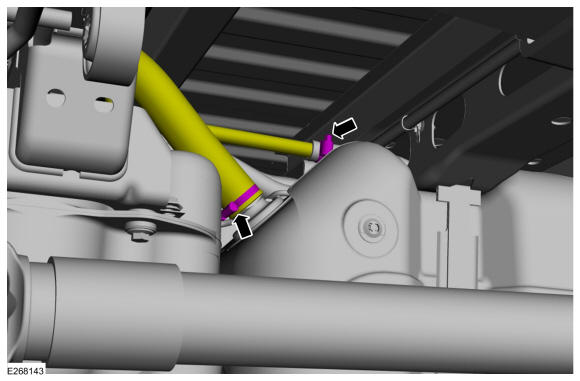

Loosen the clamp and disconnect the hose. Position the hose aside.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
Using a powertrain lift, support the fuel tank. Use Special Service Tool: 300-OTC1585AE Powertrain Lift.
- Remove the bolts.
  Torque: 35 lb.ft (48 Nm)
- Position aside the fuel tank straps and remove the fuel tank.
Courtesy of FORD MOTOR COMPANY
If the fuel tank is being replaced, remove the fuel pump and sender unit and drain the fuel tank using the fuel tanker. Refer to: Fuel Pump and Sender Unit . Use Special Service Tool: 292-00004 Fuel Tanker 100 GPM.
