Fuel Lines: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation steps.

All vehicles

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview
Release the fuel system pressure. Refer to: Fuel System Pressure Release .
Disconnect the battery. Refer to: Battery Disconnect and Connect
Remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY
NOTE: Some residual fuel may remain in the fuel lines after releasing the fuel system pressure. When disconnecting or removing any fuel lines, carefully drain any residual fuel into a suitable container.

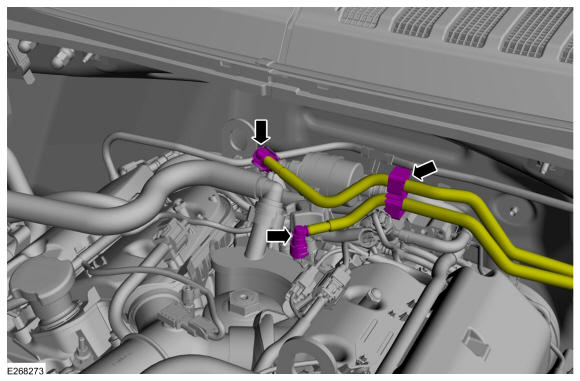

Detach the retainer and disconnect the quick release couplings. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
Release the retainers.

Courtesy of FORD MOTOR COMPANY

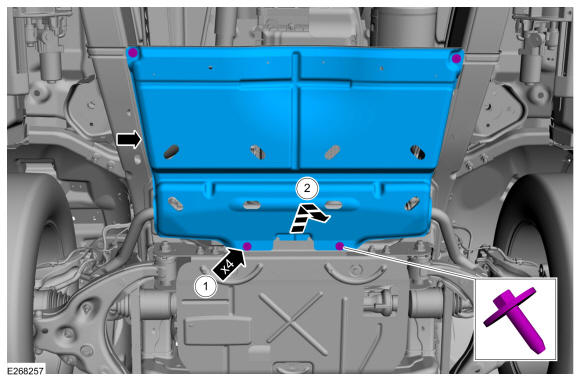

Remove the bolts and the transmission housing cover.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

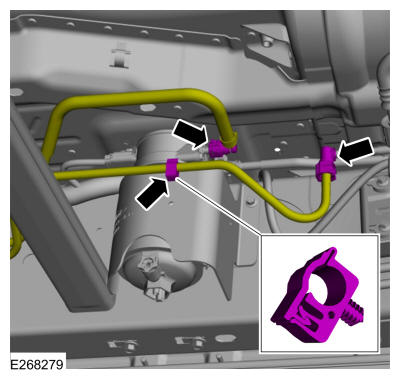

Detach the retainer and disconnect the quick release couplings. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

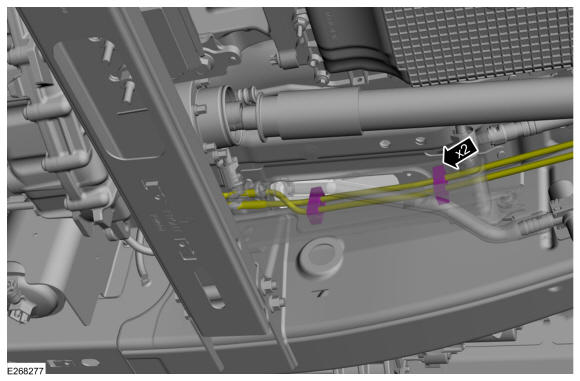

Release the retainers.

Courtesy of FORD MOTOR COMPANY
Disconnect the quick release couplings and remove the fuel lines. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

All vehicles
- Disconnect the quick release couplings. Refer to: Quick Release Coupling .
- Detach the retainer.
Courtesy of FORD MOTOR COMPANY
- If equipped with 157 Wheel Base. Disconnect the quick release couplings. Refer to: Quick Release Coupling .
- Detach the retainers and remove the fuel lines.
Courtesy of FORD MOTOR COMPANY
- If equipped with 145 Wheel Base. Disconnect the quick release couplings. Refer to: Quick Release Coupling .
- Detach the retainers and remove the fuel lines.

Courtesy of FORD MOTOR COMPANY
