Front Camber and Caster Adjustment - Raptor

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Special Tool(s) / General Equipment

Vehicle/Axle Stands

Adjustment

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Do not remove the stabilizer bar brackets until the stabilizer links have been disconnected or damage to the stabilizer bar links may occur.

NOTE: To allow for adjustment of the lower arm in the frame slots, the lower arm bolts and nuts must be removed and discarded. They are replaced with cam bolt kit 3C333. The vehicle should be supported by the frame to ease movement of the lower arm in the slot.

Using alignment equipment and the manufacturers instructions, measure the front caster and camber.
- For optimal alignment settings, Refer to: Specifications .
- If the caster and camber values are not within specification, go to the next step.

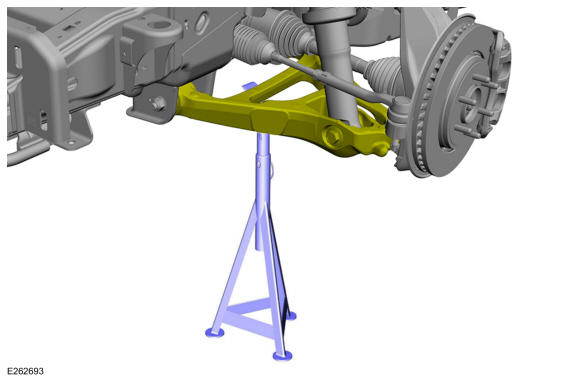

Support the lower arm. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY
NOTE: Support the lower arm with a jackstand.

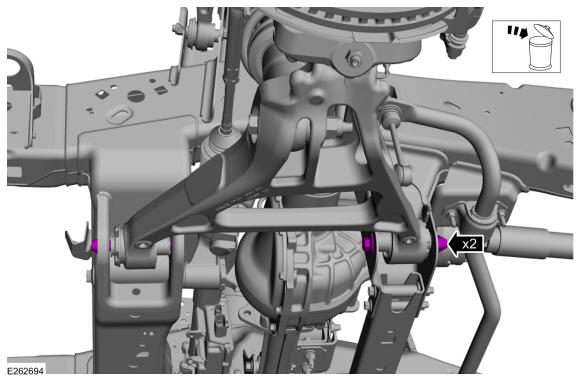

On both sides. Remove and discard the 2 lower arm nuts and bolts. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY
NOTE: Use the hex-holding feature to prevent the stud from turning while removing the nuts.

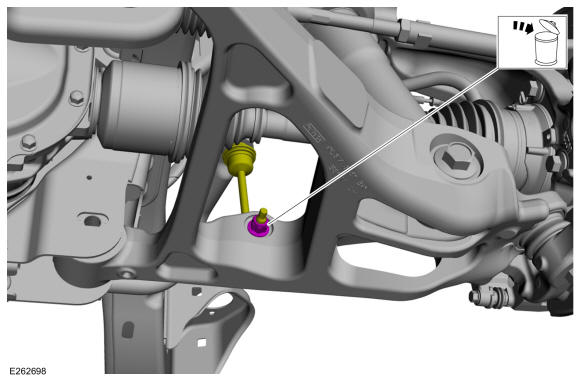

On both sides. Remove and discard the stabilizer bar link lower nuts.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

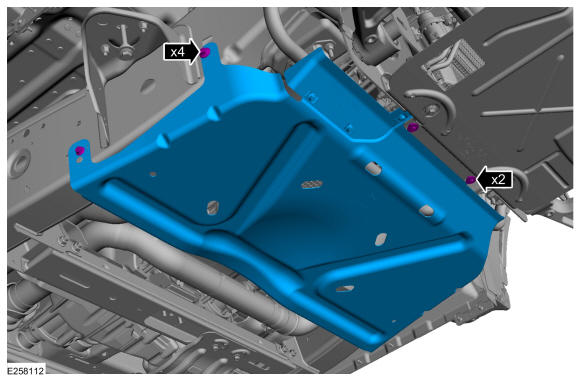

Remove the 4 underbody shield retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY

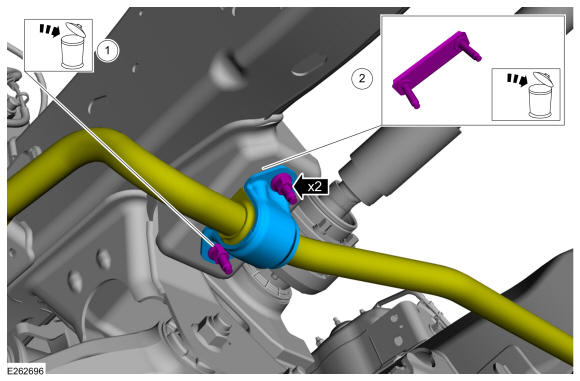

1. On both sides. Remove and discard the front stabilizer bar bracket nuts.
2. On both sides. Remove and discard the front stabilizer bar bracket retainer.
3. Position the front stabilizer bar aside.
Courtesy of FORD MOTOR COMPANY
NOTE: The new cam bolts must be installed opposite of the original lower arm bolt orientation.

NOTE: Only tighten the nuts and bolts finger tight at this stage.

NOTE: Make sure that the locating tab in inserted into the hole in the frame.

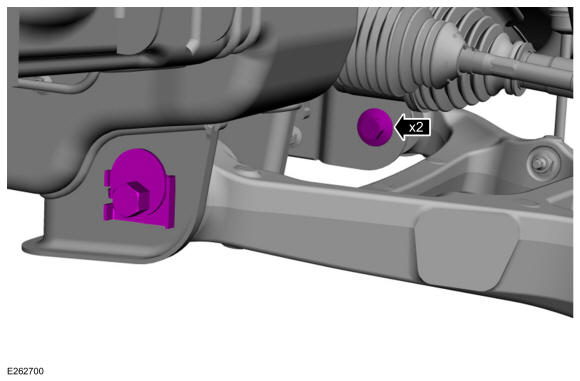

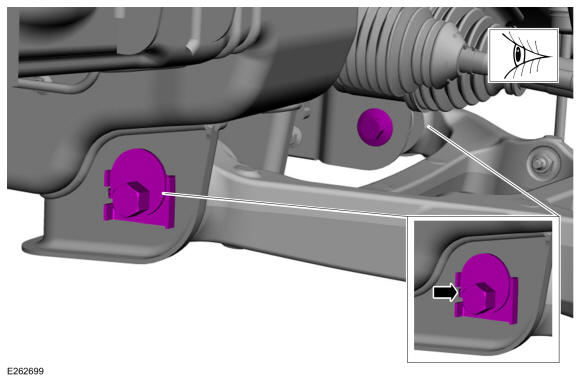

On both sides. Install the 2 new cam bolt kits.

Courtesy of FORD MOTOR COMPANY

To adjust the caster and camber, refer to the following chart.

Adjustments that require moving the front and the rear of the lower arm should be made equally.

Adjustment	Front of Lower Arm	Rear of Lower Arm
Increase caster	In	Out
Decrease caster	Out	In
Increase camber	In	In
Decrease camber	Out	Out
Increase caster and camber simultaneously	In	--
Decrease caster and camber simultaneously	Out	--

On both sides. With the weight of the vehicle resting on the wheel and tire assemblies, hold the cam bolts and tighten the nuts.
Torque: 258 lb.ft (350 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: The raised ring on the stabilizer bar must be encapsulated inside the inner groove of the stabilizer bar bushing on the driver side of the vehicle for proper installation.

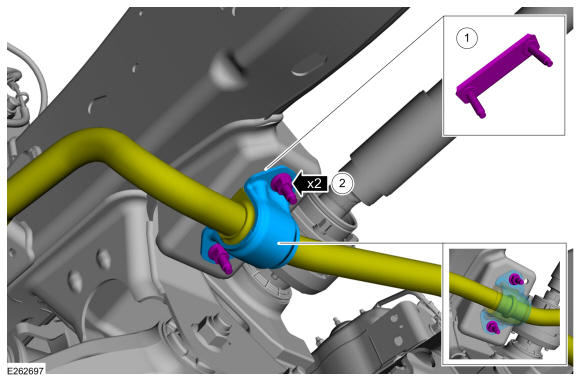

1. On both sides. Install the new front stabilizer bar bracket retainer.
2. On both sides. Position the stabilizer bar and install the new front stabilizer bar bracket nuts.
  Torque: 46 lb.ft (63 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

Install the underbody shield and the 4 underbody shield retainers.

Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Use the hex-holding feature to prevent the stud from turning while removing the nuts.

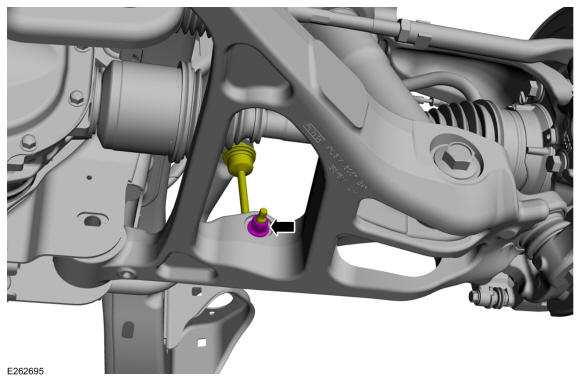

On both sides. Install the new stabilizer bar link lower nuts.

Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY
Check and if necessary, adjust front toe. Refer to: Front Toe Adjustment .
