Front Toe Adjustment

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Special Tool(s) / General Equipment

Wheel Alignment System

Adjustment

NOTE: Make sure that the vehicle is standing on a level surface.

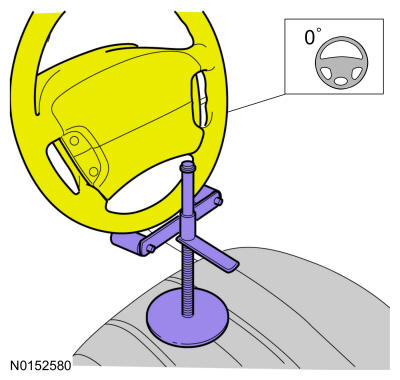

Steering wheel in straight ahead position.

Courtesy of FORD MOTOR COMPANY
Using alignment equipment and the manufacturer's instructions, check the front toe setting on both sides. Use the General Equipment: Wheel Alignment System

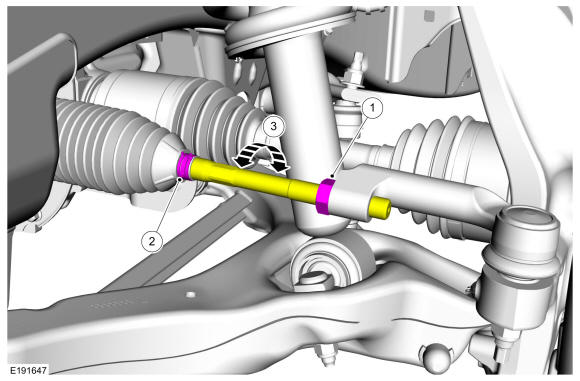

1. On both sides. Loosen the outer tie rod end jamb nut.
  Torque: 76 lb.ft (103 Nm)
2. On both sides. Position aside the steering gear boot clamp.
3. NOTE: Do not allow the steering gear bellows to twist when the inner tie rod is rotated.

  Rotate the inner tie rods until the toe reading is within specifications.
Courtesy of FORD MOTOR COMPANY
Recheck the toe settings and adjust as necessary.
