Transmission - 6.7L Power Stroke Diesel: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

  1. With the vehicle in NETURAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Disconnect the battery. Refer to: Battery Disconnect and Connect .
  3. Remove the transmission fluid level indicator.
    GFD204610Courtesy of FORD MOTOR COMPANY
  4. Remove the upper transmission fluid filler tube bolt.
    GFD204611Courtesy of FORD MOTOR COMPANY
  5. NOTE: If transmission disassembly or installation of a new transmission is necessary, drain the transmission fluid.

    Remove the bolts and the transmission fluid pan and allow the transmission fluid to drain.

    G00578643Courtesy of FORD MOTOR COMPANY
  6. NOTE: It is not necessary to torque transmission fluid pan bolts at this time.

    Install the transmission fluid pan and the bolts.

    G00578643Courtesy of FORD MOTOR COMPANY
  7. Remove and discard the oil filter.
    GFD204613Courtesy of FORD MOTOR COMPANY
  8. Disconnect the oil temperature sensor and oil pressure switch electrical connectors.
    GFD204614Courtesy of FORD MOTOR COMPANY
  9. Remove the wiring harness bracket nut and position the wiring harness aside.
    GFD204615Courtesy of FORD MOTOR COMPANY
  10. NOTE: Note the location of the stud bolt.

    Remove the stud bolt, the bolts and the oil filter adapter.

    GFD204616Courtesy of FORD MOTOR COMPANY

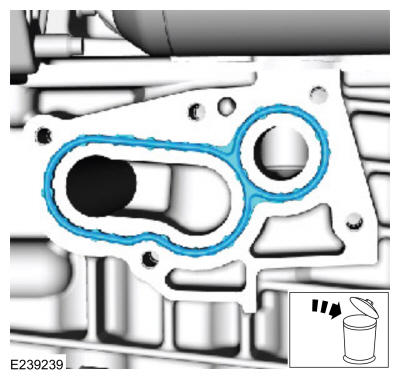

  11. Remove and discard the gasket (6840).
    GFD204617Courtesy of FORD MOTOR COMPANY
  12. Remove the starter motor. Refer to: Starter Motor .
  13. Remove the retainers and the access cover.
    GFD204618Courtesy of FORD MOTOR COMPANY

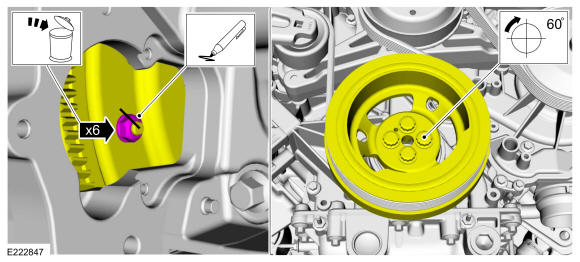

  14. NOTE: Index-mark the end of one torque converter stud and the flexplate for installation.
    NOTE: Using the crankshaft pulley bolts, turn the engine clockwise.

    Remove and discard the torque converter nuts (W715618).

    GFD204619Courtesy of FORD MOTOR COMPANY
    1. Rotate the shell of the transmission vehicle harness connector counterclockwise and disconnect the transmission vehicle harness connector.
    2. Detach the wiring harness retainer from the transmission case.
    GFD204576Courtesy of FORD MOTOR COMPANY
    1. Disconnect the selector lever cable from the manual control lever.
    2. Remove the bolts and position the selector lever cable and bracket aside.
    GFD204577Courtesy of FORD MOTOR COMPANY
  17. Remove the bolt and position aside the fuel line bracket.
    GFD204620Courtesy of FORD MOTOR COMPANY

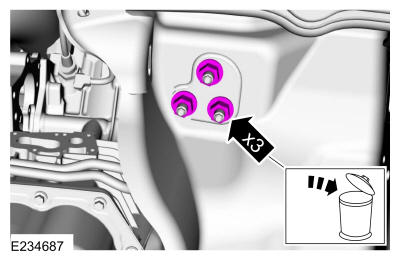

  18. NOTE: Only use hand tools when loosening the engine support insulator nuts or damage to the engine support insulator may occur.

    Remove and discard the RH engine support insulator nuts.

    GFD204621Courtesy of FORD MOTOR COMPANY

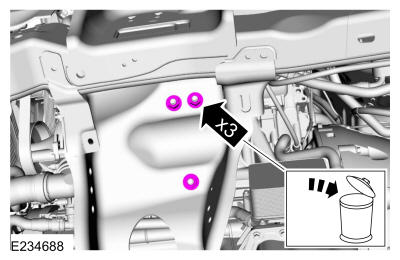

  19. NOTE: Only use hand tools when loosening the engine support insulator nuts or damage to the engine support insulator may occur.

    Remove and discard the LH engine support insulator nuts.

    GFD204622Courtesy of FORD MOTOR COMPANY

    Rear Wheel Drive (RWD) vehicles

  20. NOTE: When removing the crossmember, support the transmission using a heavy duty transmission jack.

    • Place the jack so the fluid pan does not support the weight of the transmission.

    • Fasten a chain or ratchet strap over the top of the transmission and to both sides of the jack.

    Failure to use a heavy duty transmission jack can result in damage to the transmission.  Remove the transmission support crossmember. Refer to: Transmission Support Crossmember .

    Rear Wheel Drive (RWD) vehicles equipped with a slip yoke

  21. Remove the rear driveshaft. Refer to: Rear Driveshaft .

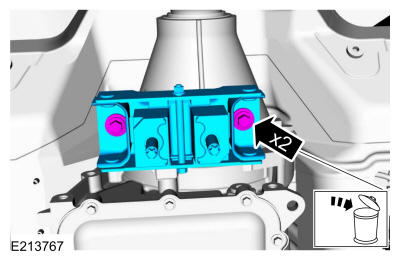

  22. NOTE: If installing a new, remanufactured or overhauled transmission.

    1. Remove and discard the transmission support insulator-to-transmission bolts.
    2. Remove the transmission support insulator.

    GFD204623Courtesy of FORD MOTOR COMPANY

    Rear Wheel Drive (RWD) vehicles equipped with a fixed yoke

  23. NOTE: It may be necessary to tap the driveshaft yoke with a plastic or rubber soft-faced hammer if a pry area is not present on the driveshaft side.

    1. Index mark the rear driveshaft.
    2. Remove and discard the driveshaft to output shaft flange bolts and straps (4A254).

    GFD204527Courtesy of FORD MOTOR COMPANY
  24. Remove and discard the center bearing mounting bolts from the center bearing bracket. Position aside and Support the driveshaft using mechanics wire.
    GFD204528Courtesy of FORD MOTOR COMPANY
  25. NOTE: If installing a new, remanufactured or overhauled transmission.

    1. Remove and discard the transmission support insulator bracket bolts.
    2. Remove the transmission support insulator and bracket.

    GFD204582Courtesy of FORD MOTOR COMPANY

    Four-Wheel Drive (4WD) vehicles

  26. NOTE: When removing the crossmember, support the transmission using a heavy duty transmission jack.

    • Place the jack so the fluid pan does not support the weight of the transmission.

    • Fasten a chain or ratchet strap over the top of the transmission and to both sides of the jack.

    Failure to use a heavy duty transmission jack can result in damage to the transmission.

    NOTE: If the transmission is being removed for the flexplate or engine related repairs, the transfer case does not need to be separated from the transmission.

    Remove the transfer case. Refer to: Transfer Case .

    All vehicles

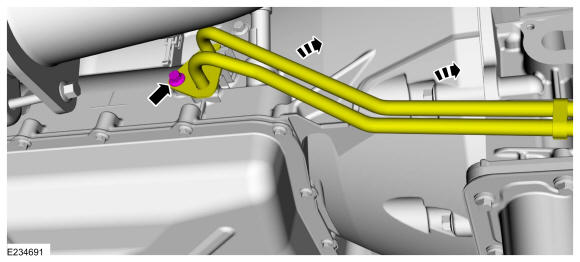

  27. Remove the bolt and position the transmission fluid cooler tubes aside.
    GFD204624Courtesy of FORD MOTOR COMPANY
  28. Inspect the transmission to be sure the transmission fluid tube seals and backing rings were removed with the transmission fluid tubes and are not stuck in the transmission. If the transmission fluid tube seals or backing rings are stuck in the transmission, remove the seals and backing rings.
    GFD204586Courtesy of FORD MOTOR COMPANY
  29. Remove the lower transmission fluid filler tube bolt and position the transmission fluid filler tube aside.
    GFD204625Courtesy of FORD MOTOR COMPANY
  30. Remove and discard the transmission fluid filler tube O-ring (391308).
    GFD204626Courtesy of FORD MOTOR COMPANY
  31. NOTE: Secure the transmission to the transmission jack with a safety strap or chain.
    NOTE: Make sure the transmission jack makes contact on the outer ribs of the transmission fluid pan.

    Using a high-lift transmission jack, support the transmission.

    1. Outer ribs of the transmission jack. Use the General Equipment: Transmission Jack
    2. Safety chain.

    GFD204589Courtesy of FORD MOTOR COMPANY
  32. Remove the lower bellhousing bolts.
    GFD204627Courtesy of FORD MOTOR COMPANY
  33. Remove the upper bellhousing bolts and the fuel tube bracket. Remove the transmission from the engine dowel pins.
    GFD204628Courtesy of FORD MOTOR COMPANY
  34. NOTE: Be sure to position the Torque Converter Retainer in the proper position to ensure the torque converter is held securely in place.

    Slide the transmission back enough to install the special tool and remove the transmission.

    Install Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

    GFD204597Courtesy of FORD MOTOR COMPANY
  35. NOTE: Failure to flush the transmission fluid cooler and transmission fluid cooler tubes can result in metallic contamination of the transmission.

    If installing a new, remanufactured or overhauled transmission, clean and backflush the transmission fluid cooler tubes to prevent repeat repairs. Refer to: Transmission Fluid Cooler - Backflushing and Cleaning .

  36. NOTE: Failure to install a new auxiliary transmission fluid cooler can result in metallic contamination of the transmission.

    If installing a new, remanufactured or overhauled transmission install a new auxiliary transmission fluid cooler if equipped.

  37. NOTE: Failure to clean the PTO can result in metallic contamination of the transmission.

    For vehicles equipped with a PTO assembly, prior to installing the transmission, flush and clean the PTO assembly to remove any foreign material. Failure to remove foreign material from the PTO assembly may result in subsequent transmission concerns.
