Transmission Fluid Cooler Tubes - 6.2L V8 6.8L Triton-30V - V10, 6-Speed Automatic Transmission - 6R140: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the radiator grille. Refer to: Radiator Grille .
Remove the transmission fluid cooler tube coupling secondary latches.

Courtesy of FORD MOTOR COMPANY
NOTE: Be prepared to collect escaping fluid.

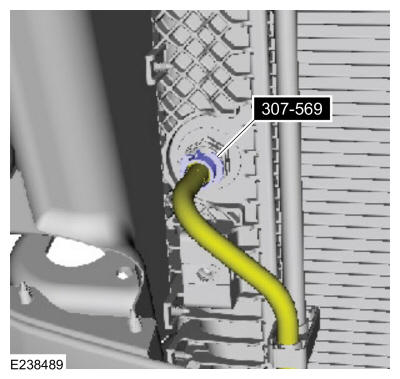

Using the special tool, disconnect the auxiliary transmission fluid cooler RH tube. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).

Courtesy of FORD MOTOR COMPANY
NOTE: Be prepared to collect escaping fluid.

Using the special tool, disconnect the auxiliary transmission fluid cooler LH tube. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).

Courtesy of FORD MOTOR COMPANY
Remove the transmission fluid in-tank cooler-to-auxiliary cooler tube secondary latch.

Courtesy of FORD MOTOR COMPANY
NOTE: Be prepared to collect escaping fluid.

Using the special tool, disconnect and remove the transmission fluid in-tank cooler-to-auxiliary cooler tube. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).

Courtesy of FORD MOTOR COMPANY
Remove the transmission-to-in-tank cooler tube secondary latch.

Courtesy of FORD MOTOR COMPANY
NOTE: Be prepared to collect escaping fluid.

Using the special tool, disconnect the transmission-to-in-tank cooler tube. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).

Courtesy of FORD MOTOR COMPANY
Remove the transmission fluid cooler tubes-to-transmission fluid cooler front tubes secondary latches.

Courtesy of FORD MOTOR COMPANY
NOTE: Be prepared to collect escaping fluid.

Using the special tool, disconnect the transmission fluid cooler tubes from the transmission fluid cooler front tubes.

Courtesy of FORD MOTOR COMPANY
Disconnect the transmission fluid cooler front tubes retainer and remove the transmission fluid cooler front tubes.

Courtesy of FORD MOTOR COMPANY

Vehicles equipped with a 6.2L engine
Remove the transmission fluid cooler tubes bracket nut.

Courtesy of FORD MOTOR COMPANY

Vehicles equipped with a 6.8L engine
Disconnect the battery negative cable. Refer to: Battery Disconnect and Connect .
Remove the transmission fluid cooler tubes bracket nut and position the bracket aside.

Courtesy of FORD MOTOR COMPANY
Remove the battery cable bracket nut.

Courtesy of FORD MOTOR COMPANY
Open the starter motor solenoid battery cable cover.

Courtesy of FORD MOTOR COMPANY
Disconnect the starter motor wiring and position the wiring harness aside.
1. Remove the nut and disconnect the starter motor solenoid battery cable.
2. Remove the nut and disconnect the starter motor solenoid control wire.
3. Remove the nut and disconnect the ground cable.
Courtesy of FORD MOTOR COMPANY

All vehicles
Remove the bolt and the transmission fluid cooler tubes.

Courtesy of FORD MOTOR COMPANY
Inspect the transmission to be sure the transmission fluid tube seals and backing rings were removed with the transmission fluid tubes and are not stuck in the transmission. If the transmission fluid tube seals or backing rings are stuck in the transmission, remove the seals and backing rings.

Courtesy of FORD MOTOR COMPANY
