Solenoid Body Identification and Strategy
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

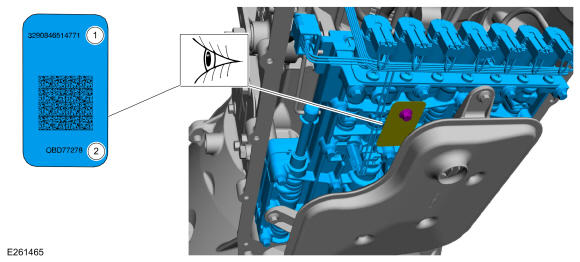

| Item | Description |
|---|---|
| 1 | Thirteen-digit solenoid body strategy |
| 2 | Eight-digit solenoid body identification |
If the solenoid body strategy printed on the tag on the solenoid body does not match the solenoid body tag on the side of the transmission case, a new main control must be installed and the solenoid body strategy must be downloaded into the PCM or TCM or harsh shifts will result.
