Glow Plug Module: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer toOEM Color Coding

NOTE: The glow plug module is located above the right front fender splash shield.

Disconnect the battery. Refer to: Battery Disconnect and Connect .
Remove the right fender splash shield. Refer to: Fender Splash Shield .

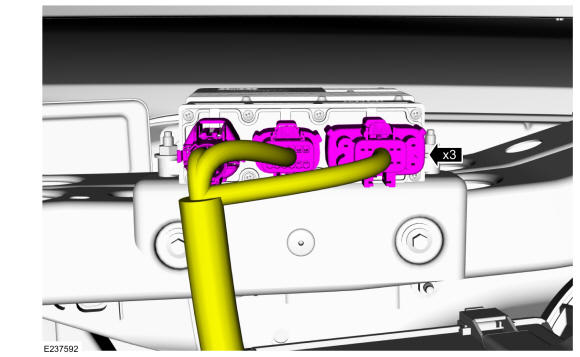

Disconnect the glow plug module electrical connectors.

Courtesy of FORD MOTOR COMPANY

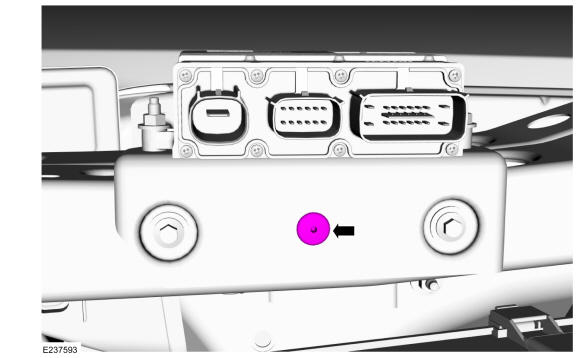

Remove the glow plug module mounting bracket pushpin.

Courtesy of FORD MOTOR COMPANY

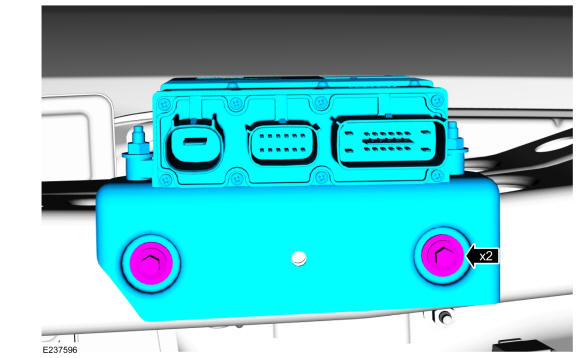

Remove the glow plug module mounting bracket retainers, then remove the glow plug module and the glow plug module mounting bracket.

Courtesy of FORD MOTOR COMPANY

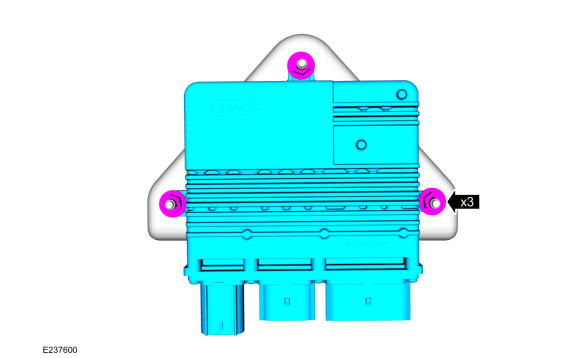

Remove the glow plug module retainers and then remove the glow plug module.
