Glow Plug Module: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the glow plug module, then install and tighten the glow plug module retainers.

    Torque: 97 lb.in (11 Nm)

    GFD407931Courtesy of FORD MOTOR COMPANY

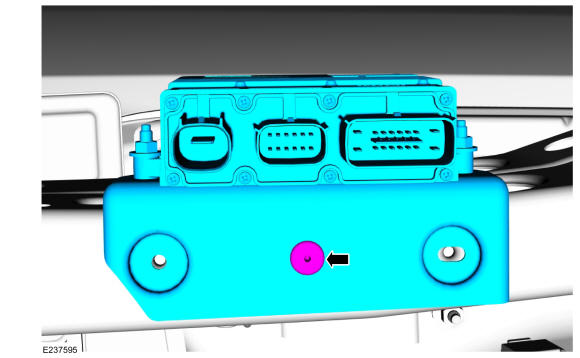

  2. Install the glow plug module and mounting bracket, then install the glow plug module mounting bracket pushpin.
    GFD407932Courtesy of FORD MOTOR COMPANY

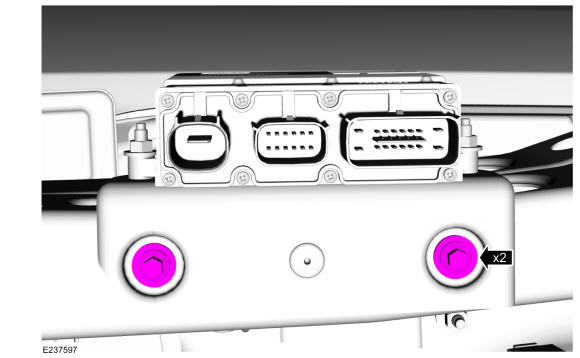

  3. Install and tighten the glow plug module mounting bracket retainers.

    Torque: 97 lb.in (11 Nm)

    GFD407933Courtesy of FORD MOTOR COMPANY
  4. Connect the glow plug module electrical connectors.
    GFD407928Courtesy of FORD MOTOR COMPANY
  5. Install the right fender splash shield. Refer to: Fender Splash Shield .
  6. Connect the battery. Refer to: Battery Disconnect and Connect .
