Transmission Fluid Cooler Tubes - 6.2L V8: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

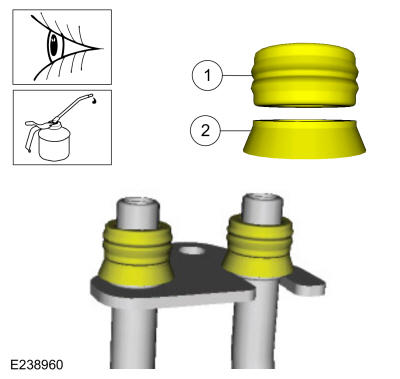

Inspect the transmission fluid tube backing rings and seals for damage and install new backing rings or seals if necessary.
1. Seal (7D285)
  Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)
2. Backing ring (7J324)
Courtesy of FORD MOTOR COMPANY
Install the transmission fluid cooler tubes and the bolt.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

Vehicles equipped with a 6.8L engine

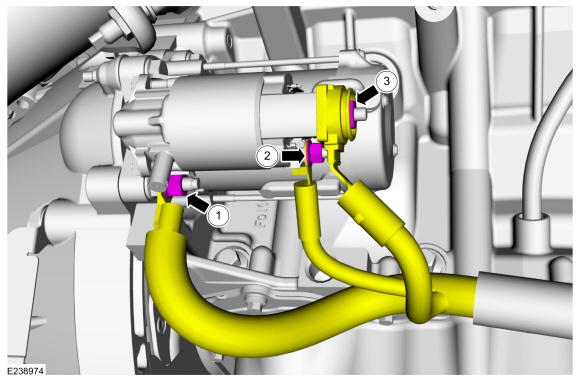

Position the wiring harness and connect the starter motor wiring.
1. Connect the ground cable and install the nut.
  Torque: 18 lb.ft (25 Nm)
2. Connect the starter motor solenoid control wire and install the nut.
  Torque: 53 lb.in (6 Nm)
3. Connect the starter motor solenoid battery cable and install the nut.
  Torque: 106 lb.in (12 Nm)
Courtesy of FORD MOTOR COMPANY

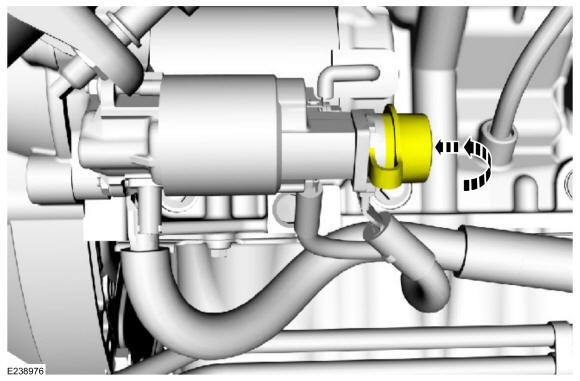

Close the starter motor solenoid battery cable cover.

Courtesy of FORD MOTOR COMPANY
Install the battery cable bracket nut.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
Position the bracket and install the transmission fluid cooler tubes bracket nut.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the battery negative cable. Refer to: Battery Disconnect and Connect .
All vehicles

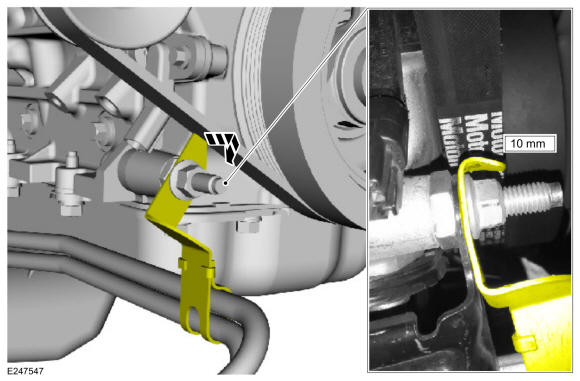

NOTE: The tab on the transmission fluid cooler tube assembly bracket may interfere with the accessory drive belt. To prevent damage to the belt, bend the tab as shown.

Bend the tab on the transmission fluid cooler tube assembly bracket down toward the front of the vehicle. Verify the minimum clearance.

Dimension: 0.4 in (10 mm)

Courtesy of FORD MOTOR COMPANY

Vehicles equipped with a 6.2L engine

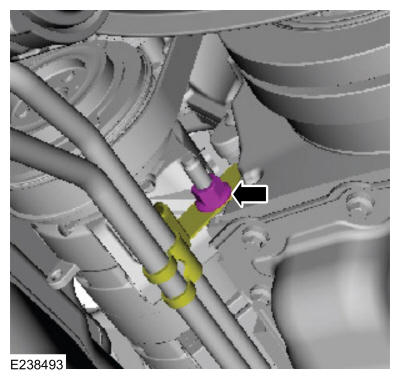

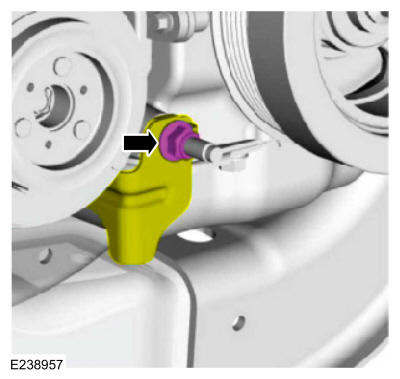

Install the transmission fluid cooler tubes bracket nut.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles

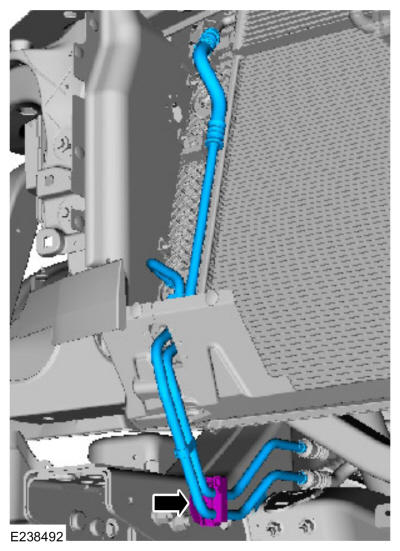

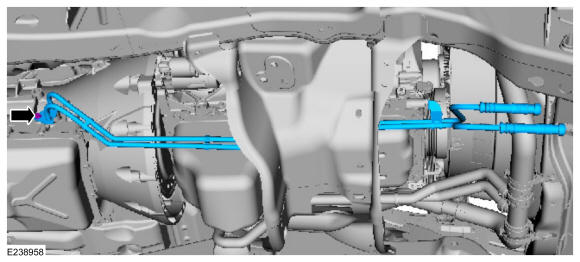

Install the transmission fluid cooler front tubes and connect the transmission fluid cooler front tubes retainer.

Courtesy of FORD MOTOR COMPANY

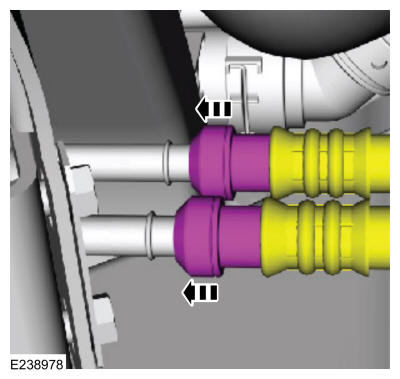

Connect the transmission fluid cooler tubes to the transmission fluid cooler front tubes.

Courtesy of FORD MOTOR COMPANY
Install the transmission fluid cooler tubes-to-transmission fluid cooler front tubes secondary latches.

Courtesy of FORD MOTOR COMPANY

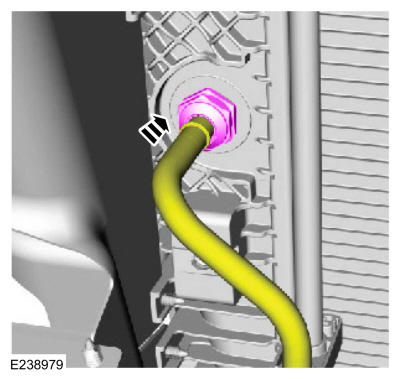

Connect the transmission-to-in-tank cooler tube.

Courtesy of FORD MOTOR COMPANY

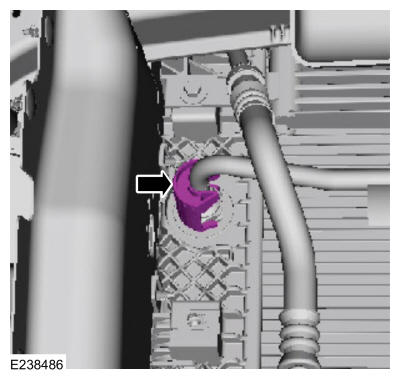

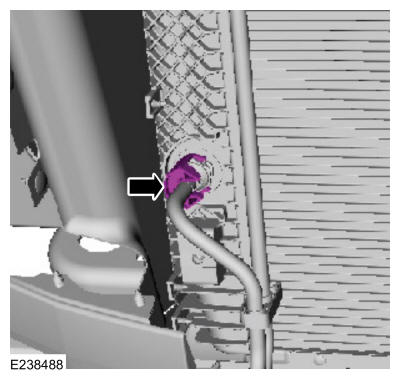

Install the transmission-to-in-tank cooler tube secondary latch.

Courtesy of FORD MOTOR COMPANY

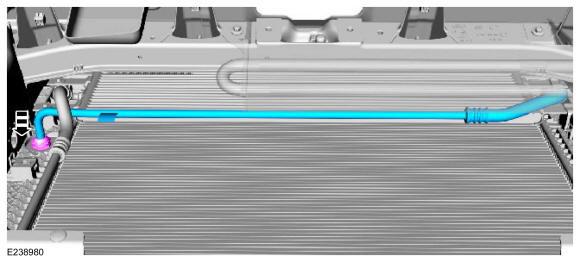

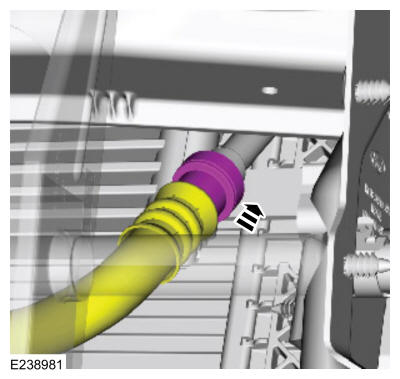

Install and connect the transmission fluid in-tank cooler-to-auxiliary cooler tube.

Courtesy of FORD MOTOR COMPANY
Install the transmission fluid in-tank cooler-to-auxiliary cooler tube secondary latch.

Courtesy of FORD MOTOR COMPANY

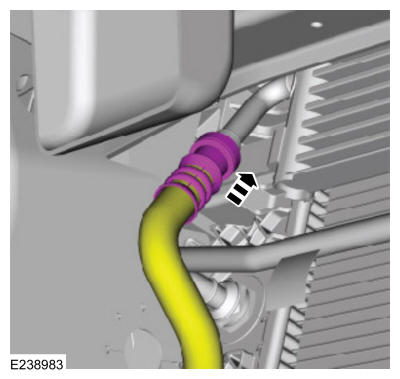

Connect the auxiliary transmission fluid cooler LH tube.

Courtesy of FORD MOTOR COMPANY
Connect the auxiliary transmission fluid cooler RH tube.

Courtesy of FORD MOTOR COMPANY

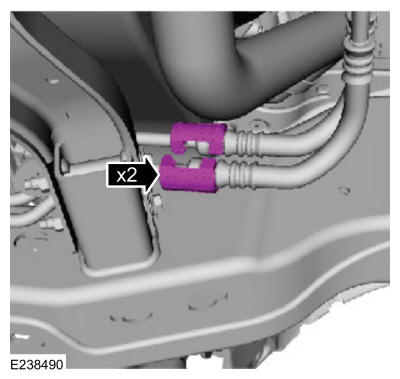

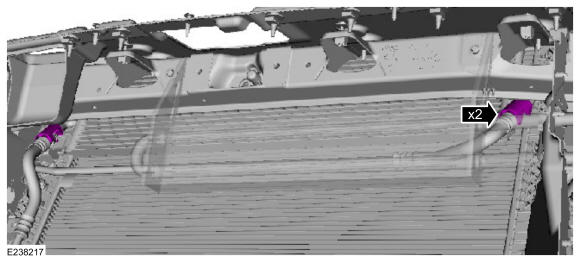

Install the transmission fluid cooler tube coupling secondary latches.

Courtesy of FORD MOTOR COMPANY
Install the radiator grille. Refer to: Radiator Grille .
Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
