Oil Pan: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty and 2019 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Release the fuel system pressure. Refer to: Fuel System Pressure Release .
Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling And Bleeding .
Remove the following items:
1. Cooling fan shroud. Refer to: Cooling Fan Shroud .
2. Generator. Refer to: Generator - 6.8L Triton-30V - V10 .
3. Intake manifold. Refer to: Intake Manifold .
4. Air cleaner. Refer to: Air Cleaner .
Remove the oil level indicator.

Courtesy of FORD MOTOR COMPANY
Disconnect the heater hose.
- Remove the bolt and the coolant tube.
- Remove and discard the O-ring seals.
Courtesy of FORD MOTOR COMPANY
Remove the nut and position the transmission oil cooler tube bracket aside.

Courtesy of FORD MOTOR COMPANY
NOTE: The transmission support insulator-to-crossmember nuts must be discarded and new nuts installed, or damage to the vehicle or transmission support insulator may occur.

Remove and discard the transmission support insulator nuts.

Courtesy of FORD MOTOR COMPANY
If equipped, remove the bolts and the skidplate.

Courtesy of FORD MOTOR COMPANY
Remove the RH exhaust pipe-to-manifold nuts and discard.

Courtesy of FORD MOTOR COMPANY
Remove the LH exhaust pipe-to-manifold nuts and discard.

Courtesy of FORD MOTOR COMPANY
Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment

Courtesy of FORD MOTOR COMPANY
Remove the retainer and position the engine oil cooler aside.

Courtesy of FORD MOTOR COMPANY
- Remove the drain plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment
- Install the drain plug.
  Torque: 17 lb.ft (23 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Failure to replace the engine mount nuts may result in engine mount damage.

NOTE: Only use hand tools when loosening the engine mount nuts or damage to the engine mount may occur.

Remove and discard the LH engine mount nuts.

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to replace the engine mount nuts may result in engine mount damage.

NOTE: Only use hand tools when loosening the engine mount nuts or damage to the engine mount may occur.

Remove and discard the RH engine mount nuts.

Courtesy of FORD MOTOR COMPANY
Install Special Service Tool: 303-639 Support Bracket, Engine.

Courtesy of FORD MOTOR COMPANY
1. Install Special Service Tool: 303-F070 Support Bar, Engine.
2. Using the engine support bar, raise the engine.
Courtesy of FORD MOTOR COMPANY

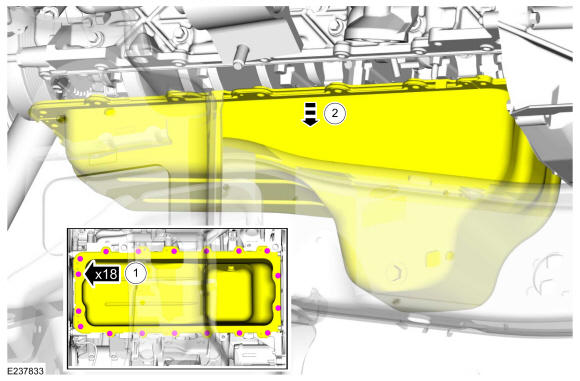

1. Remove the bolts.
2. Lower the oil pan.
Courtesy of FORD MOTOR COMPANY

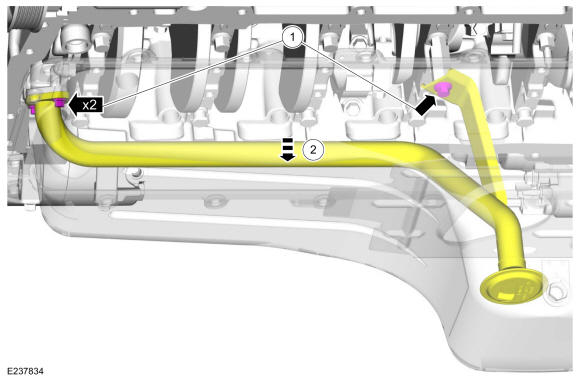

1. Remove the bolts.
2. Position the oil pump screen and pickup tube into the oil pan.
Courtesy of FORD MOTOR COMPANY
NOTE: Support the transmission on the pan rails only or internal transmission damage can occur.

Install a transmission jack and raise the transmission. Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY

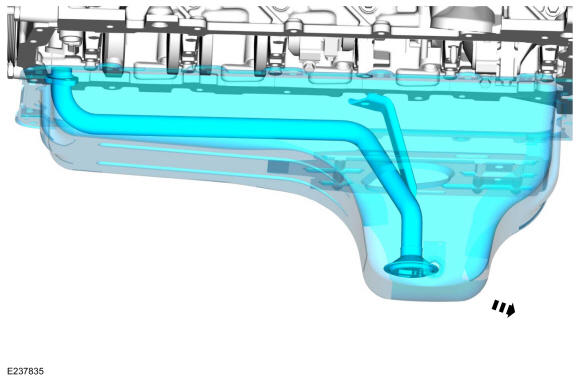

Remove the oil pan, the gasket and the oil pump screen and pickup tube.

Courtesy of FORD MOTOR COMPANY

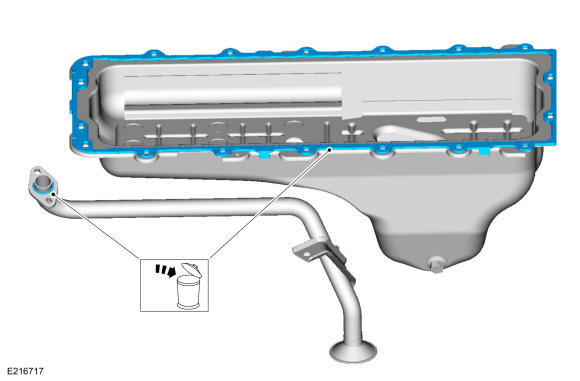

- Discard the oil pan gasket.
- Discard the oil pump screen and pickup tube O-ring seal.
Courtesy of FORD MOTOR COMPANY

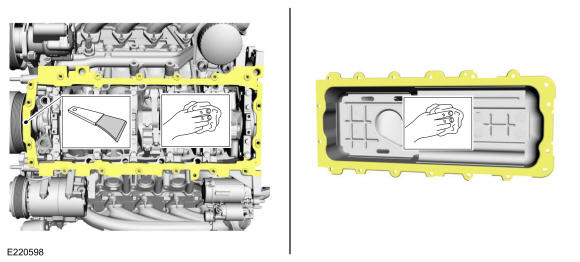

Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

Courtesy of FORD MOTOR COMPANY
