Engine Mount LH: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty and 2019 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the LH engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.
    GFD405724Courtesy of FORD MOTOR COMPANY
  2. NOTE: Only use hand tools when tightening the engine mount nuts or damage to the engine mount may occur.

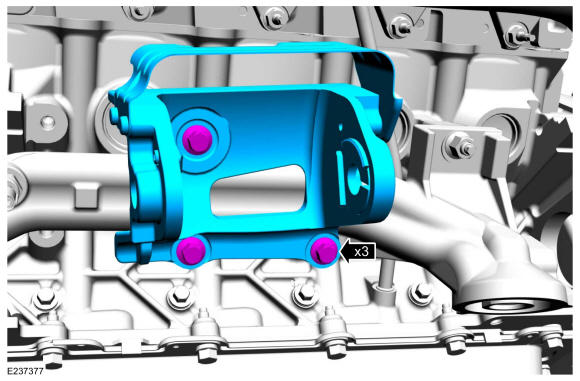

    NOTE: Clean the engine mount bracket-to-cylinder block surfaces of any dirt or foreign material prior to installation.

    If removed, install the LH engine support insulator bracket and the new bolts.

    Torque: Stage 1: 22 lb.ft (30 Nm) | Stage 2: 60 deg.

    GFD406345Courtesy of FORD MOTOR COMPANY

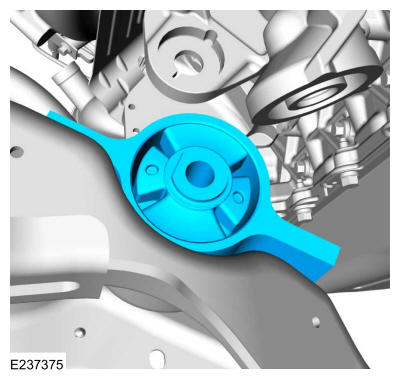

  3. Install the LH engine support insulator.
    GFD406343Courtesy of FORD MOTOR COMPANY
    1. Using the engine support bar, lower the engine.
    2. Remove Special Service Tool: 303-F070 Support Bar, Engine.

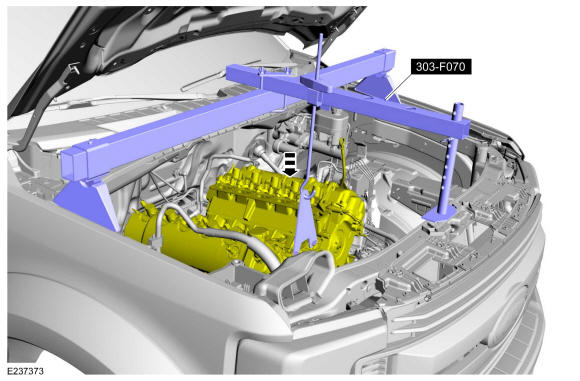

    GFD406346Courtesy of FORD MOTOR COMPANY
  5. Remove Special Service Tool: 303-639 Support Bracket, Engine.

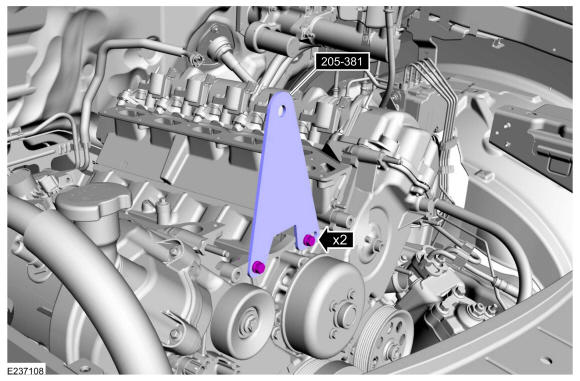

    GFD406341Courtesy of FORD MOTOR COMPANY
  6. NOTE: Do not tighten the fasteners at this time.

    Install the new LH mount through bolt.

    GFD406347Courtesy of FORD MOTOR COMPANY
  7. NOTE: Do not tighten the fasteners at this time.

    Install the new RH mount through bolt.

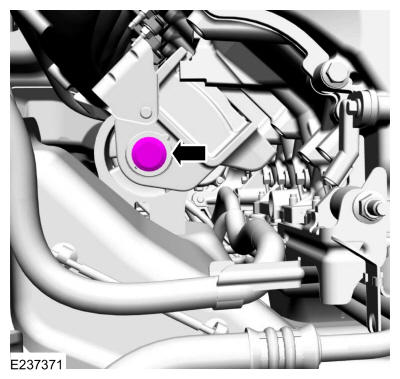

    GFD406348Courtesy of FORD MOTOR COMPANY
  8. NOTE: Only use hand tools when tightening the engine mount bolts or damage to the engine mount may occur.

    Install the new LH engine support insulator bracket nuts.

    Torque: 148 lb.ft (200 Nm)

    GFD405729Courtesy of FORD MOTOR COMPANY

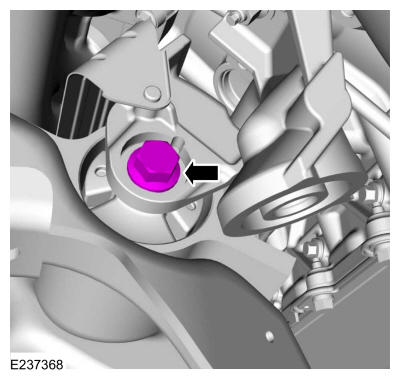

  9. NOTE: Only use hand tools when tightening the engine mount nuts or damage to the engine mount may occur.

    Tighten the LH engine mount through bolt.

    Torque: 258 lb.ft (350 Nm)

    GFD406347Courtesy of FORD MOTOR COMPANY
  10. NOTE: Only use hand tools when tightening the engine mount nuts or damage to the engine mount may occur.

    Tighten the RH engine mount through bolt.

    Torque: 258 lb.ft (350 Nm)

    GFD406348Courtesy of FORD MOTOR COMPANY
  11. NOTE: The transmission support insulator-to-crossmember nuts must be discarded and new nuts installed, or damage to the vehicle or transmission support insulator may occur.

    Remove and discard the transmission support insulator nuts.

    GFD405731Courtesy of FORD MOTOR COMPANY
    • NOTE: The transmission support insulator studs may come out of the insulator while removing the nuts.

      If required, tighten transmission support insulator studs.

      Torque: 66 lb.ft (90 Nm)

    • If the transmission support insulator studs can not be tightened, the transmission support insulator must be replaced. Refer to: Transmission Support Insulator .

    • Install new transmission support insulator nuts.

      Torque: 85 lb.ft (115 Nm)

    GFD405714Courtesy of FORD MOTOR COMPANY
  13. Install the new LH exhaust pipe-to-manifold nuts.

    Torque: 30 lb.ft (40 Nm)

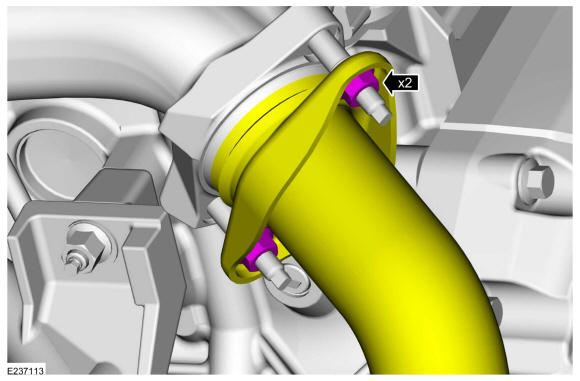

    GFD406349Courtesy of FORD MOTOR COMPANY
  14. Install the new RH exhaust pipe-to-manifold nuts.

    Torque: 30 lb.ft (40 Nm)

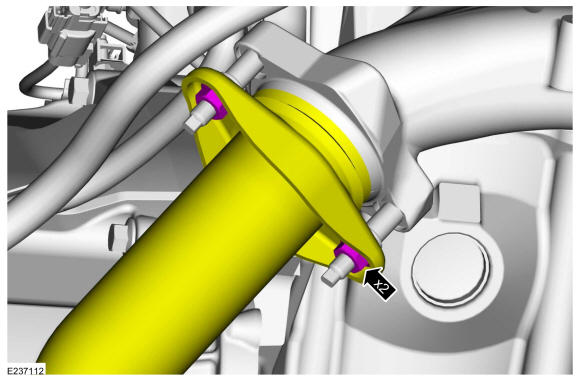

    GFD406350Courtesy of FORD MOTOR COMPANY
  15. Position the A/C compressor and install the bolts.

    Torque: 18 lb.ft (25 Nm)

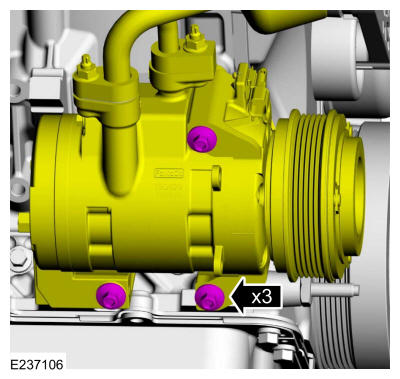

    GFD406334Courtesy of FORD MOTOR COMPANY

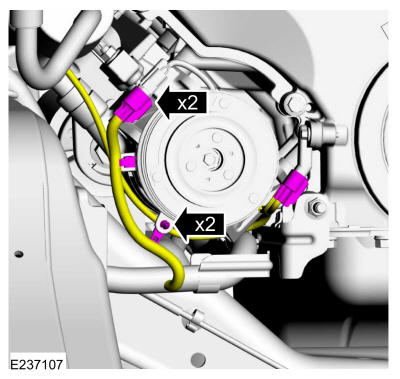

  16. Connect the CKP sensor and A/C compressor electrical connectors.

    • Attach the wiring harness retainers.

    GFD406333Courtesy of FORD MOTOR COMPANY
  17. Position the engine oil cooler and install the retainer.

    Torque: 43 lb.ft (58 Nm)

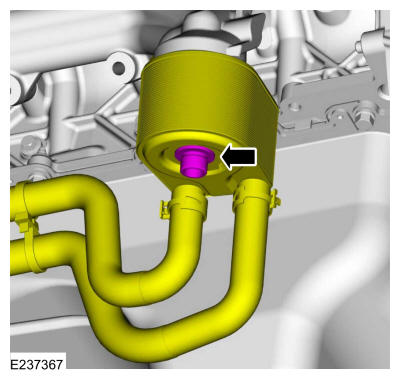

    GFD406338Courtesy of FORD MOTOR COMPANY
  18. NOTE: Lubricate the oil filter gasket with clean engine oil.

    Install a new engine oil filter.

    Torque: Stage 1: 44 lb.in (5 Nm) | Stage 2: 180 deg.

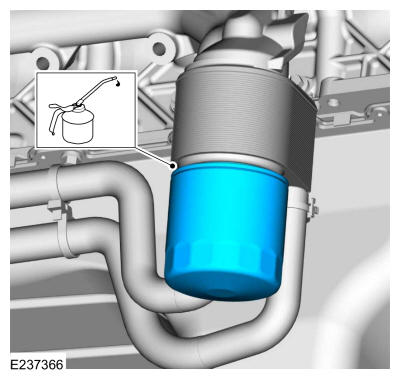

    GFD406351Courtesy of FORD MOTOR COMPANY
    • Remove the drain plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment

    • Install the drain plug.

      Torque: 17 lb.ft (23 Nm)

    GFD406352Courtesy of FORD MOTOR COMPANY

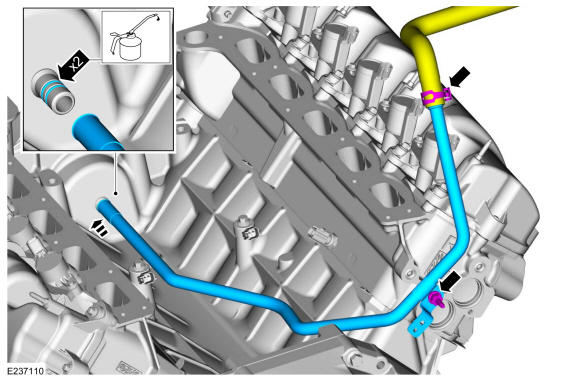

  20. NOTE: Lubricate the O-ring seals with clean engine coolant prior to installation.

    Install new O-ring seals.

    • Install the coolant tube and the bolt.

      Torque: 89 lb.in (10 Nm)

    • Connect the heater hose.

    GFD406353Courtesy of FORD MOTOR COMPANY
  21. Install the following items:

    1. Air cleaner. Refer to: Air Cleaner .
    2. Intake manifold. Refer to: Intake Manifold .
    3. Generator. Refer to: Generator - 6.8L Triton-30V - V10 .
    4. Cooling fan shroud. Refer to: Cooling Fan Shroud .

  22. Fill the engine with clean engine oil. Refer to: Specifications .

    Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    GFD406289Courtesy of FORD MOTOR COMPANY
  23. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
  24. Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling And Bleeding .
