Section 250 (Engine - 6.8L Triton-30V - V10): Installation: Engine

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-F047 Lifting Bracket, Engine
Courtesy of FORD MOTOR COMPANY	307-346 (T97T-7902-A) Retainer, Torque Converter TKIT-1998-LM (NavigatoR) TKIT-1997-F/FLM/LT
Floor Crane
Trolley Jack
Wooden Block

Materials

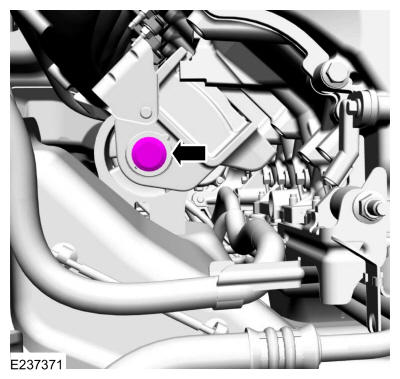

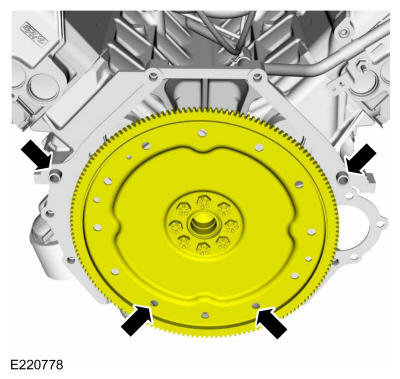

1. Rotate the flexplate to align the 2 slots at the 6 o'clock position.

   Courtesy of FORD MOTOR COMPANY

2. Remove the bolt and the special tool. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

   Courtesy of FORD MOTOR COMPANY

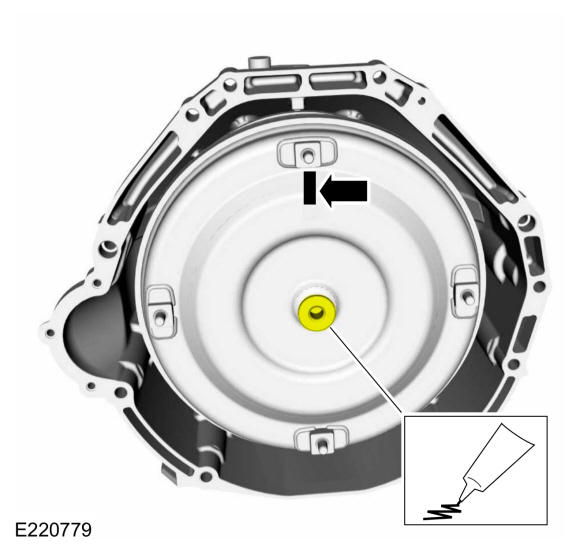

3. • Lubricate the torque converter pilot hub with multi-purpose grease.

     Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

   • Align the paint dot on the torque converter in the 12 o'clock position.

   Courtesy of FORD MOTOR COMPANY

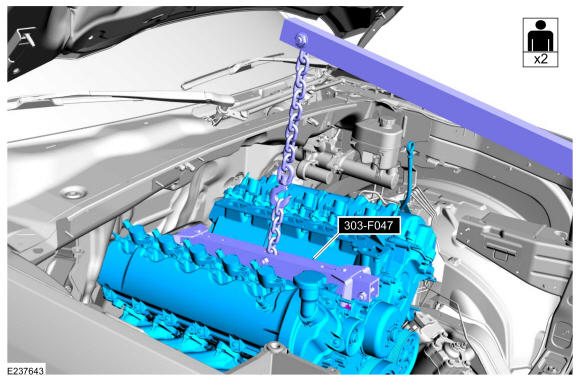

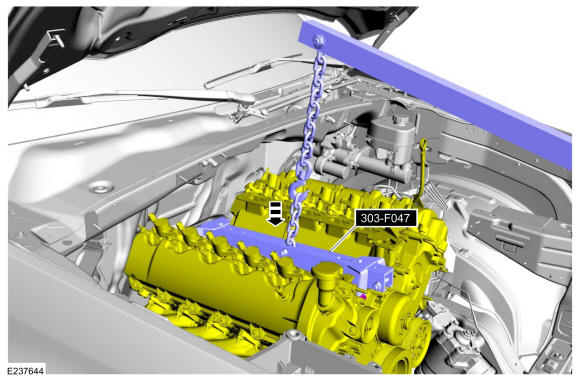

4. With the aid of an assistant, position the engine assembly into the vehicle and onto the transmission. Use Special Service Tool: 303-F047 Lifting Bracket, Engine. Use the General Equipment: Floor Crane

   Courtesy of FORD MOTOR COMPANY

5. NOTE: Do not tighten at this time.

   Install the transmission-to-engine bolts.

   Courtesy of FORD MOTOR COMPANY

6. Instal the transmission-to-engine bolts.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

7. Tighten the transmission-to-engine bolts.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

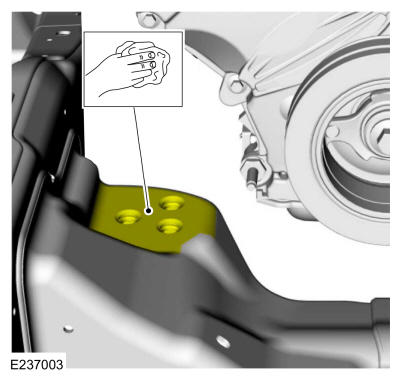

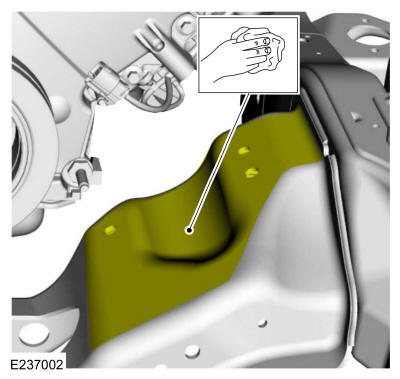

8. Clean the RH engine mount-to-frame mating surfaces of any dirt or foreign material.

   Courtesy of FORD MOTOR COMPANY

9. Install the RH engine mount.

   Courtesy of FORD MOTOR COMPANY

10. Clean the LH engine mount-to-frame mating surfaces of any dirt or foreign material.

    Courtesy of FORD MOTOR COMPANY

11. Install the LH engine support insulator.

    Courtesy of FORD MOTOR COMPANY

12. NOTE: Do not support the transmission by the fluid pan, failure to follow this instruction may result in serious damage to the transmission.

    Remove the floor jack and the block of wood. Use the General Equipment: Trolley Jack Use the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

13. Using a Floor Crane and the special tool, lower the engine onto the engine mounts.
    • Remove Special Service Tool: 303-F047 Lifting Bracket, Engine. Use the General Equipment: Floor Crane

    Courtesy of FORD MOTOR COMPANY

14. NOTE: Do not tighten the fasteners at this time.

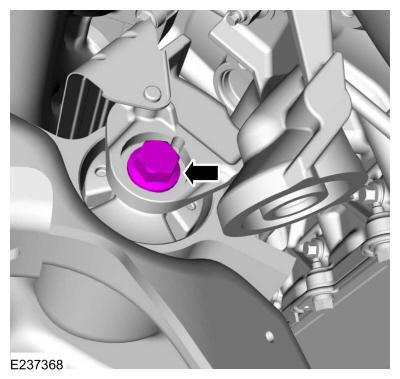

    Install the new LH mount through bolt.

    Courtesy of FORD MOTOR COMPANY

15. NOTE: Do not tighten the fasteners at this time.

    Install the new RH mount through bolt.

    Courtesy of FORD MOTOR COMPANY

16. NOTE: Only use hand tools when tightening the engine mount bolts or damage to the engine mount may occur.

    Install the new LH engine mount nuts.

    Torque: 148 lb.ft (200 Nm)

    Courtesy of FORD MOTOR COMPANY

17. NOTE: Only use hand tools when tightening the engine mount bolts or damage to the engine mount may occur.

    Install the new RH engine mount nuts.

    Torque: 148 lb.ft (200 Nm)

    Courtesy of FORD MOTOR COMPANY

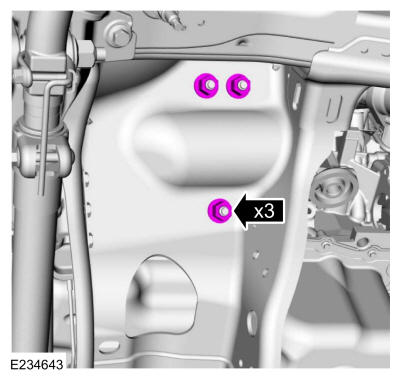

18. NOTE: Only use hand tools when tightening the engine mount nuts or damage to the engine mount may occur.

    Tighten the LH engine mount through bolt.

    Torque: 258 lb.ft (350 Nm)

    Courtesy of FORD MOTOR COMPANY

19. NOTE: Only use hand tools when tightening the engine mount nuts or damage to the engine mount may occur.

    Tighten the RH engine mount through bolt.

    Torque: 258 lb.ft (350 Nm)

    Courtesy of FORD MOTOR COMPANY

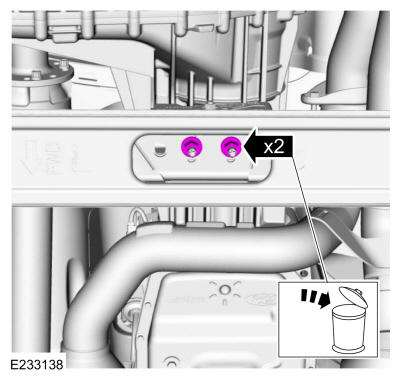

20. NOTE: The transmission support insulator-to-crossmember nuts must be discarded and new nuts installed, or damage to the vehicle or transmission support insulator may occur.

    Remove and discard the transmission support insulator nuts.

    Courtesy of FORD MOTOR COMPANY

21. • NOTE: The transmission support insulator studs may come out of the insulator while removing the nuts.

      If required, tighten transmission support insulator studs.

      Torque: 66 lb.ft (90 Nm)

    • If the transmission support insulator studs can not be tightened, the transmission support insulator must be replaced. Refer to: Transmission Support Insulator .
    • Install new transmission support insulator nuts.

      Torque: 85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

22. Position the fuel lines and bracket and install the upper transmission-to-engine bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

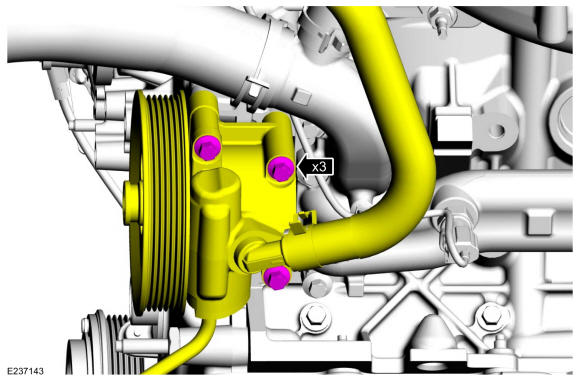

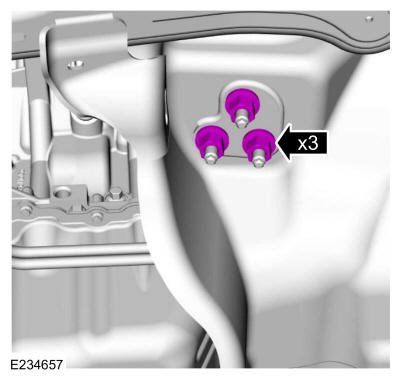

23. Position the power steering pump assembly and install the new bolts.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

24. Connect the degas bottle coolant outlet hose and the lower radiator hose.

    Courtesy of FORD MOTOR COMPANY

25. NOTE: Only rotate the crankshaft in a clockwise direction.

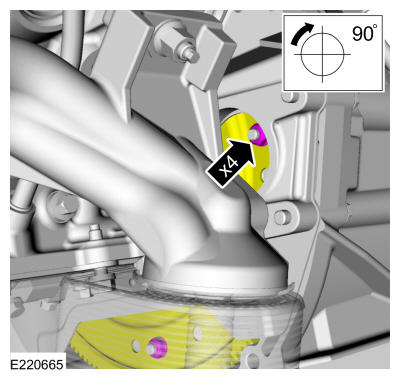

    Install the new torque converter nuts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

26. Install the torque converter nut access cover.

    Courtesy of FORD MOTOR COMPANY

27. Install the transmission inspection plate and the bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

28. • Connect the coil-on-plug electrical connectors.
    • Attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

29. • Position the wiring harness and install the nut.

      Torque: 18 lb.ft (25 Nm)

    • Attach the wiring harness retainers.
    • Connect the CMP sensor electrical connector.

    Courtesy of FORD MOTOR COMPANY

30. Attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

31. Position the ground strap and install the bolt on the rear of the LH cylinder head.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

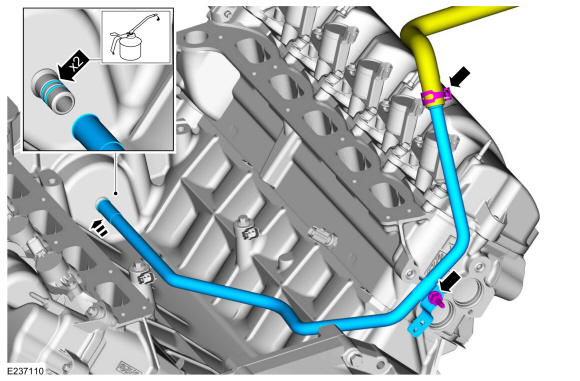

32. NOTE: Lubricate the O-ring seals with clean engine coolant prior to installation.

    Install new O-ring seals.

    • Install the coolant tube and the bolt.

      Torque: 89 lb.in (10 Nm)

    • Connect the heater hose.

    Courtesy of FORD MOTOR COMPANY

33. • Position the ground strap and install the bolt on the rear of the RH cylinder head.

      Torque: 89 lb.in (10 Nm)

    • Attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

34. Install the following items:
    1. Cowl panel. Refer to: Cowl Panel .
    2. Transmission filler tube. Refer to: Transmission Filler Tube - 6.2L V8/6.8L Triton-30V - V10 .
    3. Starter motor. Refer to: Starter Motor .
    4. Oil cooler. Refer to: Oil Cooler .
    5. Exhaust Y-pipe. Refer to: Exhaust Y-Pipe .
    6. Coolant crossover manifold. Refer to: Coolant Crossover Manifold .
    7. NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris if found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

       Intake manifold. Refer to: Intake Manifold .

    8. Generator. Refer to: Generator - 6.8L Triton-30V - V10 .
    9. A/C compressor. Refer to: Air Conditioning (A/C) Compressor - 6.8L Triton-30V - V10 .
    10. Accessory drive belt. Refer to: Accessory Drive Belt .
    11. Cooling fan. Refer to: Cooling Fan .
    12. Cooling module. Refer to: Cooling Module .

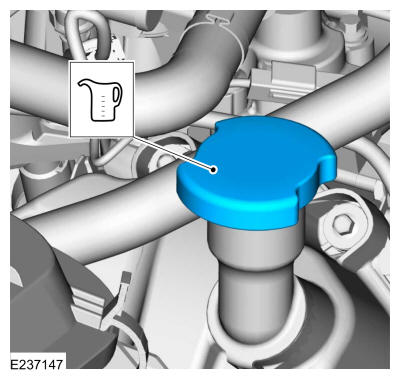

35. Fill the engine with clean engine oil. Refer to: Specifications .

    Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    Courtesy of FORD MOTOR COMPANY

36. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
37. Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling And Bleeding .
38. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
