Starter Motor: Removal

WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

WARNING: Always disconnect the battery ground cable at the battery before disconnecting the starter motor battery terminal lead. If a tool is shorted at the starter motor battery terminal, the tool can quickly heat enough to cause a skin burn. Failure to follow this instruction may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Disconnect the battery. Refer to: Battery Disconnect and Connect .

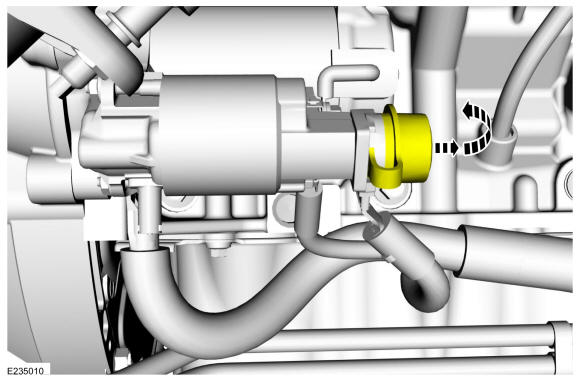

Open the starter motor solenoid battery cable cover.

Courtesy of FORD MOTOR COMPANY

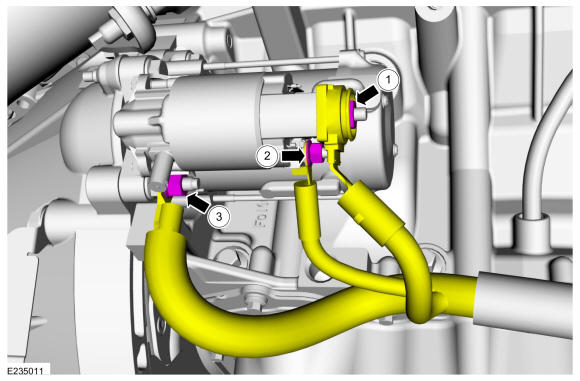

1. Remove the nut and disconnect the starter motor solenoid battery cable.
  Torque: 106 lb.in (12 Nm)
2. Remove the nut and disconnect the starter motor solenoid control wire.
  Torque: 53 lb.in (6 Nm)
3. Remove the nut and disconnect the ground cable.
  Torque: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY

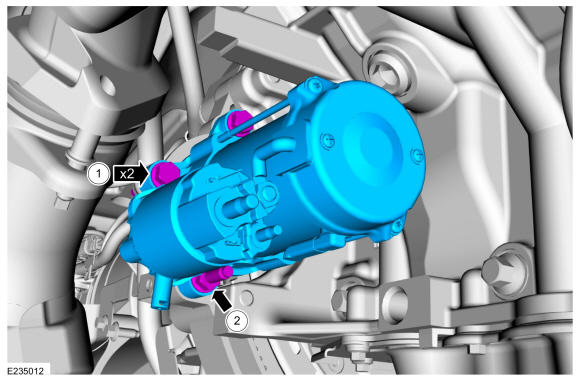

1. Remove the bolts.
  Torque: 18 lb.ft (25 Nm)
2. Remove the studbolt and the starter motor.
  Torque: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY
Inspect the starter motor drive gear and the flywheel/flexplate ring gear. Refer to: Starter Motor Drive Gear and Flywheel Ring Gear Inspection .
