Fuel Tank Draining
WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
Special Tool(s) / General Equipment
| 292-00004 Fuel Tanker 100 GPM | |
|---|---|
Draining
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Disconnect the negative battery cable. Refer to: Battery Disconnect and Connect .
-
NOTE: Typical application shown.

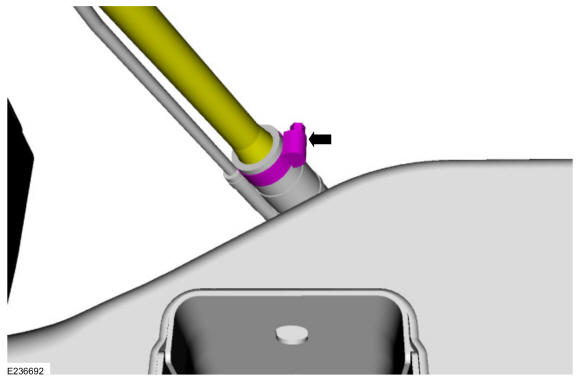

Loosen the clamp and disconnect the hose. Position the hose aside.
-
NOTE: Typical application shown.

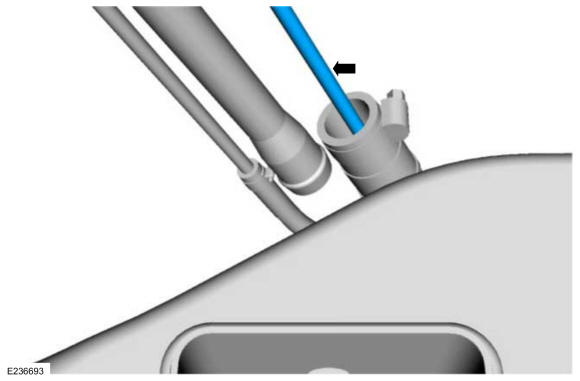

Insert the hose from the fuel storage tanker and siphon the fuel through the hose. Use Special Service Tool: 292-00004 Fuel Tanker 100 GPM.
